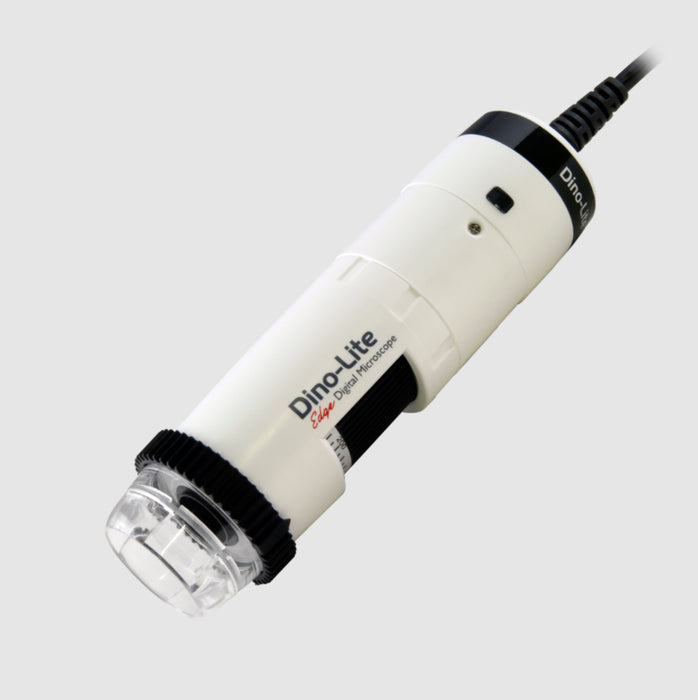

Dino-Lite AF4515ZTW

Name: Dino-Lite AF4515ZTW
Brand: Dino-Lite
SKU: AF4515ZTW
Price: 1,195.00 AUD
Availability: InStock

by Dino-Lite

$1,195.00

Quantity

Suitable for macroscopic applications, Dino-Lite 1.3 MP AF4115ZTW provides a wide-angle view of the target with a 10-50x magnification rate. AF4115ZTW can connect to Wi-Fi streamer WF-20 and provide wireless transmission of images and videos.

This model is wireless-ready but requires the WF-20 adapter for wireless functionality.

Model	AF4515ZTW Dino-Lite Edge
Interface	USB 2.0
Product Resolution	1.3M pixels (1280x1024)
Magnification	20x~50x
Frame Rate	15fps in 1.3MP, MJPEG 30fps in VGA, MJPEG
Lighting	8 white LEDs
Microtouch	Yes
Operating System Supported	Windows 10, 8, 7, Vista, XP Mac OS 10.10 or later
Calibration Function	Yes
Measurement Function	Yes
Unit Dimension	11.4cm (H) x 3.3cm (D)

1.3 Megapixels
Thanks to the MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 1280x1024.

Adaptable interface
Attach Wi-Fi streamer WF-20, and transform the Dino-Lite into a wireless digital microscope.

Wide Field of View (WFOV)
This significant feature is specially designed to provide large FOV at a reasonable working distance while keeping crisp image over the whole image for macro-view observation.

Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control of the four LED quadrants in addition to the 6-levels intensity adjustment capability.

Adjustable polarizer
The built-in adjustable polarizer allows to remove freely the unwanted reflection or glare from the object surface for a better contrast.

Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

Interchangeable caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.

Interchangeable front caps
The interchangeable front caps are designed to be used with Dino-Lite Edge and Edge^PLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

	N3C-C / Close Cap This cap protects the lens and LED lights from contamination of dust, debris, or moisture.
	N3C-D / Diffuser Cap This is a translucent cap that partially softens the LED light.
	N3C-D2 / Opal Diffuser Cap This cap softens and evenly distributes the LED light.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-L / Long Cap (30mm length) This cap assists users to find focus quickly at low magnification when it touches surface.
	N3C-O / Open Cap (9.5mm length) This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
	N3C-S / Sidelight Cap Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Note:
The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.

Information about working distance and field of view

T Zone
M	WD	FOV (x)	FOV (y)	DOF
50	14	9	7	3
40	42	11	9	5
30	64	15	12	9
20	119	23	19	21
15	182	30	24	39

W Zone
M	WD	FOV (x)	FOV (y)	DOF
30	11	14	11	6
20	25	25	20	13
15	39	31	25	22
10	68	41	33	51
5	156	98	78	250

M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
