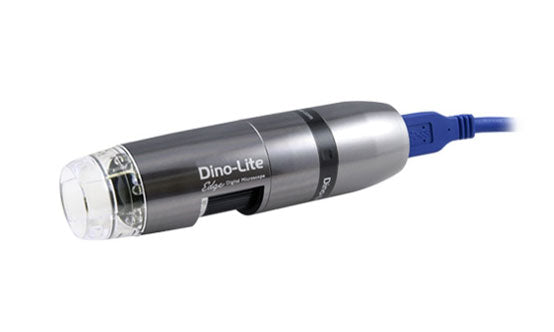

Dino-Lite AM73115MTF

by Dino-Lite

Designed to offer extra-long working distance, the Dino-Lite Edge 3.0 AM73115MTF offers a minimum viewing distance of 115mm at maximum 70X magnification. With USB 3.0 interface, it delivers superior fluid and uncompressed image with 15fps at 5MP or 45fps at 1.3MP resolutions.

  Extra-long Working Distance
With Edge optics quality, the ELWD lens reveals minute details with minimum 115mm working distance at maximum magnification of 70X, making it well-suited for observation requiring ample space between microscope and object.
  High-Speed transmission
Through the use of USB 3.0 interface, the device is capable to obtain smooth and high-quality image at up to 15 FPS at 2560x1920 or 45 FPS at 1280x960.
  High optical resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
  5.0 Megapixels
The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2560x1920 without compression.
  Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.
  Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
  Robust housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.
  Interchangeable front caps

  N3C-O / Open Cap
  This is the standard cap for normal usage.

  Information about working distance and field of view
M WD FOV (x) FOV (y) DOF
10 480 39.0 31.2 10.6
20 263 19.5 15.6 4.85
30 186 13.0 10.4 1.85
40 152 9.8 7.8 1.24
50 132 7.8 6.2 0.93
60 121 6.5 5.2 0.73
70 115 5.6 4.5 0.53

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm


Model AM73115MTF Dino-Lite Edge 3.0
Interface USB 3.0
Product Resolution 5M pixels (2560×1920)
Magnification 10x~70x
Frame Rate 15fps at 5MP, YUY2 (USB 3.0)
45fps at 1.3MP, YUY2 (USB 3.0)15fps at 1.3MP, YUY2 (USB 2.0)
Lighting 8 white LEDs
Microtouch Yes
Operating System Supported Windows 10, 8, 7
Mac OS 10.9 or later
System Requirements ‧ Intel® Core™ i5 3.2GHz
‧ 20GB available HD space
‧ 8GB available RAM or more
‧ 2GB video card or more
‧ CD-ROM drive for installation
‧ USB 3.0 with intel chipset
Calibration Function Yes
Measurement Function Yes
Unit Dimension 11.9cm (H) x 3.3cm (D)
Unit Weight 110g
