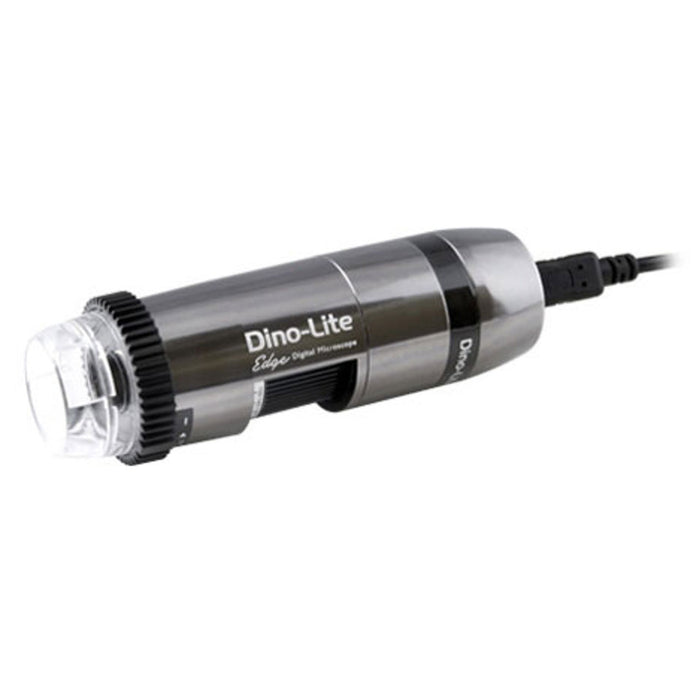

Dino-Lite AM4917MZT4
by Dino-Lite
As magnification increases, targets with uneven surfaces are often out of focus due to the limited depth of field. AM4917MZT4 400x digital microscope eases focusing with its click-to-focus functionality and can generate focused-stacked images with EDOF. Delivering superior images, equipped with a polarizer, and featuring EDOF, DPQ, AMR, and EDR, AM4917MZT4 is a quality imaging tool ready for a wide range of applications.
Note: EDOF, EDR, and DPQ are available on Windows PC only.
|
|
 |
|
1.3 Megapixels
Thanks to the MJPEG compression, the advanced CMOS image sensor can transmit fluid and crisp images at 30 fps with resolution up to 1280 x 960.
|
|
| |
 |
|
Extended Depth of Field (EDOF)
Viewing rough surfaces with height ranges out of depth of focus, EDOF can take several images at different focuses and stack them automatically within a click.
|
|
| |
 |
|
Depth Acquisition (DPQ)
The delicate focus control of this model allows for the acquisition of more useful depth information.
|
|
| |
 |
|
Enhanced Flexible LED Control (eFLC)
Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with a 32-level light intensity adjustment.
|
|
| |
 |
|
Extended Dynamic Range (EDR)
Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.
|
|
| |
 |
|
Automatic Magnification Reading (AMR)
Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.
|
|
| |
 |
|
Adjustable Polarizer
The built-in adjustable polarizer removes the unwanted reflection or glare from the object's surface for better contrast.
|
|
| |
 |
|
Robust Metallic Housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interferences.
|
|
| |
 |
|
Scroll Lock
For tasks requiring a fixed magnification position for long periods, lock the focus knob, and avoid any unintentional focus shift.
|
|
| |
|
|
Interchangeable Front Caps
The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.
 |
N3C-C / Close Cap
This cap protects the lens and LED lights from contamination of dust, debris, or moisture. |
 |
N3C-E / Extended Open Cap (12.5 mm length)
This 12.5 mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
|
 |
N3C-O / Open Cap (9.5 mm length)
This 9.5 mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
|
|
Note:
The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.
|
|
| |
|
|
Information about working distance and field of view
| M |
WD |
FOV (x) |
FOV (y) |
DOF |
| 400 |
5.68 |
0.977 |
0.732 |
0.041 |
| 410 |
6.63 |
0.953 |
0.715 |
0.040 |
| 420 |
7.59 |
0.930 |
0.698 |
0.039 |
| 430 |
8.55 |
0.909 |
0.681 |
0.038 |
| 440 |
9.51 |
0.888 |
0.666 |
0.038 |
| 450 |
9.62 |
0.868 |
0.651 |
0.037 |
| 460 |
9.56 |
0.849 |
0.637 |
0.036 |
| 470 |
9.50 |
0.831 |
0.623 |
0.036 |
|
M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
|
|
| |
| Model |
AM4917MZT4 Dino-Lite EdgePLUS
|
| Interface |
USB 2.0 |
| Product Resolution |
1.3 MP (1280 x 960) |
| Magnification |
400x ~ 470x |
| Frame Rate |
30 fps in 1.3 MP, MJPEG
30 fps in VGA, MJPEG
|
| Saving Format |
Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG
Video:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
|
| Lighting |
8 white LEDs |
| Microtouch |
Yes |
| Operating System Supported |
Windows 7/8/10/11
macOS 10.14 or later (EDOF/EDR/DPQ are NOT controllable on macOS) |
| Calibration Function |
Yes |
| Measurement Function |
Yes |
| Unit Dimension |
10.7 cm (H) x 3.3 cm (D) |
| Unit Weight |
130 g |
