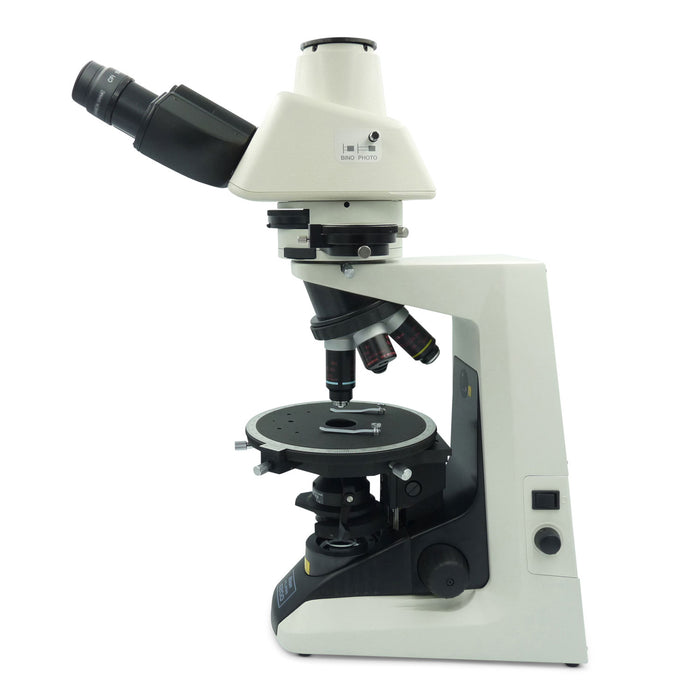

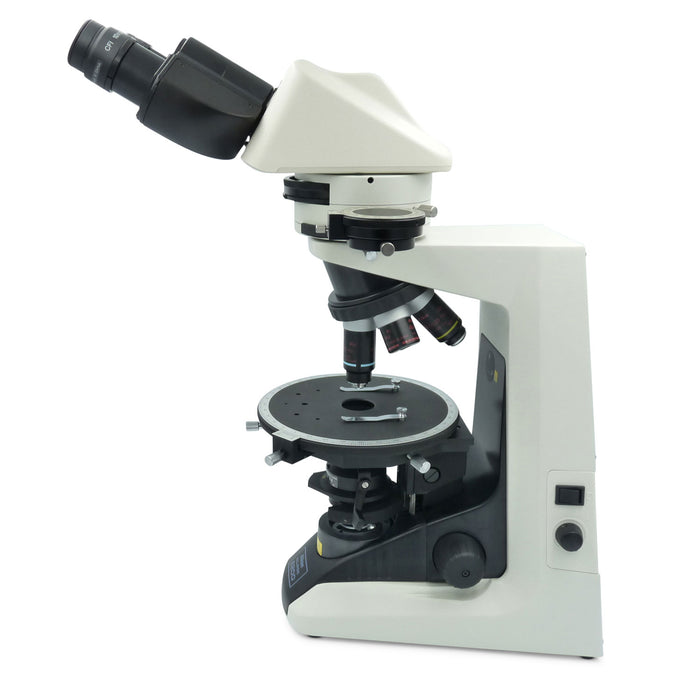

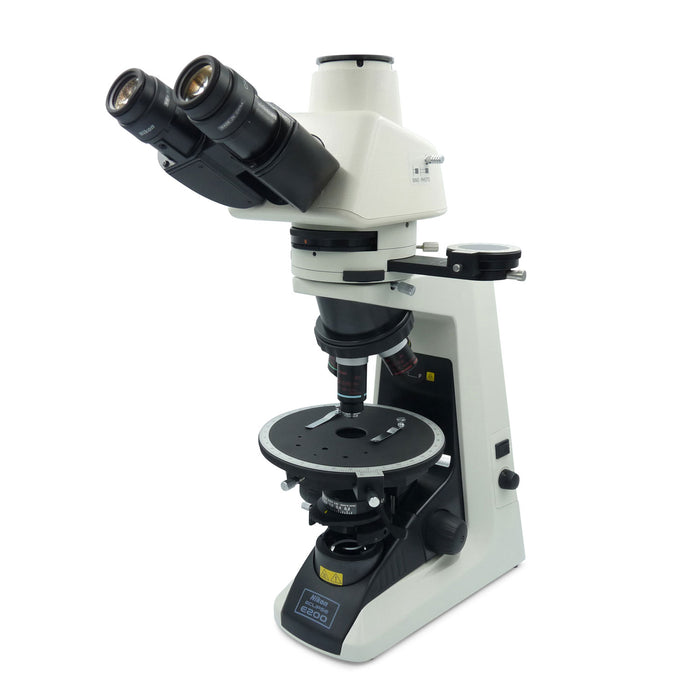

Nikon Eclipse E-200 POL

by Polarizing
$7,995.00

SPECIFICATIONS

Optical System:  CFI60 infiinity optics
Magnification:  40-1500x for observation; 8-500x for 35mm photomicrography
Eyepiece Lens:  10x (F.O.V.: 22mm): CM type with 90 crosshair and micrometer scale
Eyepiece Tube:

 Binocular P-TB or Trinocular P-TT dedicated for polarizing microscopy

Intermediate tube:  Built-in focusable Bertrand lens and analyzer removable from optical path; Conoscopic/Orthoscopic observations switchable; Built-in analyzer: with plate/compensator slot
Analyzer:  360° rotary dial: Minimum reading angle 0.1
Nosepiece:  Quadruple nosepiece fixed to main body
Coarse/fine focusing:  Fine: 0.2mm per rotation; Coarse: 37.7mm per rotation; Minimum reading: 2µm on left-side fine control knob: Coarse motion torque adjustable; Refocusing system incorporated in stage; Stage handle and focusing knob equidistant from operator
Illumination:  6V/30W halogen lamp precentered and prefocused; Continuously variable intensity control
Objective Lens:  CFI P Achromat 4x, 10x, 20x, 40x, 100x oil for episcopic illuminator
Episcopic Illuminator:  Dedicated
Condenser:  Dedicated strain-free swing-out type
Polarizer:  Fixed-type on bottom of condenser

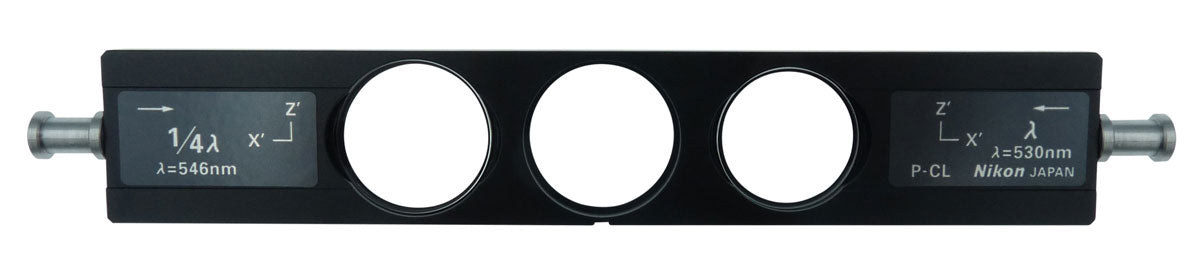

1/4 Lambda Plate Included
Compensator:  Standard 1/4 wave and tint plate: Quartz wedge or Senarmont compensator can be inserted into intermediate slot

A cost-efficient polarizing microscope incorporating exclusive Nikon CFI60 infinity optics.

Ideal as an educational microscope or for routine laboratory use for biology, geology and industry, the Eclipse E200 POL incorporates Nikon's acclaimed CFI60 infinity optical system to provide a high quality, compact and easy-to-use polarizing microscope at a modest price. Because the E200 POL's design is based on the Eclipse E200 biological microscope, it shares the same objectives and uses many of the accessories created for higher-grade Eclipse series microscopes, enabling more advanced polarizing microscopy.

KEY FEATURES

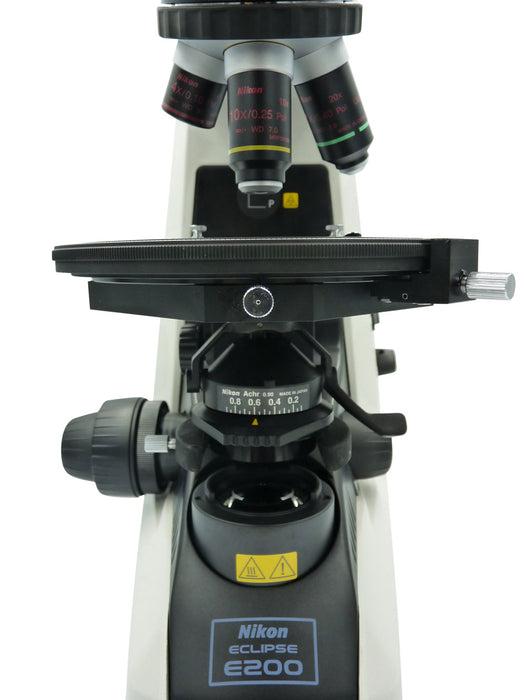

Refocusing Stage

Refocusing Stage

The unique Refocusing Stage makes specimen handling quicker and easier. The stage can be instantly dropped, just by pushing it down, to exchange specimens or oil the slide. It returns to the original position as soon as the hand is removed.

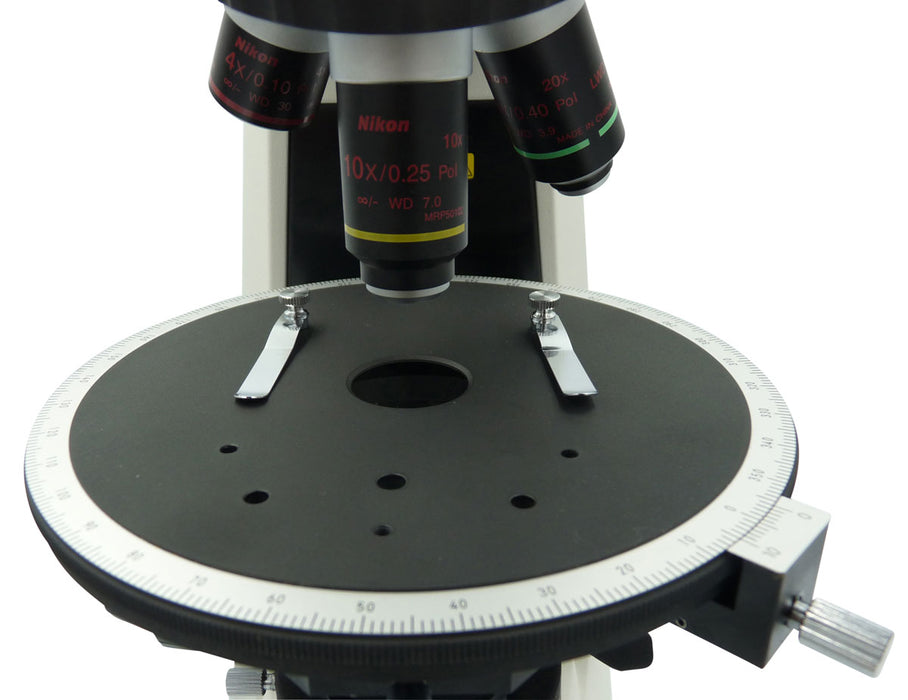

Reverse Type Nosepiece

Reverse Type Nosepiece

The reversed-type quadruple nosepiece provides more space at the front of the stage to make handling of specimen slides fast and easy. Another advantage of CFI60 objectives is that their increased objective lengths and longer working distances provide more working space around the nosepiece to exchange specimens or oil the slide.


Easy Lamp Replacement

Lamp

The microscope comes with a unique top-access 6V/20W halogen illuminator. Simply slide open the lens-unit cover to replace the lamp.


CFI60 Infinity Optical System

CFI60 Optics

The CFI60 optical system combines Nikon's renowned CF optical design with infinity corrected optics to overcome the limitations of the traditional infinity design. CFI60 optics provide longer working distances and higher NA's to deliver startlingly clear images at any magnification because chromatic aberrations are corrected over the entire field of view.


Robust, Vibration Resistant Construction

A solid one-piece casting from arm to base, plus a substantial 188.5mm width, provides greater rigidity and resistance to vibrations. The E200 POL is a synthesis of great Nikon optics and solid, vibration-resistant construction


Conoscopic Observation

The intermediate tube with a Bertrand lens lets you observe conoscopic images. This feature is perfect for uniaxial or biaxial crystal identification, or for evaluation of other optical qualities such as optical signs.


Photomicrography Capabilities

Photomicrographic systems can be mounted on the trinocular eyepiece tube to add documentation to your system. This system is easier to use than ever before, featuring auto exposure, 1% spot, and 35% integrated average metering and user-friendly simple controls built into the main unit.


L-IM Epi Illuminator

Incorporating a 12V/50W lamphouse, this new epi-illuminator provides more than sufficient brightness for reflected light polarizing applications.


Filters

The daylight-type blue filter assures correct color rendition required for sample evaluation, while the GIF filter is used for retardation measurements and contrast adjustment.
