Choosing a microscope for industrial inspection

When we think of microscopes, we usually picture them in research laboratories. However, they also play a crucial role in quality control and industrial manufacturing.

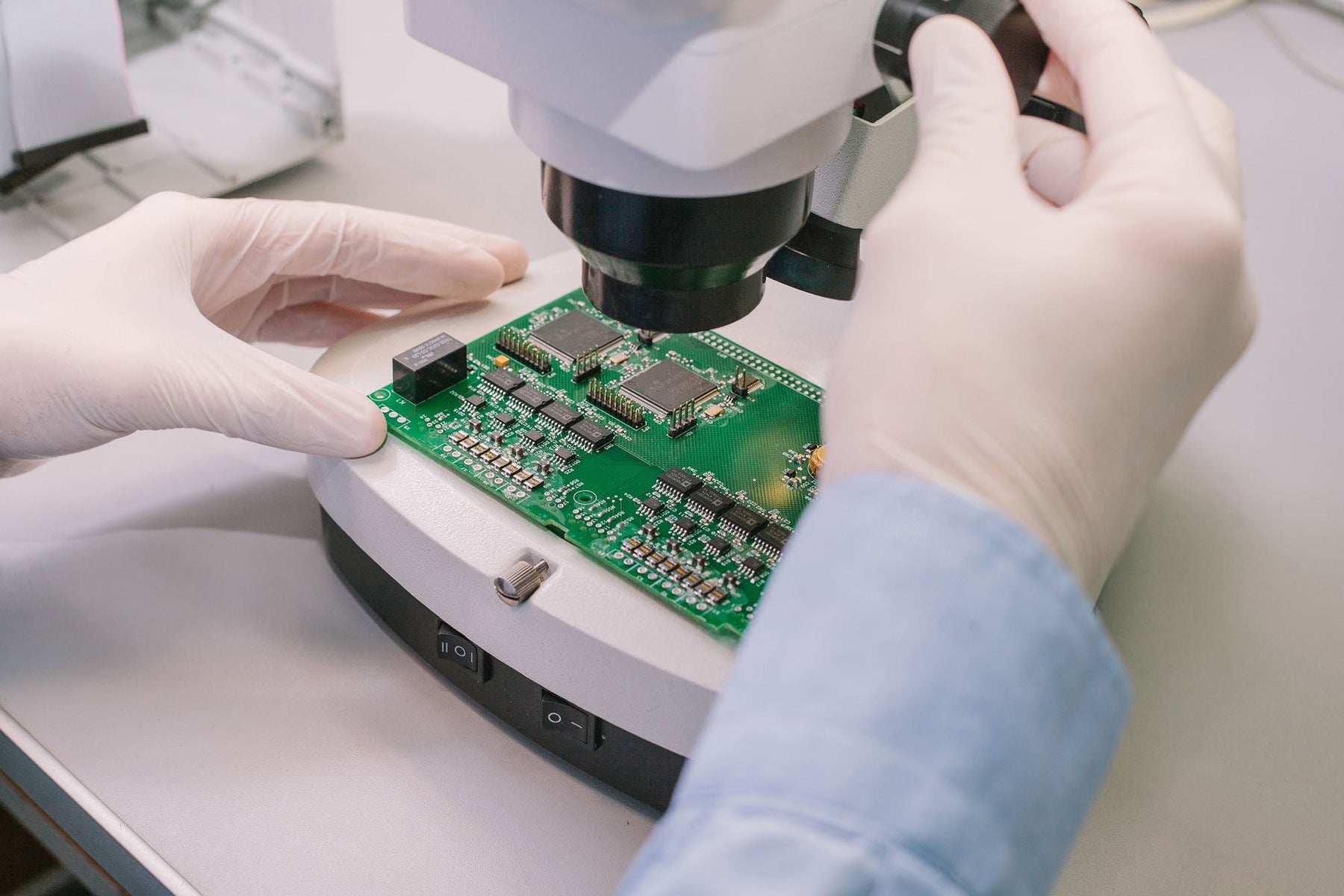

Thanks to their user-friendly operation, high resolution, and adaptable magnification, microscopes are indispensable tools for industrial inspections. Whether you’re scrutinizing electronics or manufactured components, a high-quality stereo inspection microscope can be a game-changer.

However, there are many different models to choose from, so it’s essential to know which features to look for.

Here’s a quick overview of the most important qualities to consider when choosing a microscope for industrial inspection.

Magnification matters

Magnification is the heart of any microscope, and bigger isn’t always better. You need the right magnification for the specific job.

Fortunately, inspection microscopes offer a variety of magnification ranges, so you can find one that perfectly suits your needs.

Some models come with pre-set magnifications, while others provide the flexibility to adjust magnifications within a predefined range. In some cases, attaching a Barlow lens can further expand your magnification options.

The choice of magnification should align with your inspection requirements. If your work involves both a close examination of details and a broader overview, a microscope with a wider magnification range may be the ideal choice. Conversely, if you anticipate consistently using a specific magnification level, a broader range may not be necessary.

Moreover, for tasks requiring fine-detail observation at higher magnifications, ensure that the microscope has enough resolution to distinguish those intricate features.

Working distance – the space you need

The working distance refers to the distance between the microscope lens and its focal point – where your inspection target sits.

Essentially, it’s how much space you’ll have to handle or modify what you’re working on, while still keeping it in sharp focus.

Consider your needs carefully – If you’re working with larger components or anticipate tasks involving soldering, repairs or modifications, you’ll require ample room to comfortably fit your sample components and tools beneath the microscope.

It’s crucial to remember that the working distance is an inherent property of the optical system and cannot be altered without attaching a Barlow lens. Therefore, determining your space requirements in advance is vital.

 Flexibility and workspace

Inspection microscopes come in two main configurations: they can either be stationary on a desk or mounted on a flexible swing or articulating arm.

Opting for a microscope on flexible arms presents several advantages:

• Vertical and horizontal mobility. Easily move your microscope vertically or across your workspace, allowing you to inspect tall or wide components.
• Versatile observation angles. Observe your target from almost any angle, for a more thorough inspection.
• Space efficiency. Ideal for limited desk space environments, where you can conveniently swing the microscope out of the way when not in use.

Illumination – shedding light on the details

Good lighting is essential for accurate inspections. Ideally, your microscope illumination setup should provide uniform lighting across the observable area while offering sufficient contrast to discern intricate details.

Different lighting arrangements possess distinct advantages and drawbacks, so it’s imperative to match your lighting choice with your specific inspection tasks. For example, reflective components are best examined under polarizing ring lights or diffuse illumination to minimise glare. Flexible gooseneck LEDs or external lighting sources can give you a better look at irregular or 3D surfaces.

A bit of research into your illumination needs will allow you to get the best out of your inspection microscope.

If you keep these factors in mind, you’ll be able to find the right microscope for your needs.
