Dino-Lite Function HDR/EDR imaging explained

When you snap a photo, your camera captures a range of light and dark tones.

The ratio of light to dark that it can capably capture is known the dynamic range, and it determines how much detail you can see in both the brightest and darkest parts of an image.

While most cameras do well with either bright highlights or deep shadows, they often struggle to handle both extremes at the same time.

This is especially true in specialised fields within microscopy, where reflective or unevenly lit samples can make capturing details a challenge.

Enter HDR/EDR imaging – a game-changing solution for producing perfectly balanced images.

What is HDR/EDR?

HDR (high dynamic range) or EDR (extended dynamic range) is a digital technique that artificially expands a camera’s dynamic range.

It allows you to capture images where every part – whether brightly lit or shadowed – is rich in detail. This feature is often built into advanced microscope cameras, like the Dino-Lite AF7915MZT, making it easier to examine high-contrast samples.

How does HDR/EDR work?

Imagine trying to photograph something with both dazzling highlights and deep shadows. If you lower the exposure to capture the bright areas, the shadows become pitch black. Increase the exposure, and the bright areas turn into featureless white blobs.

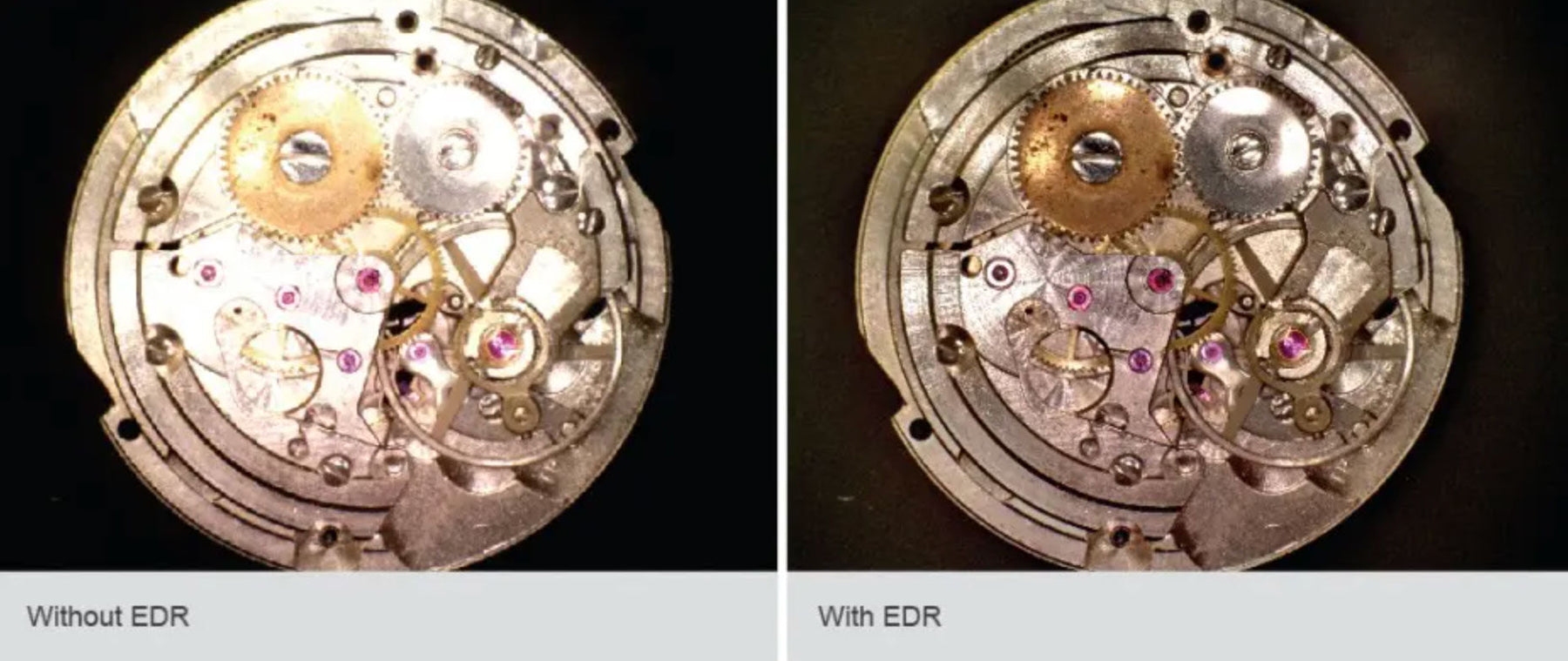

The solution? HDR/EDR combines multiple exposures into one perfectly exposed image.

Here’s how it works:

1.      The camera takes three photos in quick succession:

·        one at normal exposure

·        one underexposed (to capture bright details)

·        one overexposed (to bring out shadow details).

2.      These photos are digitally merged into a single image that showcases all the details, no matter how bright or dark.

This process ensures that no detail is lost, even in tricky lighting conditions.

When should you use HDR/EDR?

HDR/EDR imaging is an invaluable tool for situations where the difference between light and dark areas in your sample is extreme. Here are some practical scenarios where HDR/EDR shines:

·                Industrial inspection: Reflective surfaces like metals or plastics can create harsh glares that obscure details. Portable microscopes such as the Dino-Lite AF7915MZT, equipped with HDR/EDR functionality, are perfect for inspections whether on-site or in-house.

·                Biological specimens: Larger samples like insects often have areas that vary greatly in thickness and transparency. HDR ensures that darker sections remain visible while preventing thinner, translucent areas from blending into the background light.

·                Fluorescence imaging: Fluorescence microscopy often involves imaging variably bright fluorescent signals against a dark background. HDR can be needed to capture the full range of light intensity on display.

If you encounter samples with uneven lighting or high contrast, investing in a microscope or camera with HDR/EDR capabilities – like the Dino-Lite EDR range – can make all the difference in capturing balanced, detailed images.
