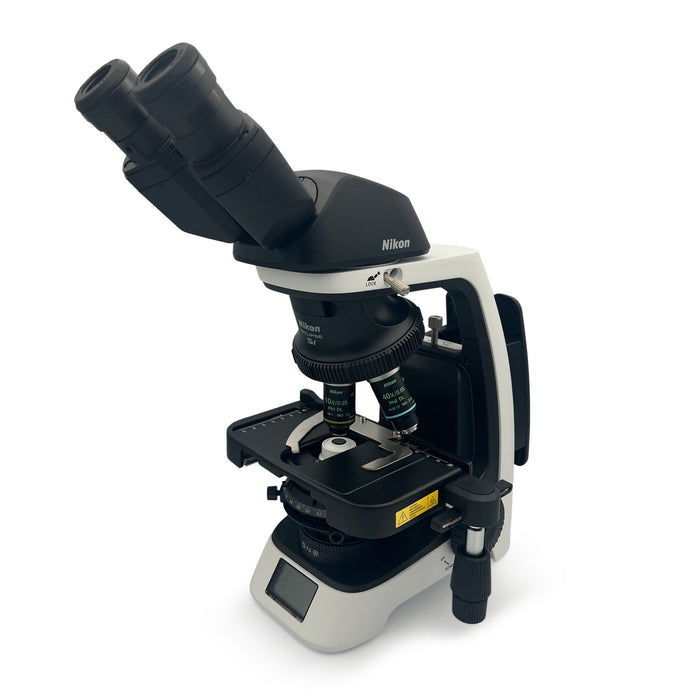

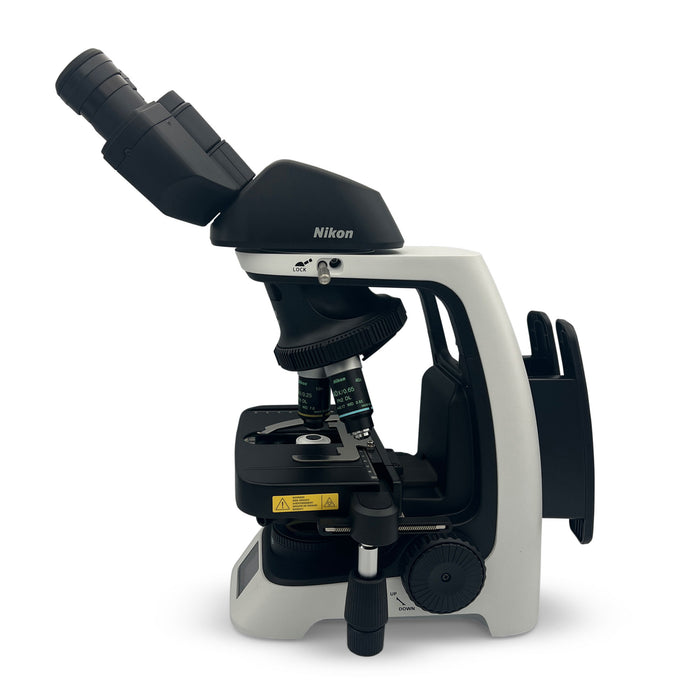

Nikon Eclipse Si Microscope for Asbestos Fibre Counting
Nikon Si Phase Contrast Microscope includes a phase contrast slider kit, a Walton & Beckett graticule, and a centering phase telescope with built-in LED illumination. Suitable for asbestos fiber counting applications.
Asbestos Fibre Counting Phase Contrast Microscopy
Phase contrast microscopy is the method that is primarily used for estimating asbestos concentrations of airborne fibers. This method is quick and can be performed on-site for a rapid determination of concentrations of asbestos fibers in the air. Phase contrast microscopy does not positively differentiate between asbestos and other fibers.
Required Microscope Equipment
Phase contrast microscope with 10X and 40X Phase objectives, GIF (Green Interference Filter), Walton & Beckett reticle eyepiece micrometre type G22/27mm (YKS27) Walton and Beckett G22 Eyepiece Reticle 3:1 ratio (27mm Diameter)
Please NOTE:
S84 HSE/NPL Band 5 Test Slide is NOT included with this microscope; you may purchase this separately if required. More info….
Nikon Eclipse Si LED custom configuration includes the following:
- Nikon Eclipse Si LED Main Body
- Binocular Head

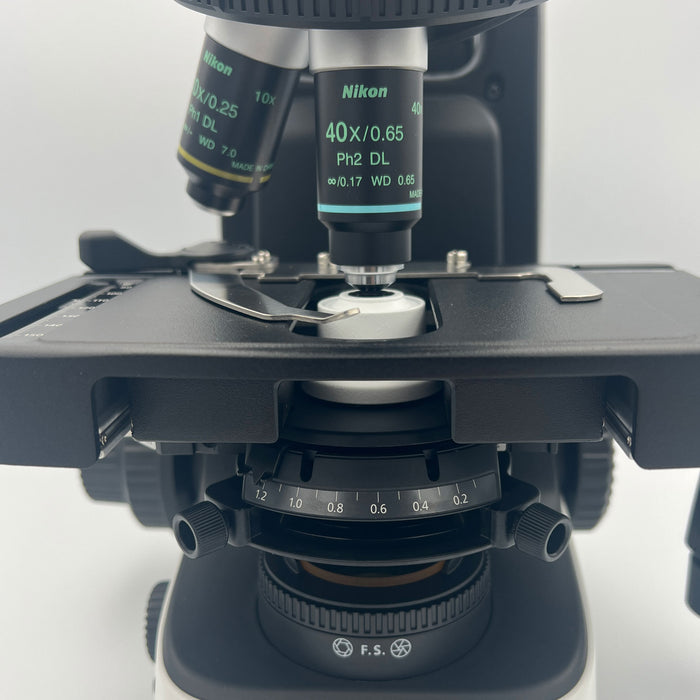

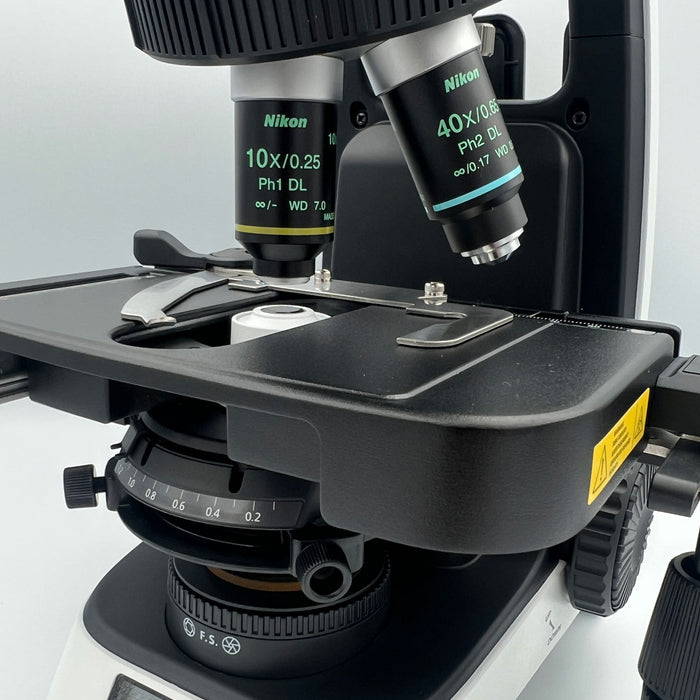

- CFI Achromat Phase Objective Ph1 DL 10x N.A 0.25. W.D. 7.0
- CFI Achromat Phase Objective Ph2 DL 40x N.A 0.65. W.D. 0.65
- Pair CFI E 10X Eyepieces (FOV 20mm)
- S-PH1 Slider for Phase 10x & 40x

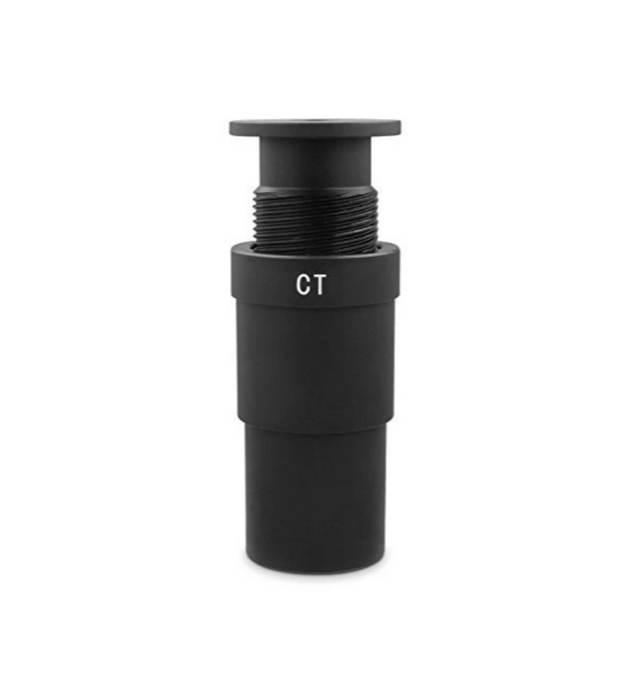

- C-CT Centering Telescope
- Filter 45mm GIF (Green Interface)

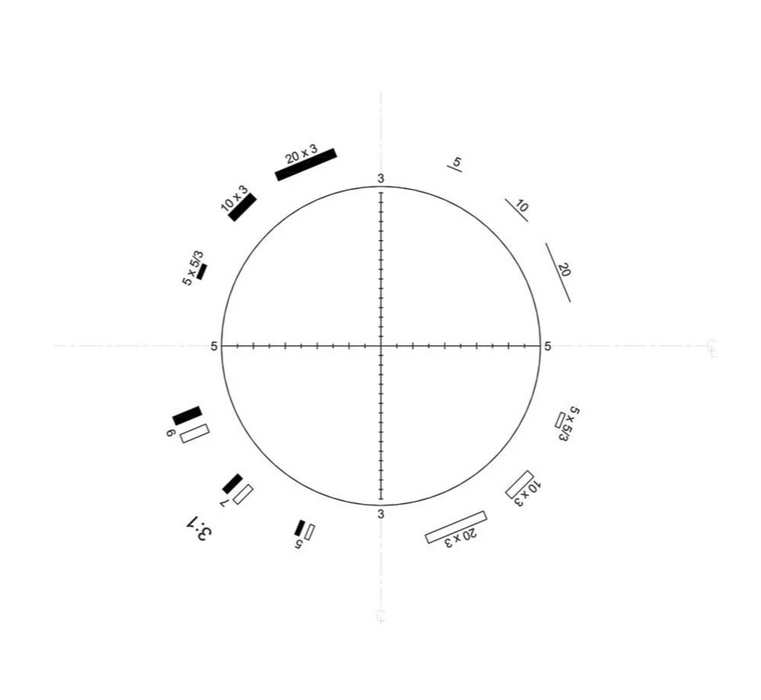

- Walton & Beckett reticle eyepiece micrometre type G22/27 mm (YKS27)
- S84 HSE/NPL Band 5 Test Slide is NOT included with this microscope, you may purchase this separately.
