How to mount a microscope camera over the eyepiece

Attaching a camera to your microscope is an excellent way to capture and share your observations.

However, there isn’t a single method that works for every type of microscope, so it’s important to know what you need before you begin.

Understanding microscopes and adapters

Microscopes generally fall into 2 categories: those equipped with a camera port (known as trinocular microscopes), and those without (binocular or monocular).

A camera port is simply a dedicated eyepiece designed for attaching cameras, including those that use a C-mount adapter.

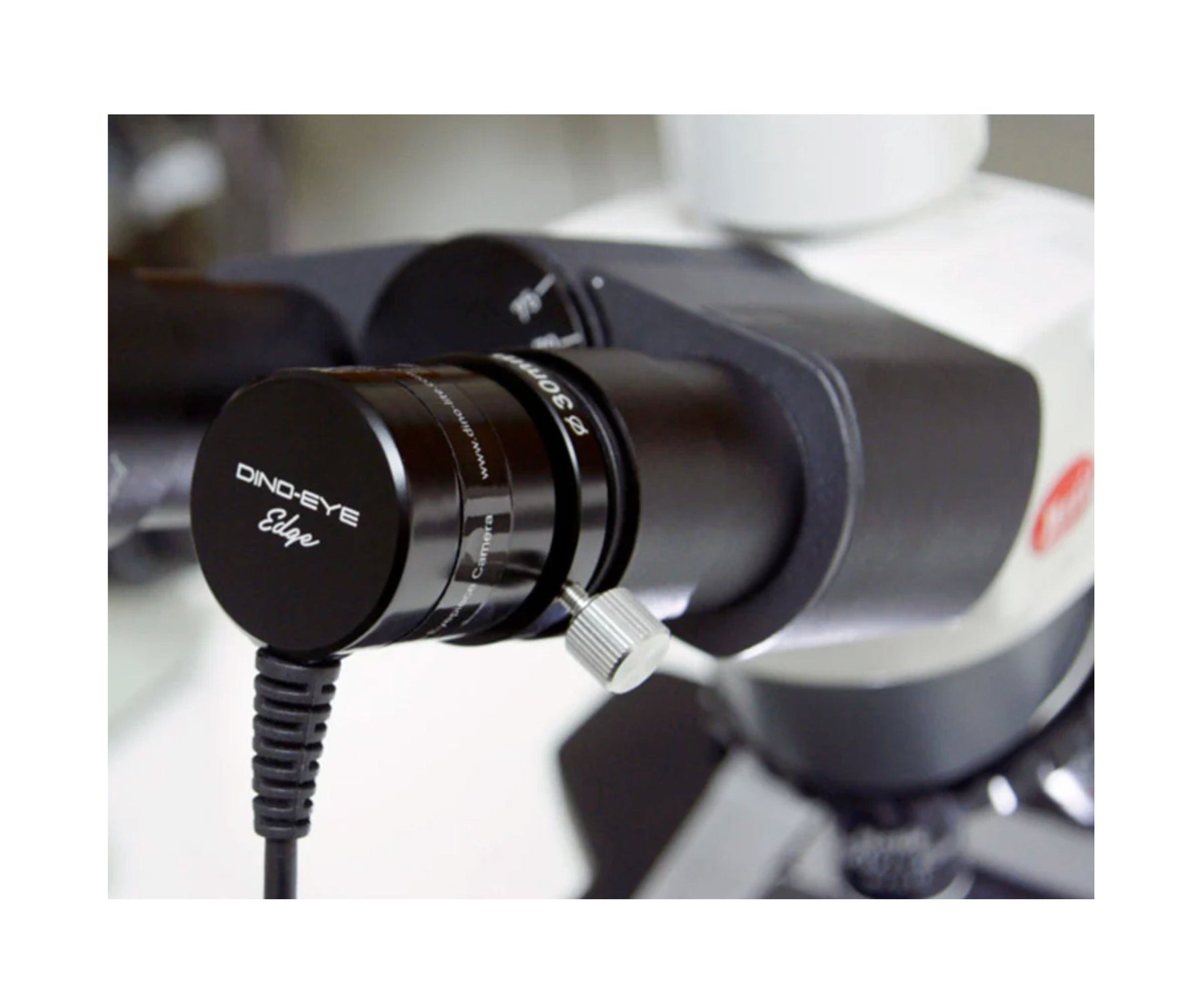

Dino-Lite Dino-eye AM7025X Digital Microscope Camera

While binocular and monocular microscopes can still pair with cameras, they don’t have the built-in connection for C-mount cameras.

If you want to use a C-mount camera with a microscope that doesn’t have a camera port, you can get a bit creative! In this case, you’ll need an over-eyepiece adapter to make it work.

Over-eyepiece adapters

If your microscope doesn’t have a camera port, over-eyepiece adapters are a great solution.

These adaptors fit over one of your eyepieces, effectively turning it into a camera port that can handle C-mount cameras.

They are user-friendly and don’t require any modifications to your microscope. Just keep in mind that eyepieces aren’t built to support heavy equipment, so attaching a large camera without additional support could damage your microscope.

Ensuring a proper fit

Microscope eyepieces come in different sizes, so it’s essential to check the diameter of your eyepiece before buying an adapter. Over-eyepiece adapters are available in various sizes to fit different microscopes, ensuring you can find one that fits securely.

Choosing the right C-mount adapter

C-mount adapters do more than just connect your camera. They also adjust for the natural magnification created by the camera’s sensor.

To work properly, the magnification of the C-mount adapter needs to match the size of your camera sensor (for instance, 1/3" or 1/2"). This ensures that what you see through the microscope matches what the camera captures.

Exploring other camera options

If you don’t need a C-mount adapter, there are other ways to attach a camera to your microscope. Many eyepiece cameras can fit directly into the eyepiece slot. Alternatively, if you’d rather not purchase a new camera, you can use your smartphone by attaching a Microscope Smartphone Camera Eyepiece Adapter.

Conclusion

With the right adapters, you can connect almost any camera to your microscope. Whether you choose an over-eyepiece adapter, go with a trinocular setup or explore other options, taking the time to find the best setup will make documenting your observations easy and enjoyable.
