The Benefits of a Microscope Polarizing LED Ring Light

Light is both friend and foe under the microscope.

While essential for viewing, it can create blinding reflections that mask crucial details.

Enter the polarizing LED ring light – an elegant solution that tames troublesome glare while delivering crystal-clear illumination.

The LED ring advantage

Modern LED technology stands head and shoulders above traditional lighting methods. These powerhouse illuminators deliver the following:

• brilliant, consistent light without the heat
• remarkable energy efficiency
• extended operational life
• true 360-degree coverage that eliminates shadowing.

The ring configuration creates a perfect storm of illumination – wrapping your subject in an even bath of light that reveals rather than conceals.

When light fights back

Metallic surfaces and reflective components pose a unique challenge.

Instead of revealing details, direct light bounces back as glare, creating a frustrating barrier between you and the features you need to examine.

This reflection can mask everything from minor defects to critical details.

Without Polarizer

With Polarizer

The power of polarization

Adding a polarizer to an LED ring transforms it into a precision instrument.

Think of light waves as unruly dancers moving in every direction. The polarizer acts as a choreographer, organizing these waves into a coordinated performance.

The polarizer lets you control the amount of light entering the microscope, allowing you to find the perfect light level for the task at hand.

Without the glare, you’ll be able to see all manner of previously hidden details.

The science made simple

Curious about the science behind this? It’s beautifully simple!

Light waves dance in every direction imaginable – up and down, left and right, and everywhere in between.

Now, picture a polarizer as a fence with vertical slats. Just as a fence only lets through objects aligned with its gaps, these polarizing slats only allow light waves vibrating in the matching direction to pass through.

A single polarizer works like your polarized sunglasses, cutting glare effectively. But here’s where it gets interesting – add a second polarizer, and you gain precise control over the light.

When both polarizers’ slats line up perfectly, they work as one – light passes through both sets of slats as easily as it would through one polarizer alone.

But start rotating one polarizer, and those aligned slats begin to cross each other, creating an increasingly tight mesh. Think of trying to pass a piece of paper through two fences – when the slats cross, it becomes harder and harder to find a clear path through.

Turn one polarizer 90 degrees, and those crossed slats form an impenetrable barrier – no light makes it through at all. This simple yet clever mechanism lets you fine-tune the light exactly how you need it, eliminating glare while preserving the detail you want to see.

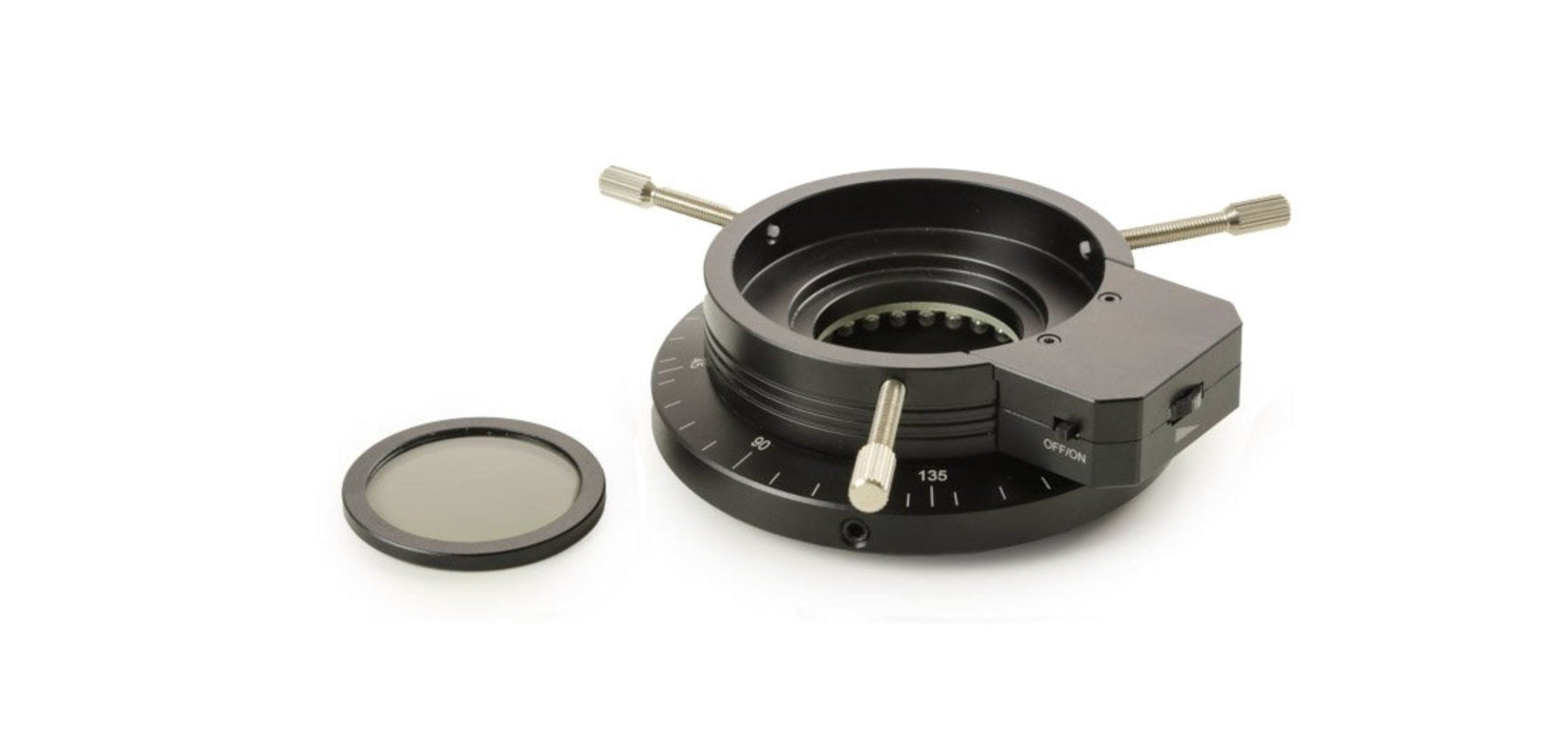

Setting up your polarizing LED ring

Setting up your polarizing LED ring light is refreshingly straightforward.

·      Mount the LED ring to your microscope.

·      The central polarizer stays fixed.

·      Rotate the outer filter to dial in perfect contrast.

The benefits of polarizing LEDs

The biggest perk of using polarizing LEDs is how they reduce the glare coming off shiny surfaces. Not only does this make it easier on your eyes, but it also uncovers details that might have been hiding before – like surface texture or tiny imperfections. If you’re inspecting circuit boards, you might even spot text that was previously invisible.

Applications of polarization

Polarizing LED ring lights are perfect for any task involving reflective surfaces:

• Electronics inspection: Perfect for checking circuit boards where glare can obscure defects. Why use a polarizing LED ring light for electronics inspection.
• Repairs and soldering: Great for getting a clear view while you’re working.
• Industrial inspection and QA: Ideal for analysing metallic components and spotting surface defects.
• Coin collecting: Uncovers fine details for accurate coin evaluation.

A polarizing LED ring light isn’t just an accessory – it’s an upgrade to your microscope’s capabilities. By mastering light itself, this tool reveals details that might otherwise remain hidden, making it indispensable for precision work across numerous fields.
