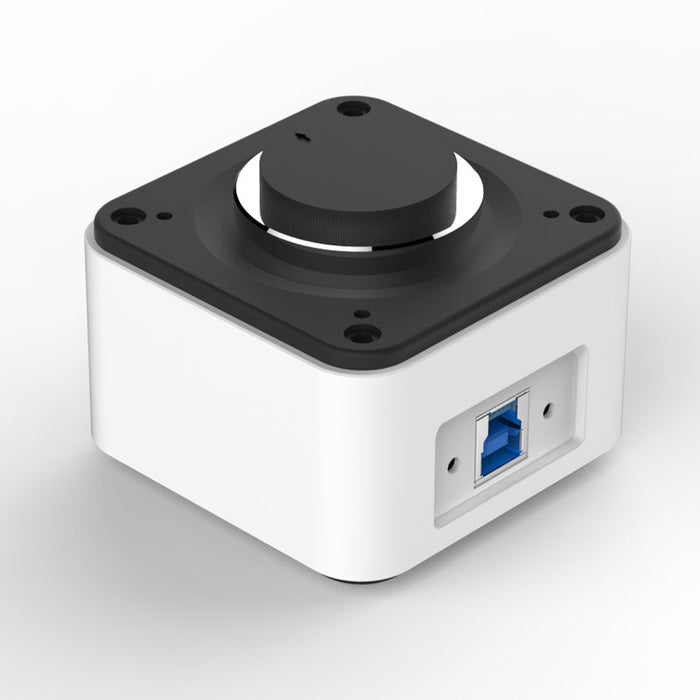

MIchrome 5 Pro - Fluorescence
by Optico
Professional Imaging Performance for Brightfield, Darkfield, Phase Contrast & Fluorescence Microscopy.
Sony professional CMOS sensor
Uses a Sony 5 megapixel CMOS 2/3” sensor-IMX264, with 3.45 x 3.45 μm pixels. The resolution of the captured image can reach 2448 x 2048. Images taken at low magnification readily resolved.

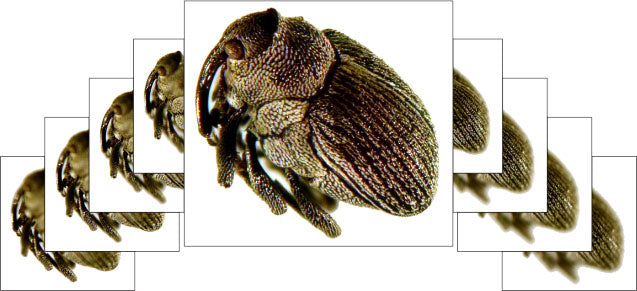

Real-time depth-of-field fusion
General microscopes focus only on shallow depth planes. To acquire large depth-of-field images, multiple static images of different focal points need to be post-processed. Reason, the operation is difficult and cumbersome. Mosaic V 2.0 revolutionises the " real-time depth of field fusion " , which produces perfect results just by turning the focus ring to switch the depth.

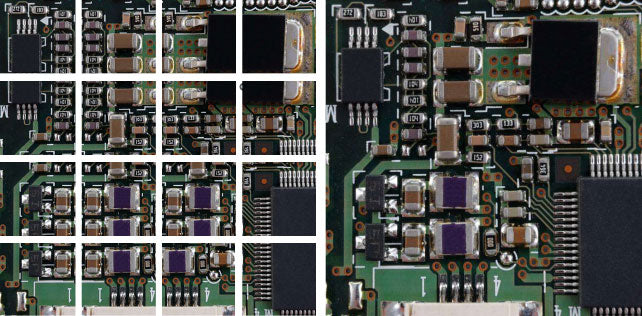

Real-time image stitching
Due to limited field of view, in order to obtain large-field images in the past, it was necessary to perform on multiple static images in different positions. Mosaic 2.0 core breaks out “ real-time image stitching ” , which can generate mosaic images while moving the stage. Just one click, stitching effect is immediate with a mosaic frame up to 10000x10000 resolution.
Stable high-speed transmission
USB 3.0 high-speed transmission interface, simple and convenient while ensuring a stable High transmission rate which allows fast focusing at high resolution. Imaging can be performed at a rate of 35 fps.

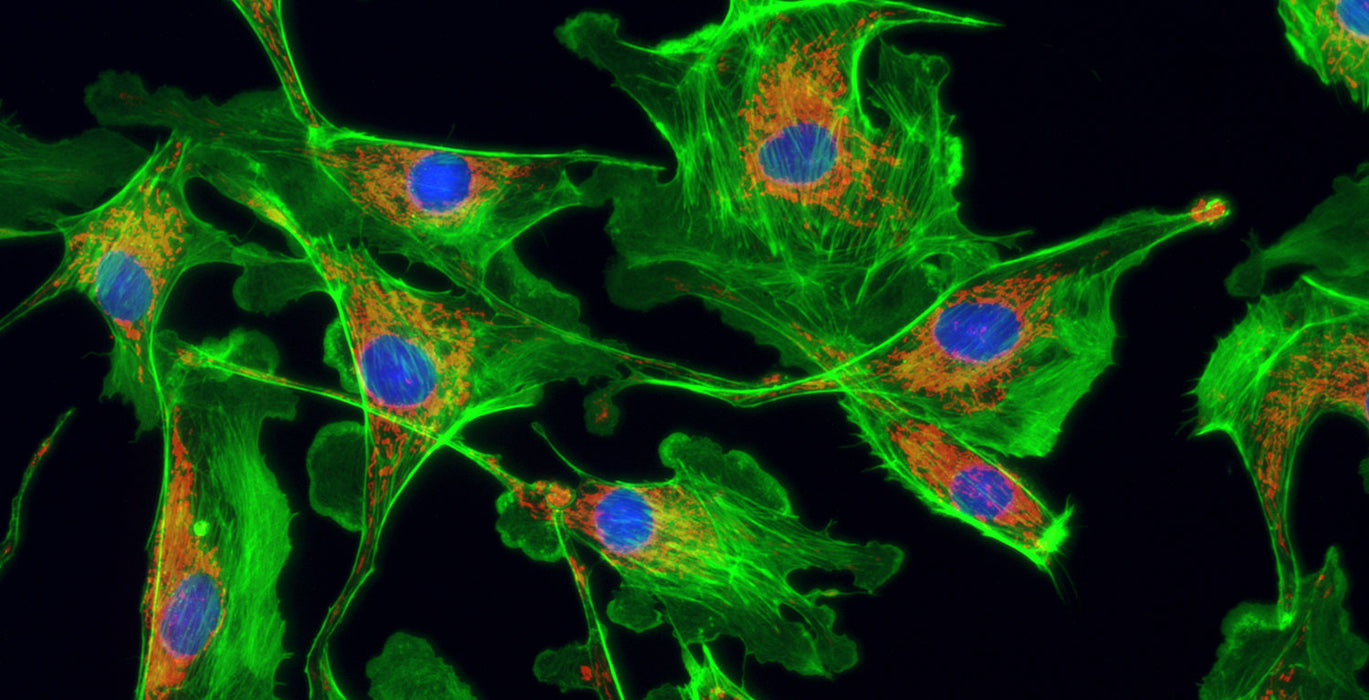

Excellent color reproduction
The use of Tucsen’s core ISP colour interpolation algorithm effectively corrects the colour deviation of the sensor’s spectral response,to simulate the human eye’s sensitivity to colour. The true colour in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.
Advanced Global Shutter Technology
With global shutter technology, all pixels are exposed simultaneously, which allows accurate tracking and capture of dynamic samples and provides, crisp, undistorted, clear images of fast moving specimens.
Revolutionary computational imaging software，workflow-based design, with a dramatically improved user experience!
From the user's point of view, taking into account the best operating procedures, through modular design, redefining the image acquisition - editing - measurement - report output workflow process. The inclusion of Tucsen’s latest image processing algorithm, greatly saves the operating time, effectively improving productivity.
Technical Features:
|
Sensor Model
|
IMX 264 LQR-C
|
|
Sensor Type
|
CMOS
|
|
Sensor Size
|
2/3"
|
|
Color / Mono
|
Color
|
|
Pixel Size
|
3.45 x 3.45 um
|
|
Resolution
|
2448(H) x 2048(V)
|
|
Frame
|
35fps @ 5MP
|
|
Shutter Mode
|
Global
|
|
Exposure Time
|
0.12ms ~ 15s
|
|
Automatic Set
|
Exposure , Color Scale, White Balance
|
|
Manually Set
|
Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction
|
|
Color Temperature
|
2000 ~ 15000K
|
|
ADC Depth
|
12Bit
|
|
PC Software
|
Mosaic V 2.0
|
|
Picture Format
|
JPG / PNG / TIFF
|
|
Operating System
|
Windows / Linux / Mac
|
|
Multiple Cameras
|
Supports 4 Cameras Simultaneously
|
|
Data Interface
|
USB 3.0
|
|
Optical Interface
|
Standard C Mount
|
|
Camera Size
|
68 x 68 x 46 mm
|
|
Camera Weight
|
330g
|
| Operating Temperature |
0 - 60︒C |
