AF3113T

by Dino-Lite
$520.00

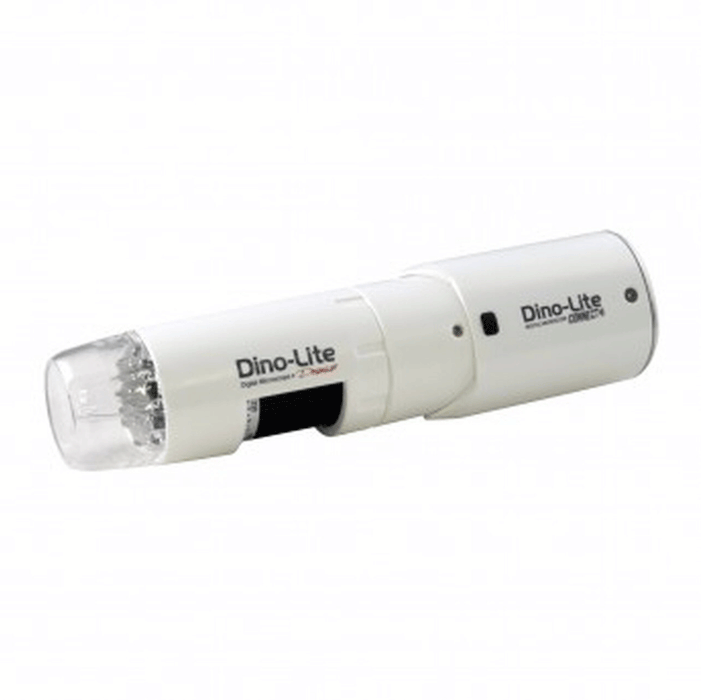

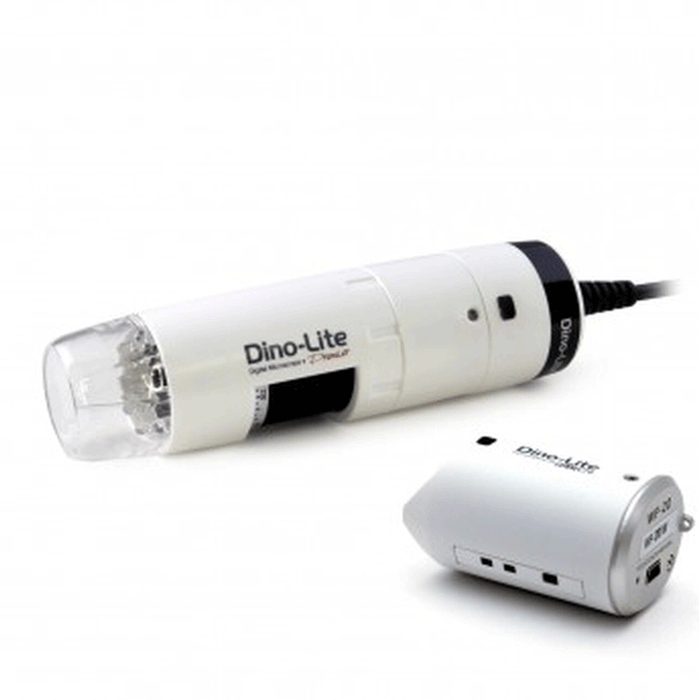

The Dino-Lite Premier AF3113T is a general-purpose model made with quality, providing fluid live-preview as well as wireless adapting capability. By attaching with WF-20 Wi-Fi streamer, the AF3113T could be transformed to a wireless microscope for mobile or wireless usage.

USB connection included, WF-20(W) WiFi Module NOT Included.
WF-20(W) WiFi Module can be purchased separately here.

  VGA resolution
The CMOS image sensor transmits 640x480 resolution with up to 60fps.

  Adaptable interface
The adaptable interface provides the flexibility of transforming Dino-Lite into a wireless microscope when attaching with WF-20.

  Adjustable LED intensity
The LED intensity could be adjusted within 6 levels for providing further illumination flexibility.

  MicroTouch button
The touch-sensitive button allows to capture image or to record video with a single tap.

  Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

  Information about working distance and field of view
M WD FOV (x) FOV (y) DOF
20 51.7 21 15.7 8.02
30 24.1 14 10.5
40 11 10.5 7.9
50 3.8 8.4 6.3 1.95
55 0.6 7.4 5.2
215 0.6 1.9 1.3
220 1.7 1.8 1.3

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
