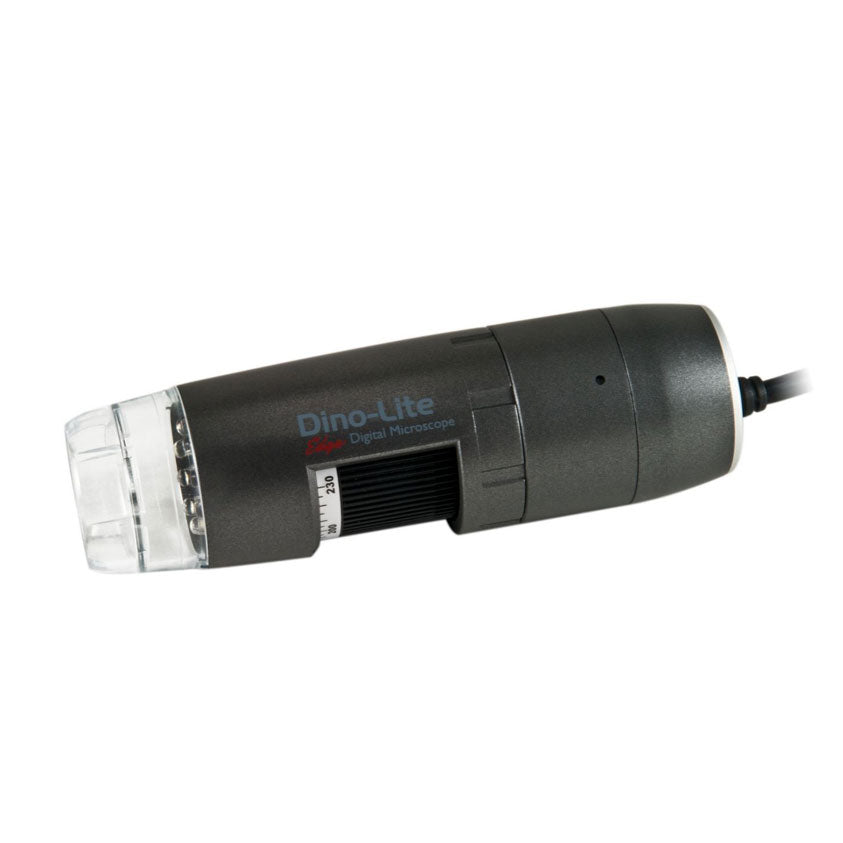

Dino-Lite AM4815T

by Dino-Lite
Sold out
$1,375.00
$687.50

Soon to be Discontinued - 1 ONLY

Innovate to meet most challenges. Adding to the high image quality of Dino-Lite Edge, the AM4815T provides image processing features, EDOF and EDR, for further extending its limitation over depth of focus or dynamic range.


AM4815T also has better adaptability to different applications with the detachable and exchangeable front cap design.

  High optical resolution
With the state-of-the-art lens design, the Dino-Lite Edges series delivers matchless image quality with stunning sharpness, least aberration, and least vignetting throughout the whole magnification range.

  Convenient flexible magnification
The Dino-Lite is capable of variable magnification with a range of 20~220x depending of working distance by simply zooming in or out with just a rotating dial.

  Extended Depth of Field (EDOF)
To view a rough surface with height range out of depth of focus, the AM4815T’s EDOF capture mode can take several pictures at different focus and stack them automatically within a click. The resulted EDOF image maintains the picture quality from its original pictures which also can be reviewed in DinoCapture 2.0.

  Extended Dynamic Range (EDR)
For high contrast or reflective surface, the EDR capture mode can help to reveal the details of dark or bright areas, which may lost in normal capture mode, by stacking images taken at different exposure levels.

  Adaptable cap design
This model features a detachable and interchangeable front cap that extends its range of use, as different caps are available for various applications. Removing the front cap provides greater working distance and access to the full magnification range.

    Interchangeable Front Caps
  N3C-C / Close Cap
  This cap protects the lens and LED lights from contamination of dust, debris, or moisture.

  N3C-D / Diffuser Cap
  This cap diffuses the LED light.

  N3C-D2 / Opal Diffuser Cap
  This cap diffuses the LED light.

  N3C-E / Extended Open Cap
  Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.

  N3C-L / Long Cap
  This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.

  N3C-O / Open Cap
  This is the standard cap for normal usage.

  N3C-S / Sidelight Cap
  This cap creates images with more depth and texture.

Model AM4815T Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 20x~220x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Formats Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

Movie:
DinoCapture2.0: WMV, FLV, SWF
Microtouch Touch sensitive trigger on the microscope for taking pictures
Lighting 8 white LED lights switched on/off by software
Measurement Function Yes
Calibration Function Yes
Operating System Supported Windows 10, 8, 7, Vista, XP
Mac OS 10.9 or later (EDOF/EDR are NOT controllable on Mac OS)
Unit Weight 100g
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimensions 16cm (L) x 16cm (W) x 6cm (H)
    Information about working distance and field of view
M WD FOV (x) FOV (y) DOF
20 60.2 19.5 15.6 2.5
30 33.5 13 10.4 1.8
40 20.9 9.8 7.8 1.5
50 13.9 7.8 6.3
60 9.7 6.5 5.2
70 7.1 5.6 4.5 1.0
80 5.5 4.9 3.9
90 4.5 4.3 3.5
100 4.1 3.9 3.1
110 4 3.6 2.8
120 4.1 3.3 2.6
130 4.5 3 2.4
140 5 2.8 2.2
150 5.6 2.6 2.1
160 6.3 2.4 2
170 7.1 2.3 1.8
180 8 2.2 1.7
190 8.9 2.1 1.6
200 9.9 2 1.6
210 10.9 1.9 1.5
220 11.9 1.8 1.4 0.1

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
