High optical resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
|
|
| |
 |
|
5.0 Megapixels
Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944.
|
|
| |
 |
|
Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.
|
|
| |
 |
|

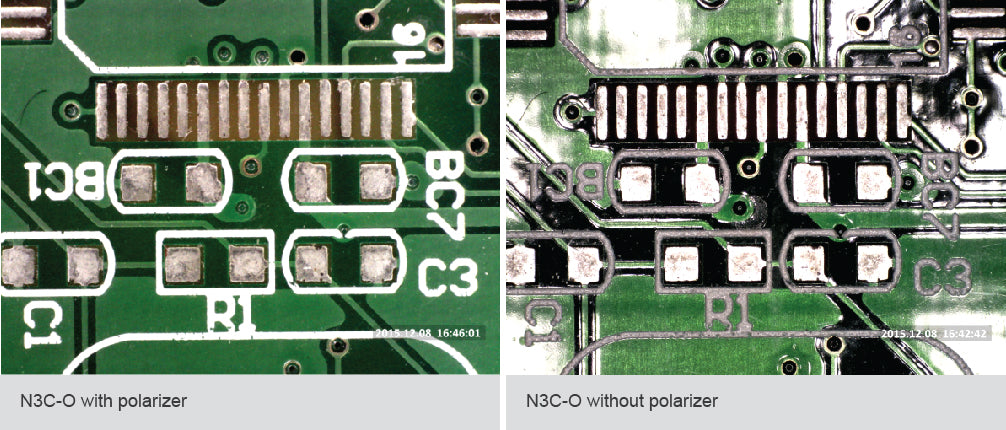

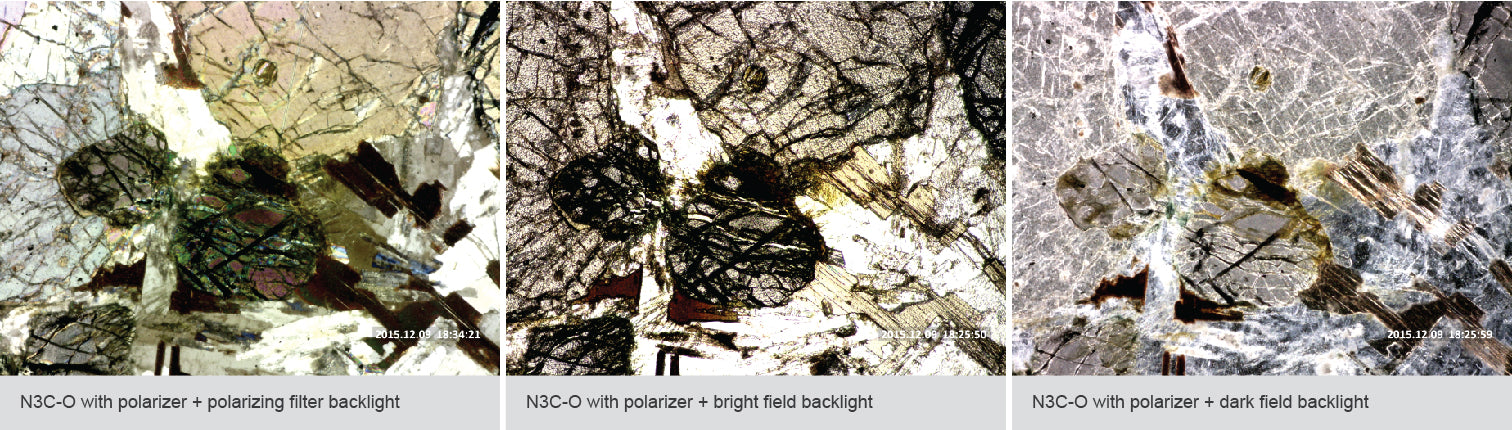

Adjustable polarizer
The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
|
|
| |
 |
|
Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
|
|
| |
 |
|
Robust housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.
|
|
| |
 |
|
Interchangeable caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.
|
|
| |
|
|
Interchangeable front caps
 |
N3C-C / Close Cap
This cap protects the lens and LED lights from contamination of dust, debris, or moisture. |
 |
N3C-D / Diffuser Cap
This cap diffuses the LED light.
|
 |

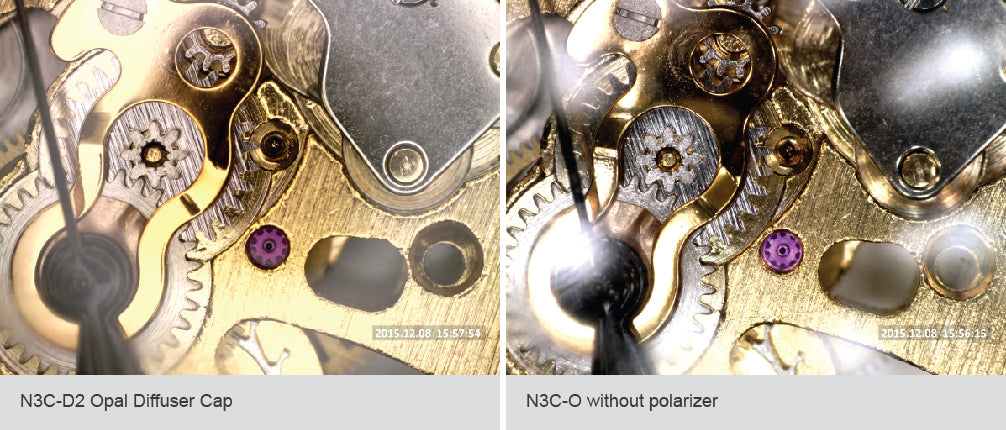

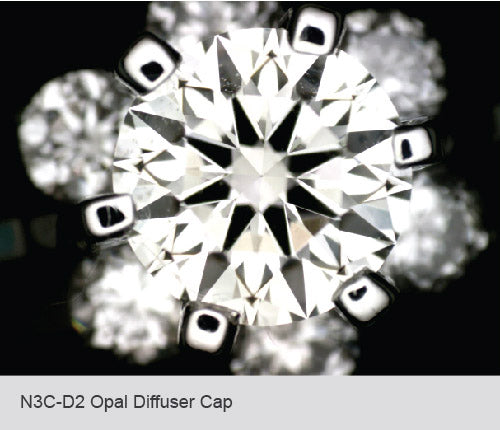

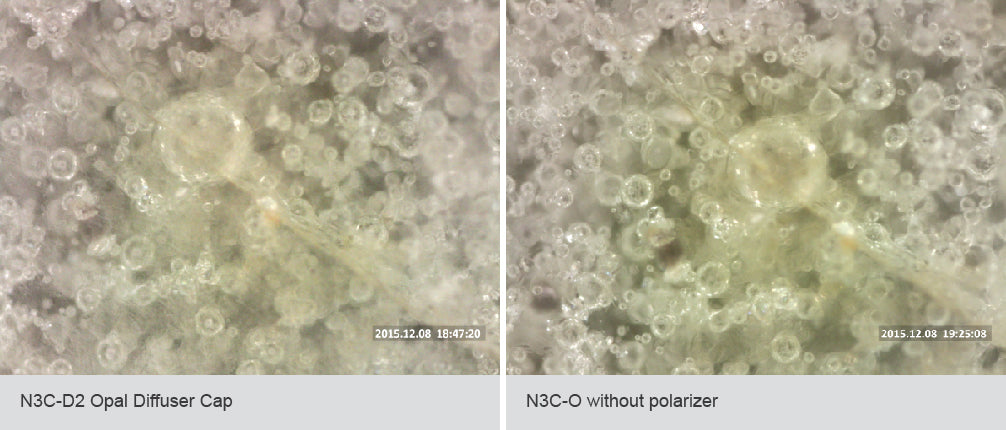

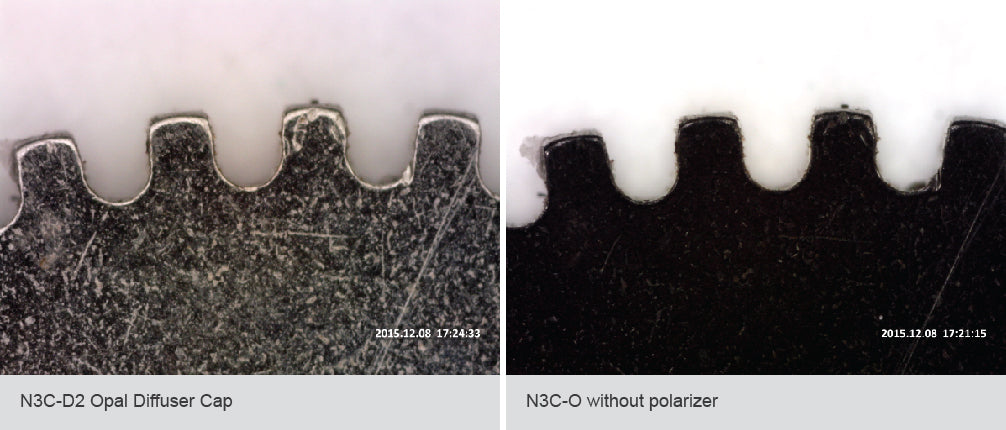

N3C-D2 / Opal Diffuser Cap
This cap diffuses the LED light.
|
 |
N3C-E / Extended Open Cap
Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.
|
 |
N3C-L / Long Cap
This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.
|
 |

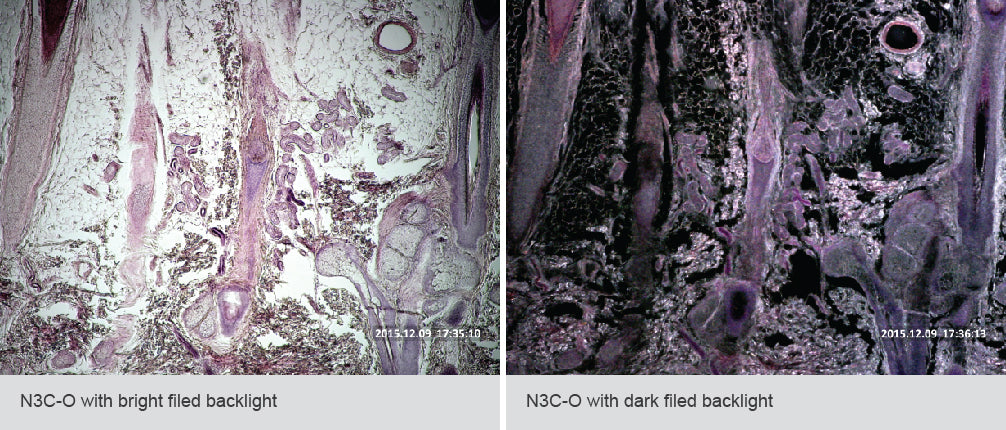

N3C-O / Open Cap
This is the standard cap for normal usage.
|
 |
N3C-S / Sidelight Cap
This cap creates images with more depth and texture.
|
|
|
|
| |
|
|
Information about working distance and field of view
| M |
WD |
FOV (x) |
FOV (y) |
DOF |
| 20 |
60.2 |
19.5 |
14.6 |
2.5 |
| 30 |
33.5 |
13 |
9.7 |
1.8 |
| 40 |
20.9 |
9.8 |
7.3 |
1.5 |
| 50 |
13.9 |
7.8 |
5.8 |
|
| 60 |
9.7 |
6.5 |
4.8 |
|
| 70 |
7.1 |
5.6 |
4.2 |
1.0 |
| 80 |
5.5 |
4.9 |
3.6 |
|
| 90 |
4.5 |
4.3 |
3.2 |
|
| 100 |
4.1 |
3.9 |
2.9 |
|
| 110 |
4.0 |
3.6 |
2.7 |
|
| 120 |
4.1 |
3.3 |
2.4 |
|
| 130 |
4.5 |
3.0 |
2.2 |
|
| 140 |
5.0 |
2.8 |
2.1 |
|
| 150 |
5.6 |
2.6 |
1.9 |
|
| 160 |
6.3 |
2.4 |
1.8 |
|
| 170 |
7.1 |
2.3 |
1.7 |
|
| 180 |
8.0 |
2.2 |
1.6 |
|
| 190 |
8.9 |
2.1 |
1.5 |
|
| 200 |
9.9 |
2.0 |
1.5 |
|
| 210 |
10.9 |
1.9 |
1.4 |
|
| 220 |
11.9 |
1.8 |
1.3 |
0.1 |
|
M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
|
|
