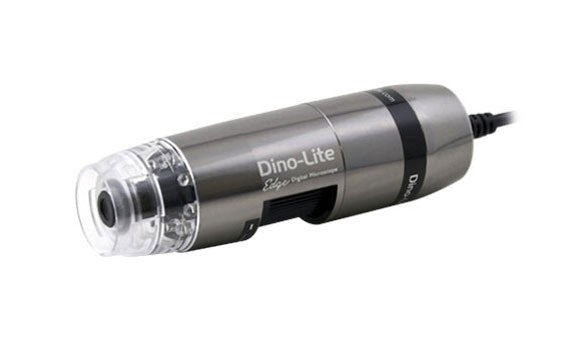

AM7515MT8A

by Dino-Lite
$1,725.00

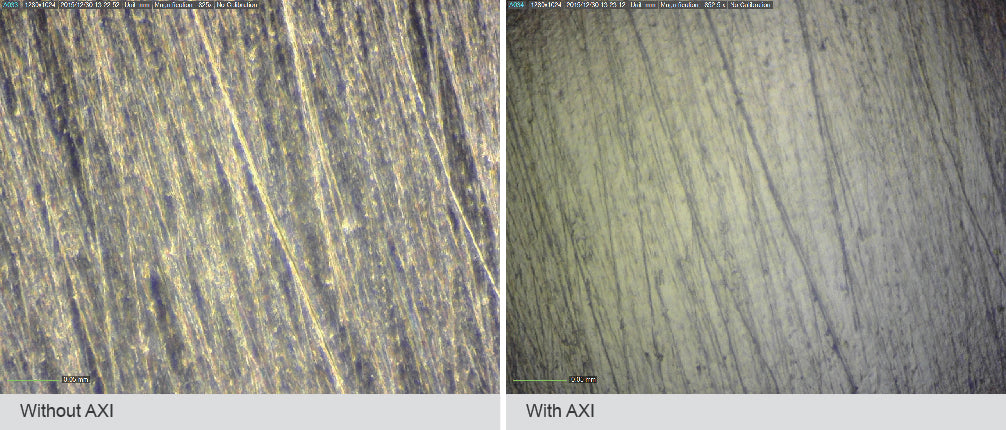

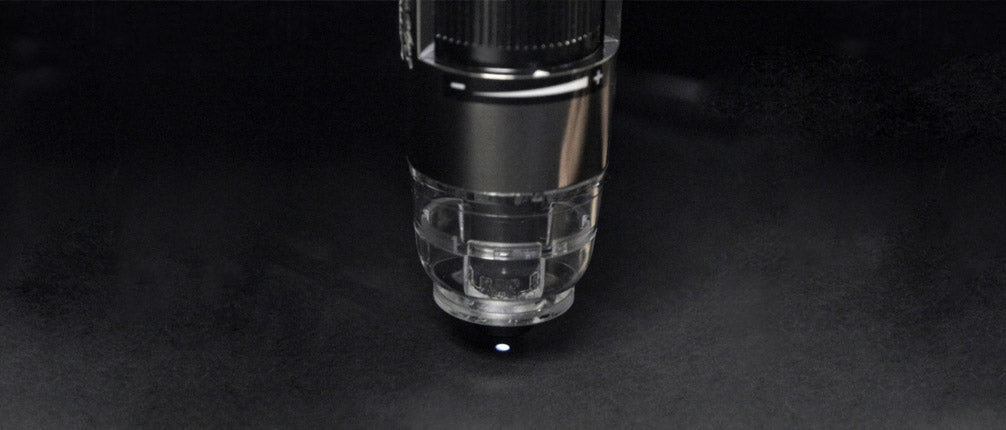

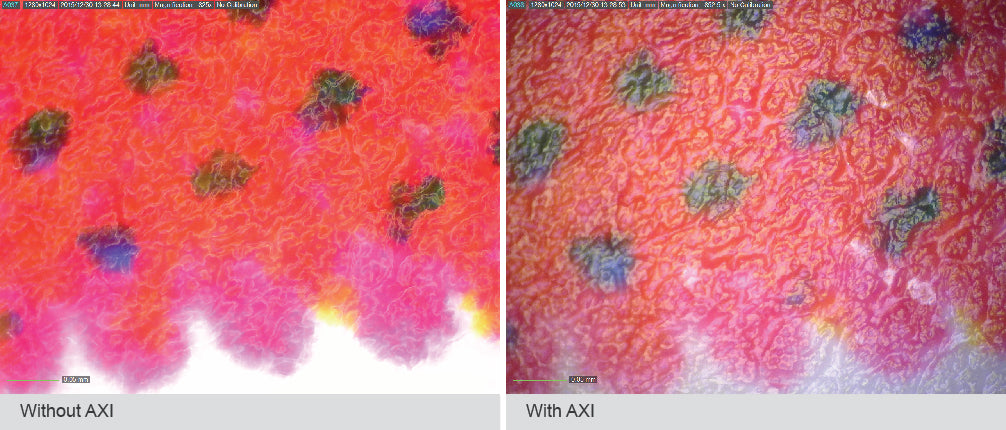

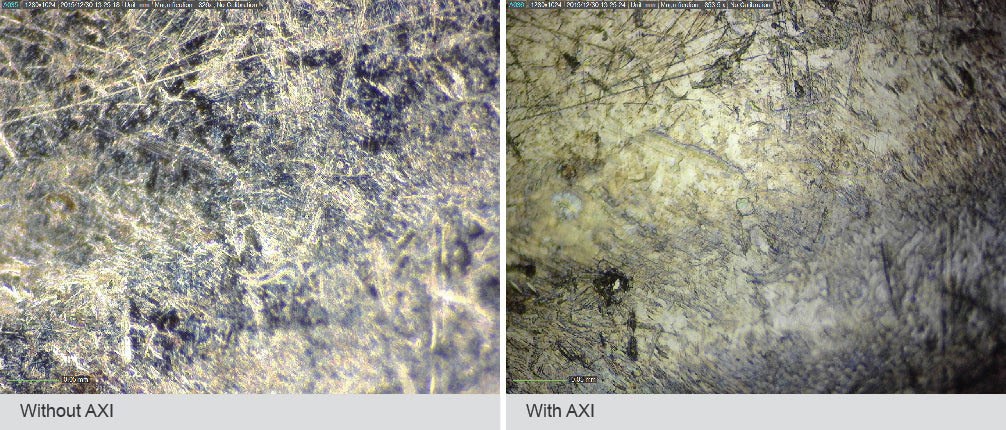

Pioneered with built-in coaxial light, the AM7515MT8A answers the needs of brightfield observation with superior image quality at 700~900x magnifications. Through the use of Flexible LED Control (FLC), the AM7515MT8A not only can switch between brightfield and darkfield freely but also can mix them together for more possibilities on highlighting the details. The AM7515MT8A provides Automatic Magnification Readings (AMR) which was designed to optimize the measurement with efficiency and accuracy.

  Brightfield/Darkfield
Without the need of other accessories, the brightfield and darkfield illumination can be provided separately or coordinated with each other to explore for more details.

  High optical resolution with up to 900X magnifications
With superior optics, this Edge model is capable of revealing some of the finest details within a range of 700-900X magnifications.

  5.0 Megapixels
Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944.

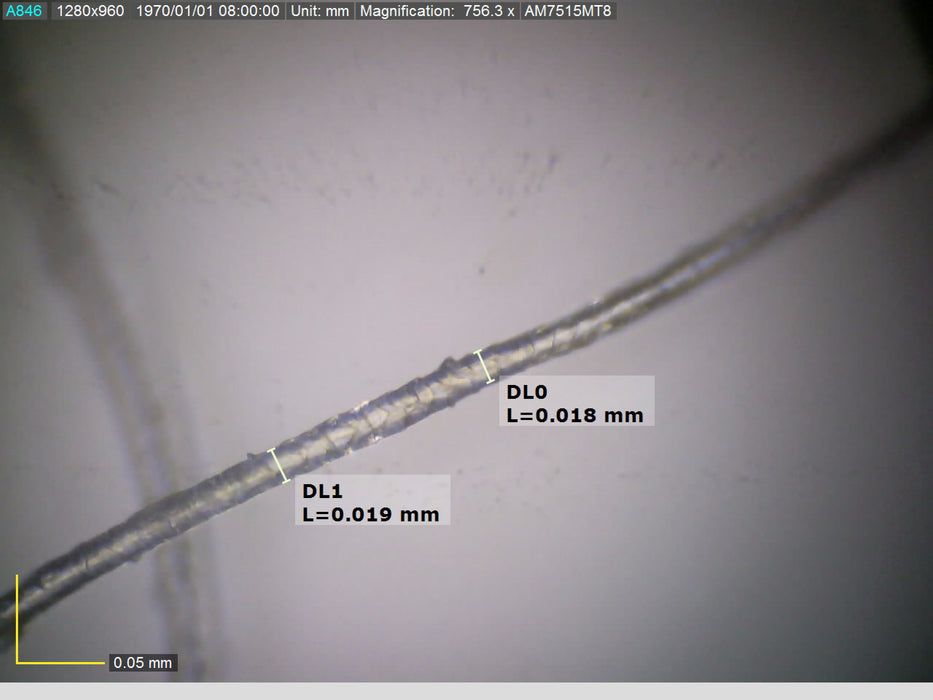

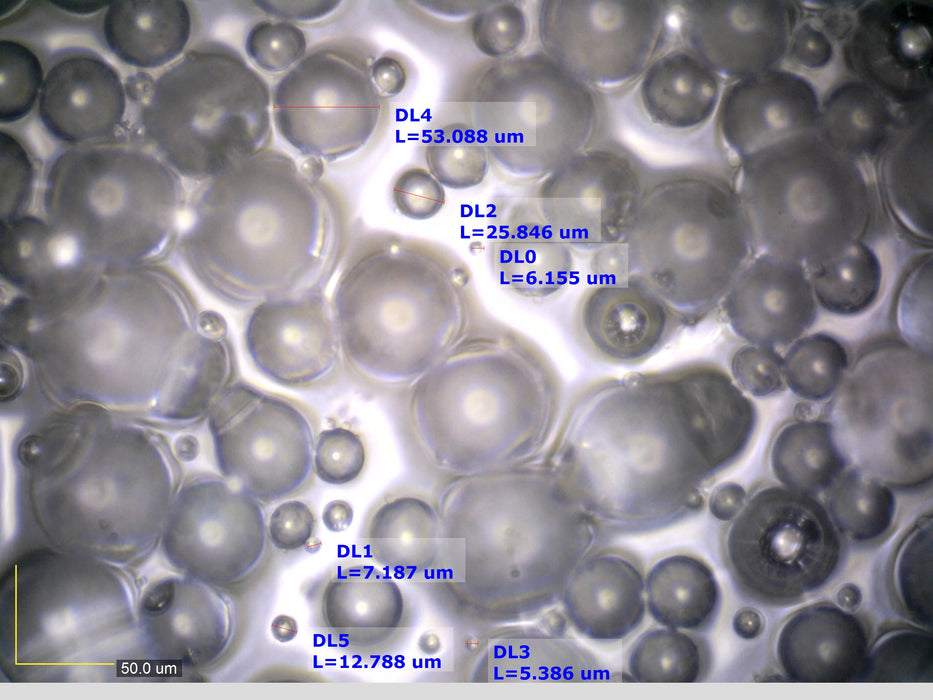

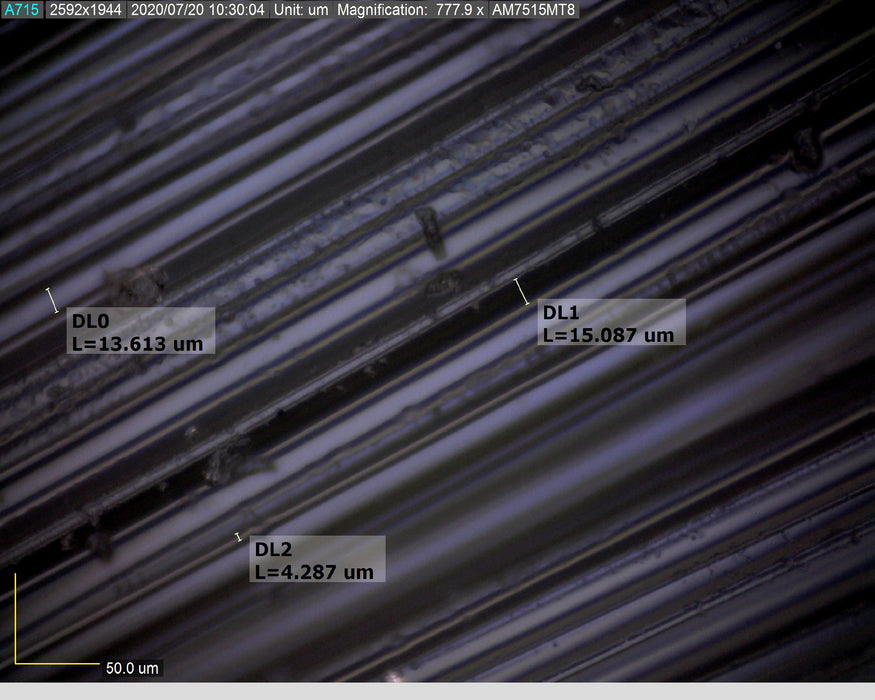

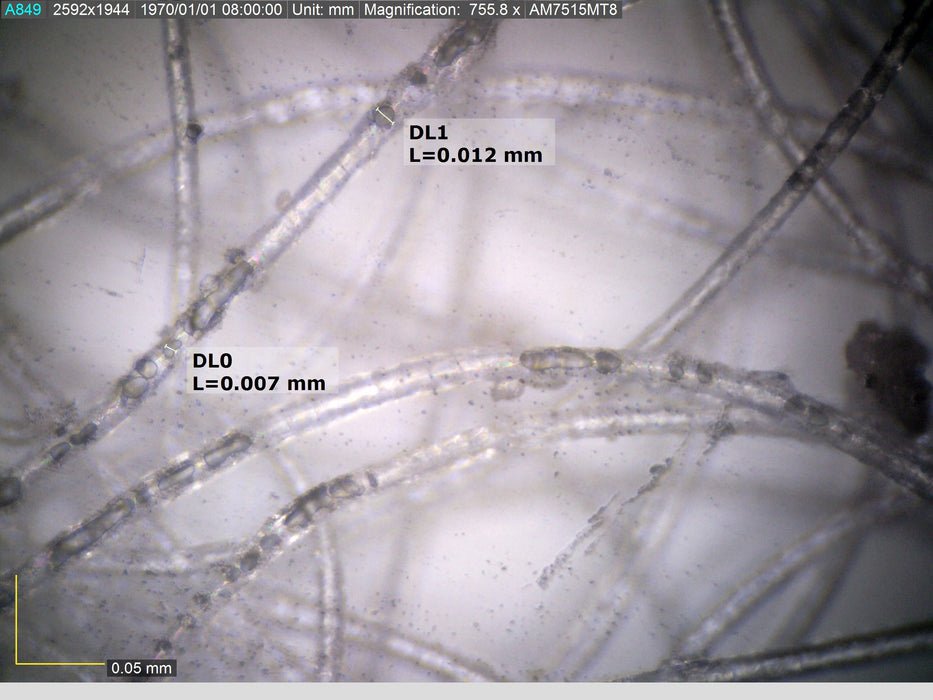

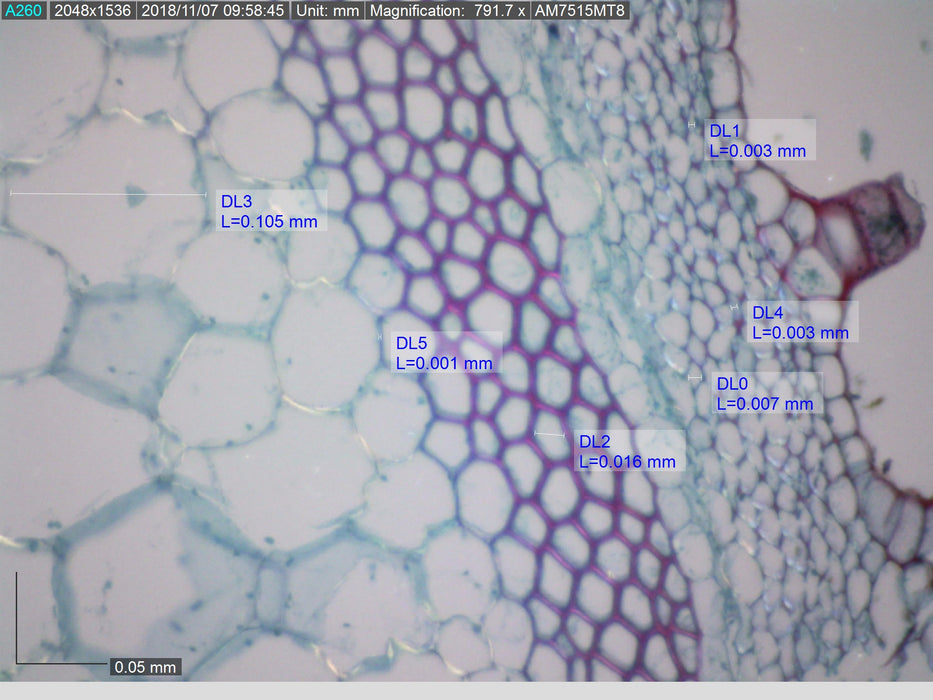

  Automatic Magnification Reading (AMR)
Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.

  Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.

  Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

  Robust housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.

  Interchangeable caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.


Specification

Model AM7515MT8A Dino-Lite Edge
Interface USB 2.0
Product Resolution 5M pixels (2592×1944)
Magnification 700x~900x
Frame Rate 10fps in 5MP/3MP/2MP, MJPEG
25fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Lighting 8 white LEDs
Microtouch Yes
Operating System Supported Windows 10, 8, 7, Vista, XP
Mac OS 10.9 or later
System Requirements ‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
‧ 20GB available HD space
‧ 2GB available RAM or more
‧ 512MB video card or more
‧ CD-ROM drive for installation
‧ USB 2.0
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.7cm (H) x 3.2cm (D)
Unit Weight 139g
