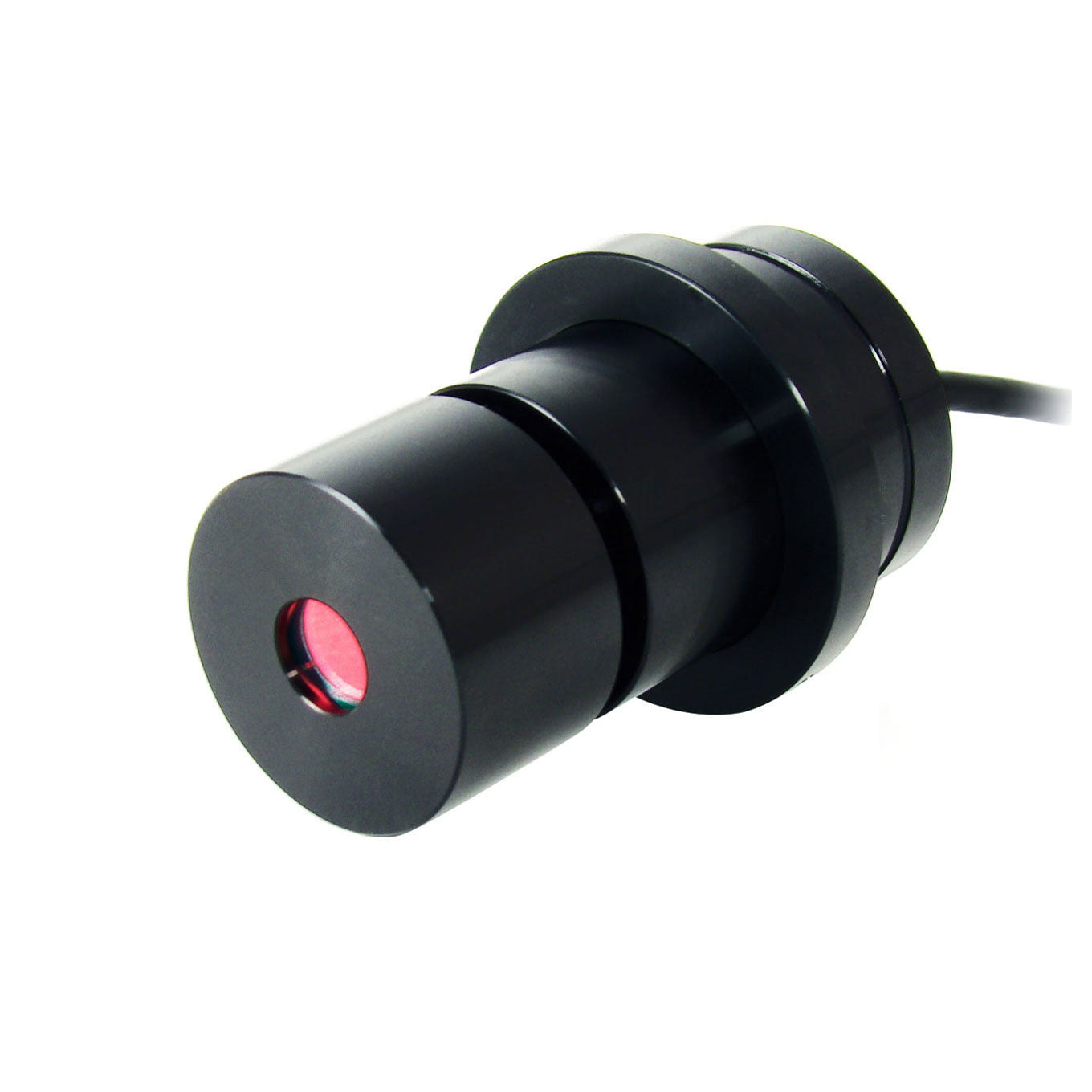

Dino-Eye AM423B

by Dino-Lite

Note: Fits eyepiece tubes of 30mm & 30.5mm

The Dino-Eye is a digital eyepiece camera which can help the user to upgrade their existing microscope by simply replacing the eyepiece with the Dino-Eye. The AM-423B features a USB interface and is matched with 30mm or 30.5mm diameter eyepiece aperture. The Dino-Capture software is bundled with the camera.


Sensor Type CMOS
Resolution 1280 x 960 pixels
Megapixels 1.3 MP
Frame Rate (max) 30 FPS
Operating System Windows XP, Vista, 7, 8, 10
Included Software DinoCapture 2.0 (Windows)
Connection Type USB 2.0
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) JPEG, PNG
Video Save Formats (Windows) WMV, FLV, SWF
Video Save Formats (Mac OS) MOV
Base Diameter 30mm
Dimensions 5cm (L) x 3.4cm (D) ("1.97 x 1.34")
Weight 90g (3.17 oz)
Cable Length 182cm (71.65 in)
Body Material Metal
Measurement Yes
Package Includes Camera, Carry Pouch, Software CD, Standard Calibration Target
Warranty Period 2 years
Manufactured in Taiwan
Service & Support English & Spanish
Regulatory Approval CE, FCC
