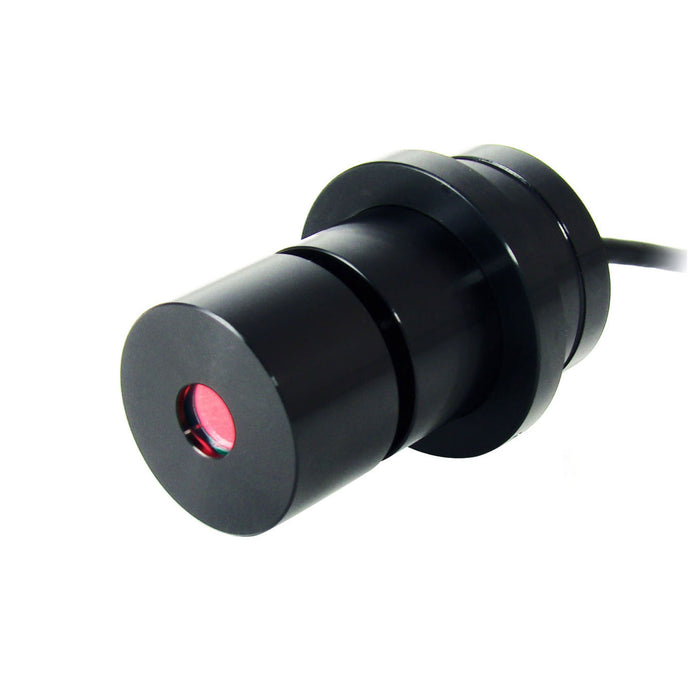

Dino-Eye AM7023B

by Dino-Lite
Save $470.00
$895.00
$425.00

Discontinued/replaced by AM7025X

Dino-Eye AM7023B digital eyepiece is a USB 2.0 powered device that has 5 MP of resolution providing large detailed viewing and images under the microscope with resolution up to 2592x1944. The eyepiece fits traditional microscopes with 30mm diameter eyepiece slots and 30.5mm diameter eyepiece slots with its included adapters. Simply remove the optical eyepiece and insert the Dino-Eye to digitalize a microscopy experience. The Dino-Eye can be found useful for using in either a production line or a laboratory for inspection and documentation. In addition to the merit of digitization, the user can find the experience of using a microscope to be more pleasant and comfortable especially for daily microscope users.

Specifications:

Sensor Type CMOS
Resolution 2592 × 1944 pixels
Megapixels 5 MP
Frame Rate (max) 30 FPS
Operating System Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Connection Type USB 2.0
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) JPEG, PNG
Video Save Formats (Windows) WMV, FLV, SWF
Video Save Formats (Mac OS) MOV
Base Diameter 30mm
Dimensions 5cm (L) x 3.4cm (D) ("1.97 x 1.34")
Weight 90g (3.17 oz)
Cable Length 182cm (71.65 in)
Body Material Metal
Measurement Yes
Package Includes Camera, Carry Pouch, Software CD, Standard Calibration Target
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC
