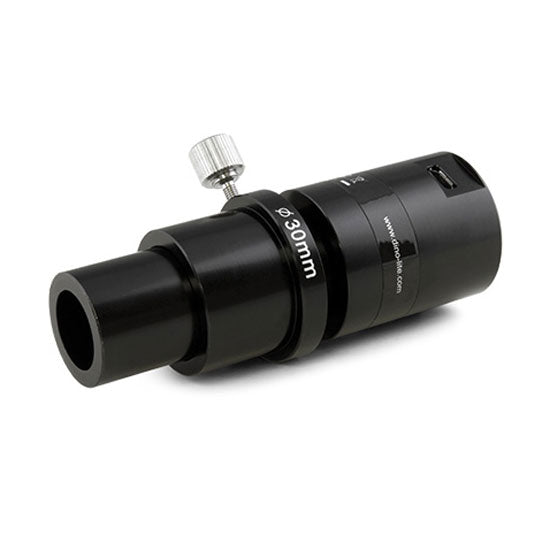

Dino-Eye Edge AM4025X

by Dino-Lite
$645.00

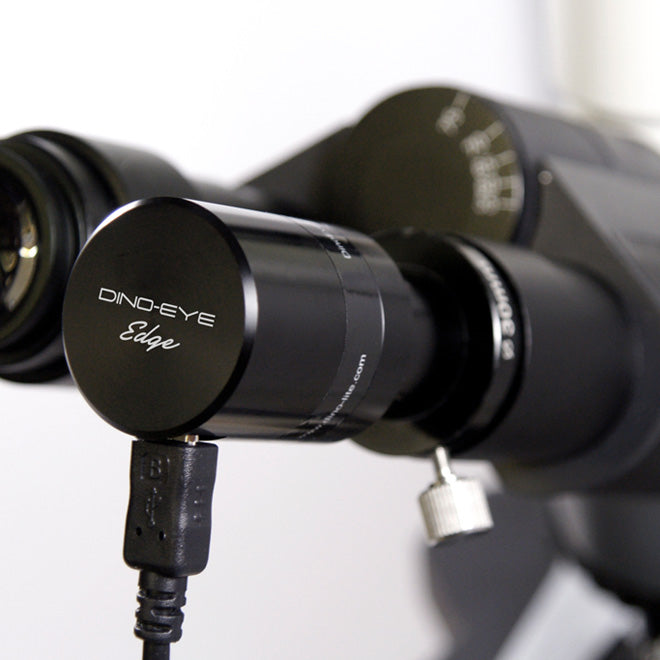

Catering the needs of digitizing conventional microscope, the Dino-Eye Edge 1.3MP AM4025X provides remarkable image quality for most demanding applications. Adopting with Edge-class optics and advanced image sensor, the AM4025X delivers sharp images with authentic color yet to provide large FOV for revealing more details.

  High optical performance
With the state-of-the-art lens design, the AM4025X is capable of reproducing possible details imaged from the microscope.

  1.3 Megapixels
The advanced CMOS image sensor allows to transmit crisp images with resolution up to 1280x1024.

  Adaptable design

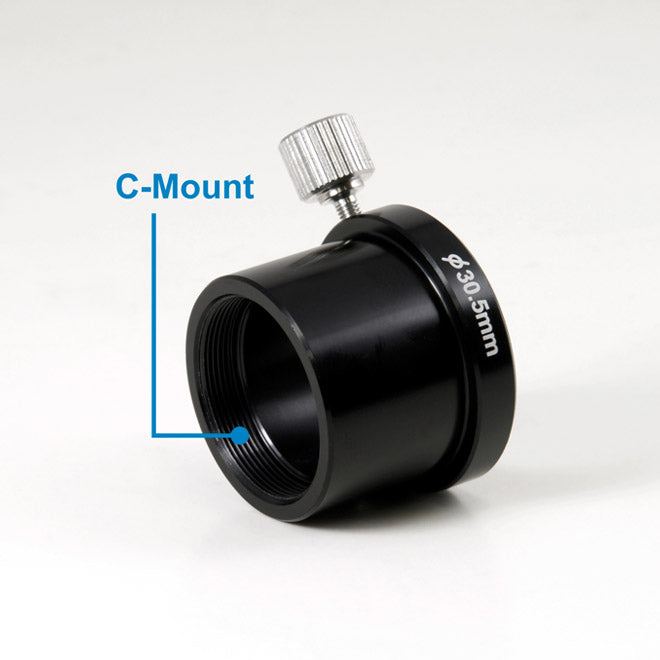

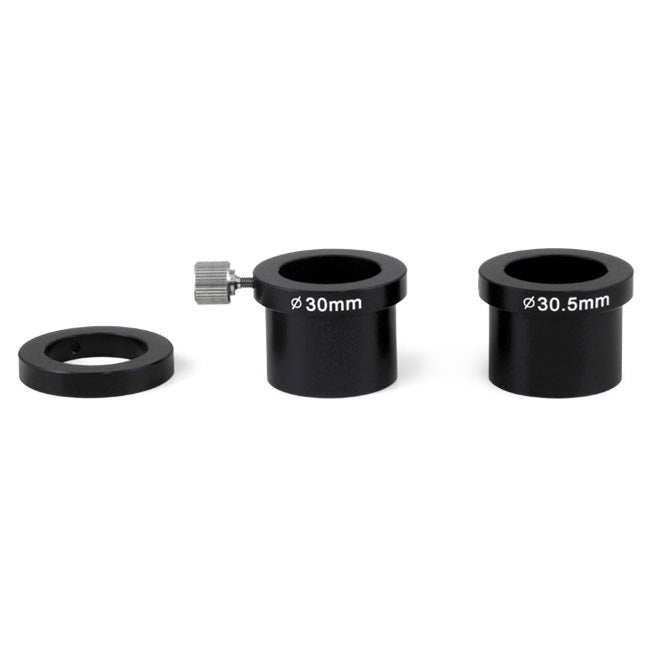

The AM4025X can fit in with 23mm / 30mm / 30.5mm eyepiece port or C-mount port for adapting most microscopes usage.
Model AM4025X Dino-Eye Edge
Interface USB 2.0
Product Resolution 1.3M pixels (1280x1024)
Frame Rate 15fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Operating System Supported Windows 10, 8, 7, Vista, XP
Mac OS 10.12 ~ 10.14
Calibration Function Yes
Measurement Function Yes
Unit Dimension 9.2cm (H) x 3.2cm (D)
Unit Weight 80g
