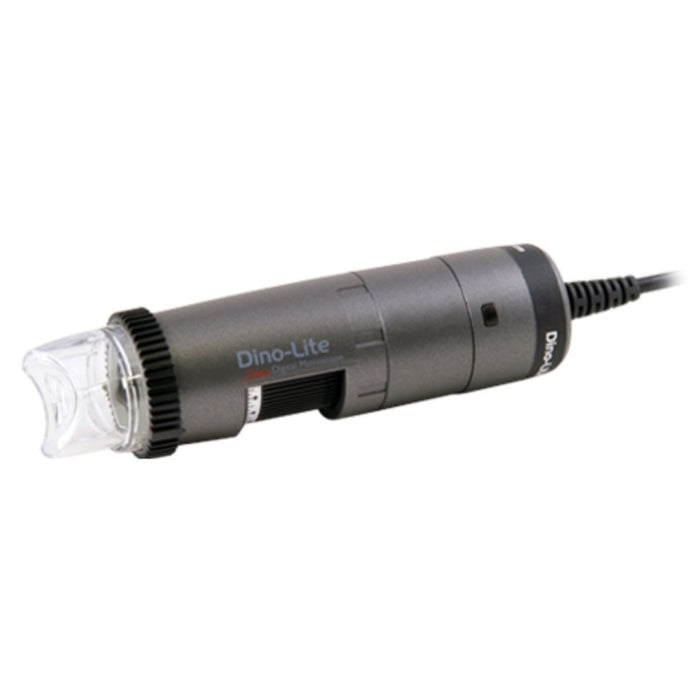

Dino-Lite AF4535ZTE-N3U

Name: Dino-Lite AF4535ZTE-N3U
Brand: Dino-Lite
Price: 1360.0 AUD
Availability: InStock

by Dino-Lite

$1,360.00 - $1,360.00

$1,360.00

$1,360.00 - $1,360.00

$1,360.00

Based on the AF4535ZTE, AF4535ZTE-N3U comes with a detachable nailfold cap (N3C-N) for macro and micro-level capillary observations. This model offers 80x and 300x magnification when using the nailfold cap in contact with the nailfold. AF4535ZTE-N3U is compatible with the WF-20 Wi-Fi streamer for wireless connectivity.

Model	AF4535ZTE-N3U
Series	Dino-Lite Edge
Interface	USB 2.0
Full Resolution	1.3 Megapixel (1280 x 960)
Magnification	Adjustable, 10x ~ 330x
Frame Rate	15 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG
System Requirements	CPU: Intel Core i5 6th Gen or higher AMD Ryzen 5 1000 series or higher Memory: 4 GB or more Storage: 150 MB available space or more
Operating System	Windows 10/11 or later macOS 10.14 or later
Saving Format	Image: DinoCapture 2.0: BMP, PNG, TIF, JPG DinoCapture 3.0: BMP, PNG, TIF, JPG DinoXcope: PNG, JPEG Video: DinoCapture 2.0: WMV, FLV, SWF DinoCapture 3.0: MP4 DinoXcope: MOV
Measurement Function	Yes
Calibration Function	Yes
Microtouch	Yes
Scroll Lock	Yes
Illumination	White Light, 8 LEDs
Included Front Caps	N3C-N (Nailfold Cap), Qty: 5 units
Cable Type	USB Type-A cable
Cable Length	Approx. 1.8 m
Unit Dimension	122 mm (H) x 34 mm (D)
Unit Weight	Approx. 110 g, incl. cable and cap (N3C-N)
