Dino-Lite AF7115MZT - 5MP WiFi Compatible

Name: Dino-Lite AF7115MZT - 5MP WiFi Compatible
Brand: Dino-Lite
SKU: AF7115MZT
Price: 1,595.00 AUD
Availability: InStock

by Dino-Lite

$1,595.00

Quantity

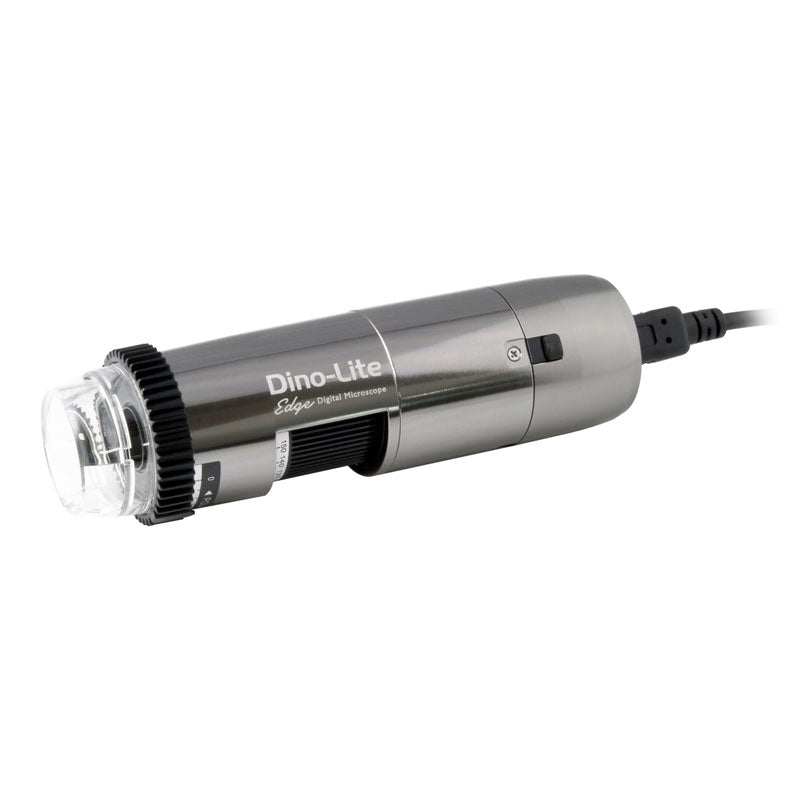

AF7115MZT is a 5-megapixel digital microscope offering high-resolution imaging with a 20x ~ 220x magnification. This model has Flexible LED Control (FLC) for maximizing lighting adjustability and a polarizer for reducing unwanted reflections. AF7115MZT is compatible with WF-20, a Wi-Fi streamer.

This model is wireless-ready but requires the WF-20 adapter for wireless functionality.

High Optical Resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

5.0 Megapixel
The 5-megapixel sensor excels at capturing fine details and can transmit high-quality images at a resolution of 2592 x 1944.

Flexible LED Control (FLC)
Tasking with software, the FLC provides a six-level intensity adjustment capability for each LED quadrant independently.

Adjustable Polarizer
The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.

Adaptable Interface

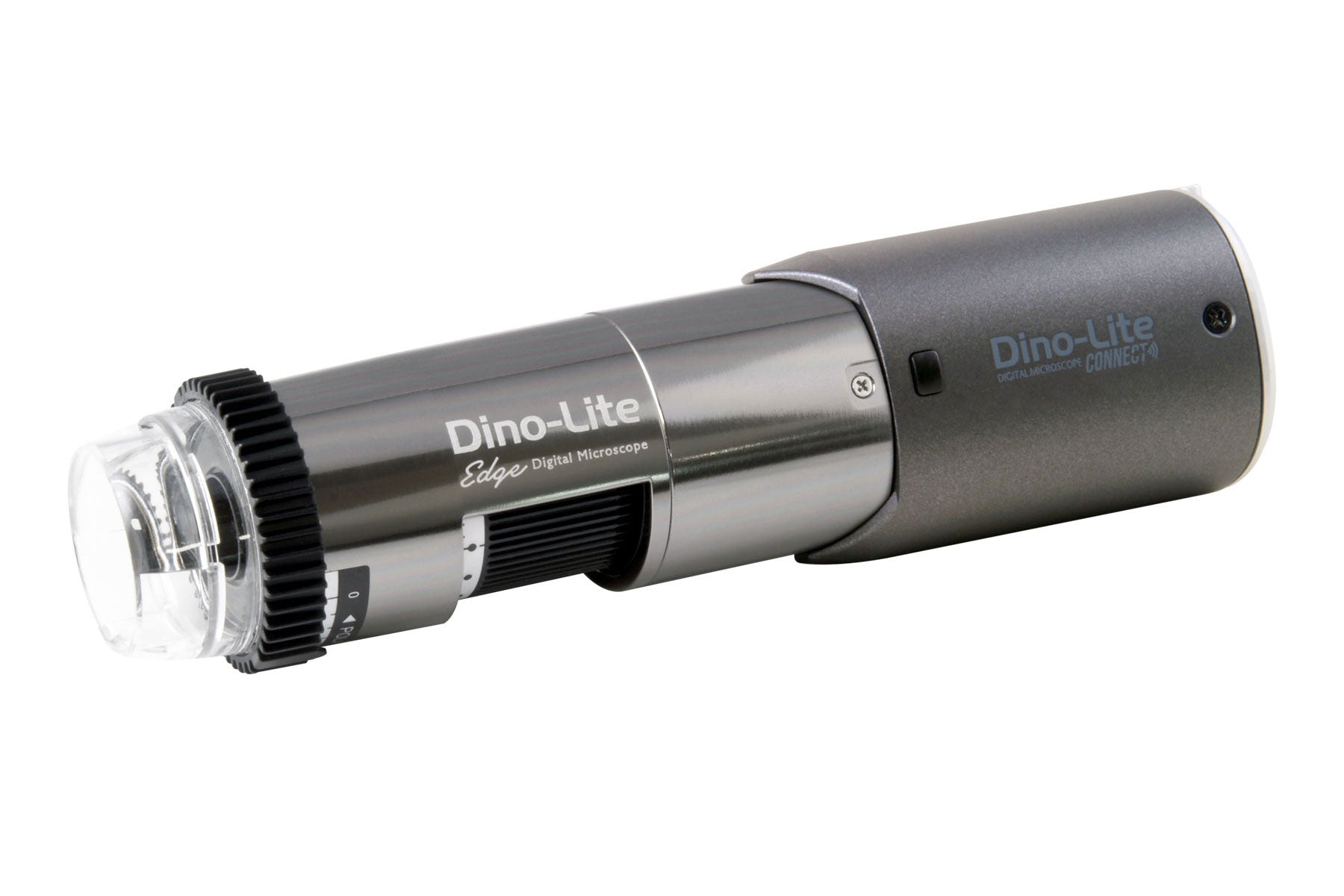

The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20.

Robust Metal Housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.

Information about working distance and field of view

M	WD	FOV (x)	FOV (y)	DOF
10	142.6	39.6	29.7	26.0
20	60.1	19.8	14.8	7.0
30	33.6	13.2	9.9	3.3
40	21.0	9.9	7.4	2.0
50	14.0	7.9	5.9	1.4
60	9.8	6.6	4.9	1.0
70	7.3	5.7	4.2	0.8
80	5.7	4.9	3.7	0.6
90	4.8	4.4	3.3	0.5
100	4.3	4.0	3.0	0.4
110	4.2	3.6	2.7	0.4
120	4.3	3.3	2.5	0.3
130	4.7	3.0	2.3	0.3
140	5.2	2.8	2.1	0.3
150	5.8	2.6	2.0	0.3
160	6.5	2.5	1.9	0.2
170	7.3	2.3	1.8	0.2
180	8.1	2.2	1.6	0.2
190	9.1	2.1	1.6	0.2
200	10.0	2.0	1.5	0.2
210	11.0	1.9	1.4	0.2
220	12.1	1.8	1.3	0.2

M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm

Specification

Model	AF7115MZT
Series	Dino-Lite Edge
Interface	USB 2.0
Resolution	5.0 Megapixel (2592 x 1944)
Magnification	10x ~ 220x
Working Distance	142.6 ~ 12.1 mm
Frame Rate	10 fps at 5.0 MP/3.0 MP, MJPEG 25 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG 10 fps at 1.3 MP, YUY2
System Requirements	CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater RAM: 4 GB or more HD: 150 MB available space or more
Operating System	Windows 7/8/10/11 Mac OS 10.14 or later (EDOF/EDR are NOT available on macOS)
Saving Format	Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Video: DinoCapture 2.0: WMV, FLV, SWF DinoXcope: MOV
Measurement Function	Yes
Calibration Function	Yes
Microtouch	Yes
Scroll Lock	Yes
Illumination	8 white LEDs
Included Front Caps	N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap)
Cable Type	Detachable Micro B – Type-C cable Detachable Micro B – Type-A cable
Cable Length	Approx. 1.8 m
Unit Dimension	115 mm (H) x 34 mm (D)
Unit Weight	Approx. 97 g
