Dino-Lite AF7515MZT - 5MP WiFi Compatible
Original price
$1,725.00
-
Original price
$1,725.00
Original price
$1,725.00
$1,725.00
-
$1,725.00
Current price
$1,725.00
| /

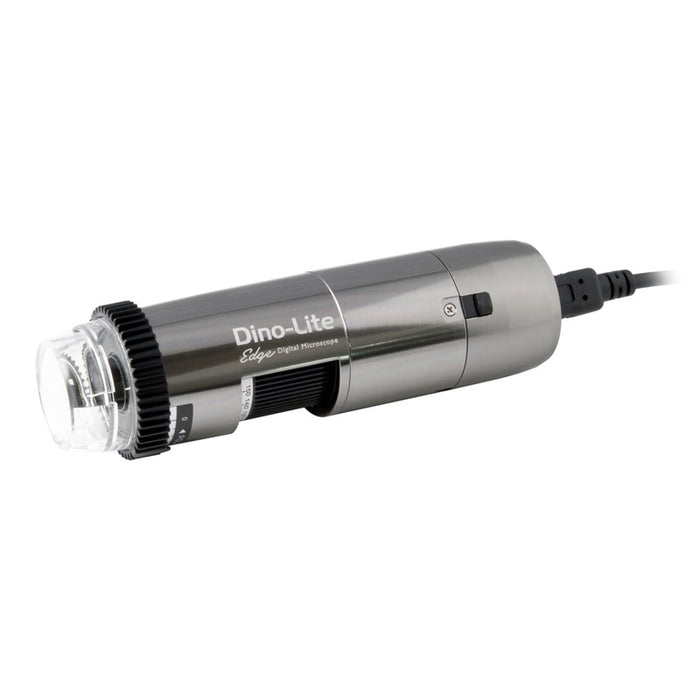

Obtain outstanding image quality and live imaging performance with the 5-megapixel AF7515MZT digital microscope. With advanced features, including AMR and FLC, AF7515MZT is a powerful tool for performing measurements and obtaining high-quality images. The WF-20 Wi-Fi streamer is compatible with AF7515MZT.
This model isĀ wireless-readyĀ but requires theĀ WF-20 adapterĀ for wireless functionality.Ā
| Ā |
 |
Ā |
āHigh Optical Resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
|
|
| Ā |
 |
Ā |
ā5.0 Megapixel
The 5-megapixel sensor excels at capturing fine details and can transmit high-quality images at a resolution of 2592 x 1944.
|
|
| Ā |
 |
Ā |
Flexible LED Control (FLC)
Tasking with software, the FLC provides a six-level intensity adjustment capability for each LED quadrant independently.
|
|
| Ā |
 |
Ā |
āAdjustable Polarizer
The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.
|
|
| Ā |
 |
Ā |
āAutomatic Magnification Reading (AMR)
The AMR feature automatically detects the magnification power in real time, improving measurement efficiency, easing magnification readings, and minimizing input errors in measurement tasks.
|
|
| Ā |
 |
Ā |
āAdaptable Interface

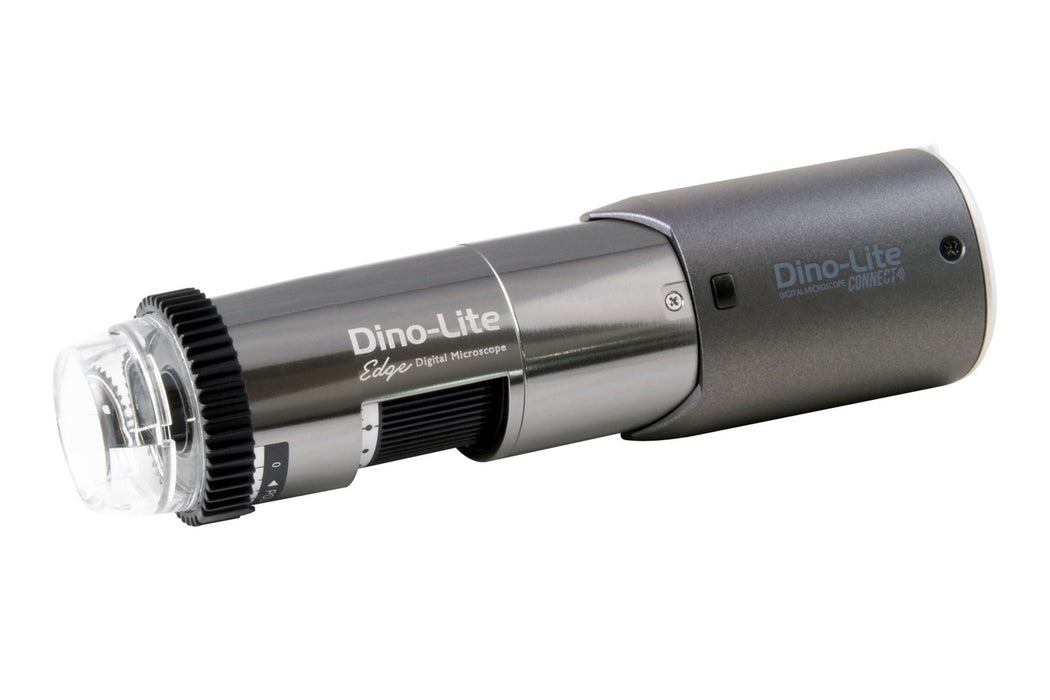

The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20.
|
|
| Ā |
 |
Ā |
āRobust Metal Housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.
|
|
| Ā |
|
Ā |
Information about working distance and field of view
| M |
WD |
FOV (x) |
FOV (y) |
DOF |
| 10 |
142.6 |
39.6 |
29.7 |
26.0 |
| 20 |
60.1 |
19.8 |
14.8 |
7.0 |
| 30 |
33.6 |
13.2 |
9.9 |
3.3 |
| 40 |
21.0 |
9.9 |
7.4 |
2.0 |
| 50 |
14.0 |
7.9 |
5.9 |
1.4 |
| 60 |
9.8 |
6.6 |
4.9 |
1.0 |
| 70 |
7.3 |
5.7 |
4.2 |
0.8 |
| 80 |
5.7 |
4.9 |
3.7 |
0.6 |
| 90 |
4.8 |
4.4 |
3.3 |
0.5 |
| 100 |
4.3 |
4.0 |
3.0 |
0.4 |
| 110 |
4.2 |
3.6 |
2.7 |
0.4 |
| 120 |
4.3 |
3.3 |
2.5 |
0.3 |
| 130 |
4.7 |
3.0 |
2.3 |
0.3 |
| 140 |
5.2 |
2.8 |
2.1 |
0.3 |
| 150 |
5.8 |
2.6 |
2.0 |
0.3 |
| 160 |
6.5 |
2.5 |
1.9 |
0.2 |
| 170 |
7.3 |
2.3 |
1.8 |
0.2 |
| 180 |
8.1 |
2.2 |
1.6 |
0.2 |
| 190 |
9.1 |
2.1 |
1.6 |
0.2 |
| 200 |
10.0 |
2.0 |
1.5 |
0.2 |
| 210 |
11.0 |
1.9 |
1.4 |
0.2 |
| 220 |
12.1 |
1.8 |
1.3 |
0.2 |
|
M = magnification rateĀ Ā Ā Ā Ā WD = working distance (without front cap)Ā Ā Ā Ā Ā FOV = field of viewĀ Ā Ā Ā Ā DOF= depth of fieldĀ Ā Ā Ā Ā Unit = mm
|
|
|
Specification
|
Model
|
AF7515MZT
|
|
Series
|
Dino-Lite Edge
|
|
Interface
|
USB 2.0
|
|
Resolution
|
5.0 Megapixel (2592 x 1944)
|
|
Magnification
|
10x ~ 220x
|
|
Working Distance
|
142.6 ~ 12.1 mm
|
|
Frame Rate
|
10 fps at 5.0 MP/3.0 MP, MJPEG
25 fps at 1.3 MP, MJPEG
30 fps at VGA, MJPEG
Ā
10 fps at 1.3 MP, YUY2
|
|
System Requirements
|
CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater
RAM: 4 GB or more
HD: 150 MB available space or more
|
|
Operating System
|
Windows 7/8/10/11
Mac OS 10.14 or later (EDOF/EDR are NOT available on macOS)
|
|
Saving Format
|
Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG
Video:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
|
|
Measurement Function
|
Yes
|
|
Calibration Function
|
Yes
|
|
Microtouch
|
Yes
|
|
Scroll Lock
|
Yes
|
|
Illumination
|
8 white LEDs
|
|
Included Front Caps
|
N3C-C (Close Cap)
N3C-D (Diffuser Cap)
N3C-D2 (Opal Diffuser Cap)
N3C-E (Extended Open Cap)
N3C-L (Long Cap)
N3C-O (Open Cap)
N3C-S (Sidelight Cap)
|
|
Cable Type
|
Detachable Micro B ā Type-C cable
Detachable Micro B ā Type-A cable
|
|
Cable Length
|
Approx. 1.8 m
|
|
Unit Dimension
|
115 mm (H) x 34 mm (D)
|
|
Unit Weight
|
Approx. 97 g
|
