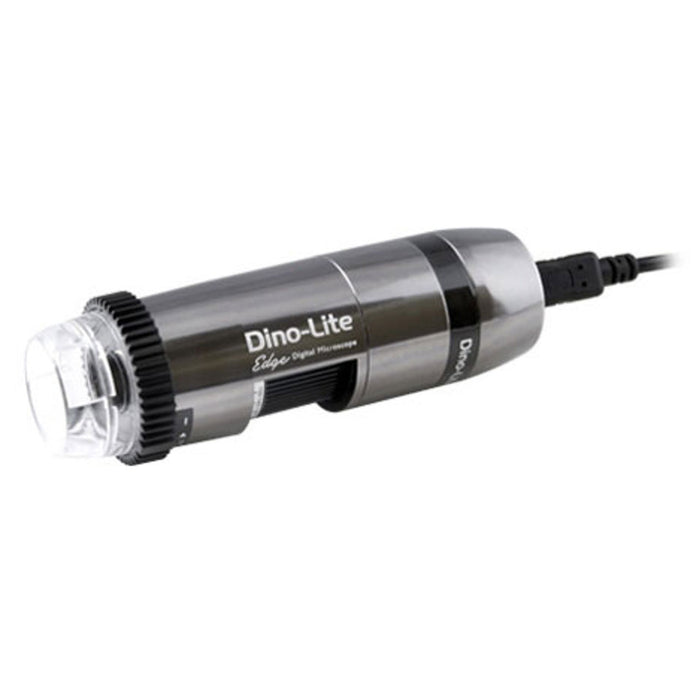

Dino-Lite AM4917MZT
by Dino-Lite
Get outstanding image contrast and color fidelity at 400~470x magnifications with AM4917MZT4 digital microscope. Featuring EDOF, EDR, eFLC, AMR, and depth acquisition capabilities, AM4917MZT4 is an excellent tool for users that require performing a wide range of tasks.
Note: EDOF, EDR, and DPQ are available on Windows PC only.
|
|
|
1.3 Megapixels Thanks to MJPEG compression, the advanced CMOS image sensor can transmit fluid and crisp images at 30 FPS with resolution up to 1280x960.
|
|
|
|
|
Depth acquisition (DPQ) The delicate focus control of this model allows for the acquisition of more useful depth information.
|
|
|
|
|
Extended Depth of Field (EDOF) Viewing rough surface with height range out of depth of focus, the EDOF can take several images at different focus and stack them automatically within a click.
|
|
|
|
|
Extended Dynamic Range (EDR) Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.
|
|
|
|
|
Automatic Magnification Reading (AMR) Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.
|
|
|
|
|
Flexible LED Control (FLC) Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control of the four LED quadrants in addition to the 6-levels intensity adjustment capability.
|
|
|
|
|
Enhanced Flexible LED Control (eFLC) Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-levels light intensity adjustments.
Note: eFLC is available for AM4917MZT(R10) only.
|
|
|
|
|
Robust metallic housing The robust metal housing made of anodized alloy protects the Dino-lite from UV and electromagnetic interferences.
|
|
|
|
|
Adjustable polarizer The built-in adjustable polarizer allows to remove freely the unwanted reflection or glare from the object surface for a better contrast.
|
|
|
|
|
Scroll Lock The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
|
|
|
|
|
Interchangeable caps The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.
|
|
|
|
|
Interchangeable front caps The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.
|
N3C-C / Close Cap This cap protects the lens and LED lights from contamination of dust, debris, or moisture. |
|
N3C-D / Diffuser Cap This is a translucent cap that partially softens the LED light.
|
|
N3C-D2 / Opal Diffuser Cap This cap softens and evenly distributes the LED light.
|
|
N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
|
|
N3C-L / Long Cap (30mm length) This cap assists users to find focus quickly at low magnification when it touches surface.
|
|
N3C-O / Open Cap (9.5mm length) This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
|
|
N3C-S / Sidelight Cap Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.
|
|
Note: The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.
|
|
|
|
|
Information about working distance and field of view
M |
WD |
FOV (x) |
FOV (y) |
DOF |
20 |
59.5 |
19.5 |
14.7 |
5.36 |
30 |
32.9 |
13.0 |
9.8 |
2.58 |
40 |
20.2 |
9.8 |
7.3 |
1.56 |
50 |
13.2 |
7.8 |
5.9 |
1.07 |
60 |
9 |
6.5 |
4.9 |
0.79 |
70 |
6.4 |
5.6 |
4.2 |
0.62 |
80 |
4.8 |
4.9 |
3.7 |
0.5 |
90 |
4 |
4.3 |
3.3 |
0.42 |
100 |
3.5 |
3.9 |
2.9 |
0.36 |
110 |
3.3 |
3.6 |
2.7 |
0.31 |
120 |
3.5 |
3.3 |
2.4 |
0.27 |
130 |
3.8 |
3.0 |
2.3 |
0.24 |
140 |
4.3 |
2.8 |
2.1 |
0.22 |
150 |
4.9 |
2.6 |
2.0 |
0.2 |
160 |
5.6 |
2.4 |
1.8 |
0.18 |
170 |
6.4 |
2.3 |
1.7 |
0.17 |
180 |
7.3 |
2.2 |
1.6 |
0.15 |
190 |
8.2 |
2.1 |
1.5 |
0.14 |
200 |
9.2 |
2.0 |
1.5 |
0.13 |
210 |
10.2 |
1.9 |
1.4 |
0.13 |
220 |
11.3 |
1.8 |
1.3 |
0.12 |
|
M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
|
|
|
Specifications:
Model AM4917MZT Dino-Lite EdgePLUS
Interface: USB 2.0
Product Resolution: 1.3M pixels (1280x960)
Magnification: 20x~220x
Frame Rate: 30fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Saving Format Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG
Video:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 8 white LEDs
Microtouch Yes
Operating System Supported Windows 7/8/10/11
macOS 10.14 or later
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.5cm (H) x 3.3cm (D)
Unit Weight 130g
