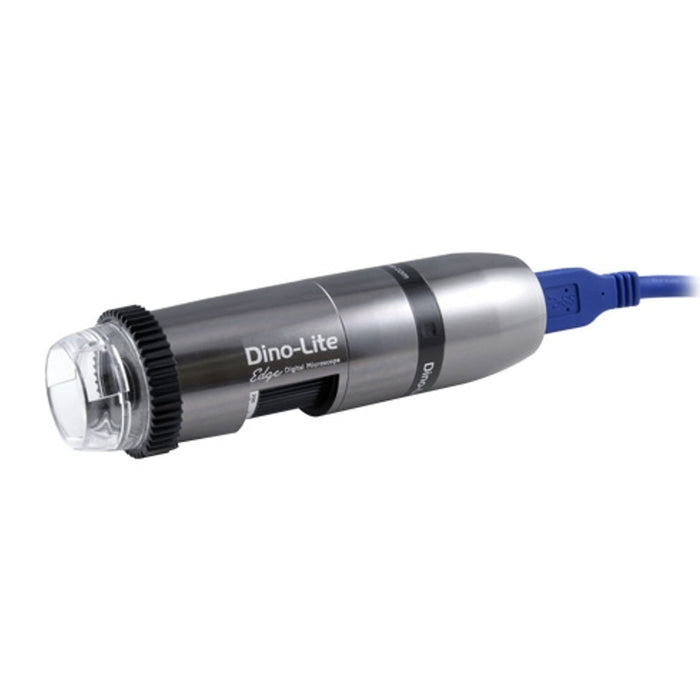

Dino-Lite AM73915MZT4
by Dino-Lite
As magnification increases, targets with uneven surfaces are often out of focus due to the limited depth of field. The 5.0 MP Edge 3.0 AM73915MZT4 400x - 470x microscope offers a click-to-focus functionality for automatic focusing to the point of interest and also features EDOF for generating focus-stacked images. Equipped with a polarizer and advanced features like DPQ, eFLC, AMR, and EDR, Edge 3.0 AM73915MZT4 is a robust tool ready to tackle a variety of tasks.
Note: EDOF, EDR, and DPQ are available on Windows PC only.
|
|
|
High-Speed transmission Through the use of USB 3.0 interface, the device is capable to obtain smooth and high-quality image at up to 15 fps at 2560 x 1920 or 45 fps at 1280 x 960.
|
|
|
|
|
5.0 Megapixels The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2560 x 1920 without compression.
|
|
|
|
|
Extended Depth of Field (EDOF) Viewing rough surfaces with height range out of depth of focus, the EDOF can take several images at different focus and stack them automatically within a click.
|
|
|
|
|
Depth Acquisition (DPQ) The delicate focus control of this model allows for the acquisition of more accurate depths information.
|
|
|
|
|
Enhanced Flexible LED Control (eFLC) Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with a 32-level light intensity adjustment.
|
|
|
|
|
Extended Dynamic Range (EDR) Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.
|
|
|
|
|
Automatic Magnification Reading (AMR) Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.
|
|
|
|
|
Adjustable Polarizer The built-in adjustable polarizer removes the unwanted reflection or glare from the object's surface for better contrast.
|
|
|
|
|
Robust Metallic Housing The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interferences.
|
|
|
|
|
Scroll Lock For tasks requiring a fixed magnification position for long periods, lock the focus knob, and avoid any unintentional focus shift.
|
|
|
|
|
Interchangeable Front Caps The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.
|
N3C-C / Close Cap This cap protects the lens and LED lights from contamination of dust, debris, or moisture. |
|
N3C-E / Extended Open Cap (12.5 mm length) This 12.5 mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
|
|
N3C-O / Open Cap (9.5 mm length) This 9.5 mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
|
|
Note: The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.
|
|
|
|
|
Information about working distance and field of view
M |
WD |
FOV (x) |
FOV (y) |
DOF |
400 |
5.68 |
0.977 |
0.732 |
0.041 |
410 |
6.63 |
0.953 |
0.715 |
0.040 |
420 |
7.59 |
0.930 |
0.698 |
0.039 |
430 |
8.55 |
0.909 |
0.681 |
0.038 |
440 |
9.51 |
0.888 |
0.666 |
0.038 |
450 |
9.62 |
0.868 |
0.651 |
0.037 |
460 |
9.56 |
0.849 |
0.637 |
0.036 |
470 |
9.50 |
0.831 |
0.623 |
0.036 |
|
M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
|
|
|
Model |
AM73915MZT4 Dino-Lite Edge 3.0
|
Interface |
USB 3.0
|
Product Resolution |
5.0 MP (2560 x 1920)
|
Magnification |
400x ~ 470x
|
Frame Rate |
15 fps at 5 MP, YUY2 (USB 3.0) 45 fps at 1.3 MP, YUY2 (USB 3.0)
15 fps at 1.3 MP, YUY2 (USB 2.0)
|
Saving Format |
Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG
Video: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
|
Lighting |
8 white LEDs
|
Polarizer |
Yes
|
Microtouch |
Yes
|
Operating System Supported |
Windows 7/8/10/11 macOS 10.14 or later (EDOF/EDR/DPQ are NOT controllable on macOS) |
Calibration Function |
Yes |
Measurement Function |
Yes
|
Unit Dimension |
11.9 cm (H) x 3.3 cm (D)
|
Unit Weight |
110 g |
