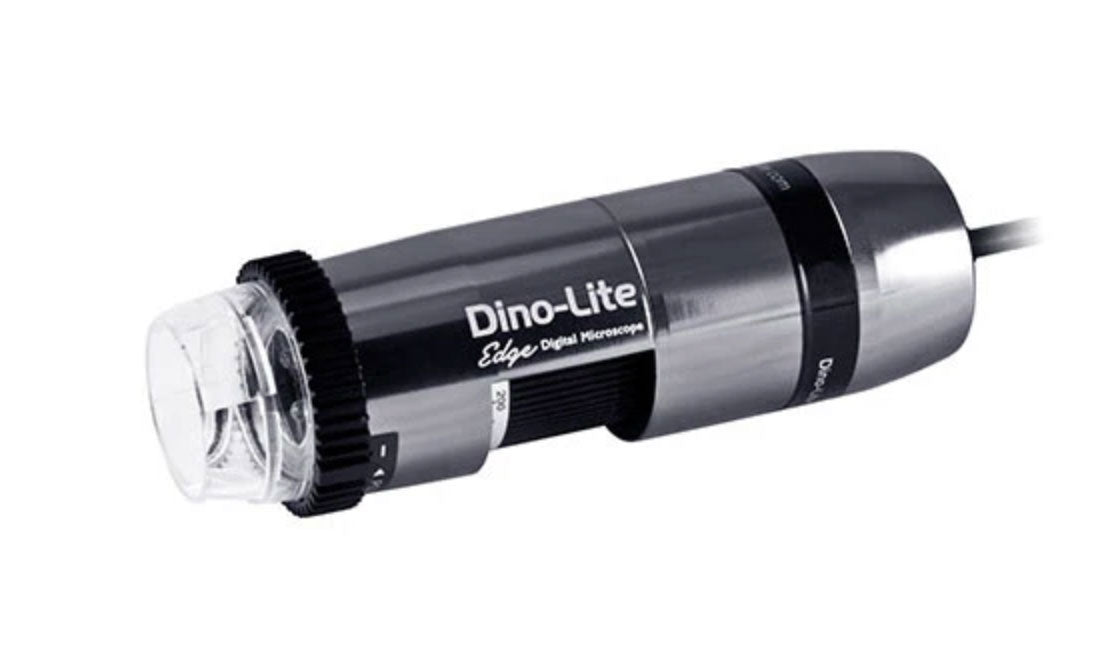

Dino-Lite AM7515MZT

by Dino-Lite
$1,495.00

The AM7515MZT was made to be tool of choice for measurement-oriented industrial applications, adding efficiency and accuracy of measurement with AMR to the Dino-Lite 5MP Edge series. Not to mention, the AM7515MZT delivers stunningly sharp and fluid image, and it provides illumination freedom through the use of FLC, polarizer and interchangeable caps.

  High optical resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

  5.0 Megapixels
Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944.

  Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.

  Automatic Magnification Reading (AMR)
Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.

  Adjustable polarizer
The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.

  Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

  Robust housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.

  Interchangeable caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.

  Interchangeable front caps
  N3C-C / Close Cap
  This cap protects the lens and LED lights from contamination of dust, debris, or moisture.

  N3C-D / Diffuser Cap
  This cap diffuses the LED light.

  N3C-D2 / Opal Diffuser Cap
  This cap diffuses the LED light.

  N3C-E / Extended Open Cap
  Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.

  N3C-L / Long Cap
  This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.

  N3C-O / Open Cap
  This is the standard cap for normal usage.

  N3C-S / Sidelight Cap
  This cap creates images with more depth and texture.



Model AM7515MZT Dino-Lite Edge
Interface USB 2.0
Product Resolution 5M pixels (2592x1944)
Magnification 20x~220x
Frame Rate 10fps in 5MP/3MP/2MP, MJPEG
25fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Lighting 8 white LEDs
Polarizer Yes
Microtouch Yes
Operating System Supported Windows 10, 8, 7, Vista, XP
Mac OS 10.12 ~ 10.14
System Requirements ‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
‧ 20GB available HD space
‧ 2GB available RAM or more
‧ 512MB video card or more
‧ CD-ROM drive for installation
‧ USB 2.0
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.5cm (H) x 3.2cm (D)
Unit Weight 135g
