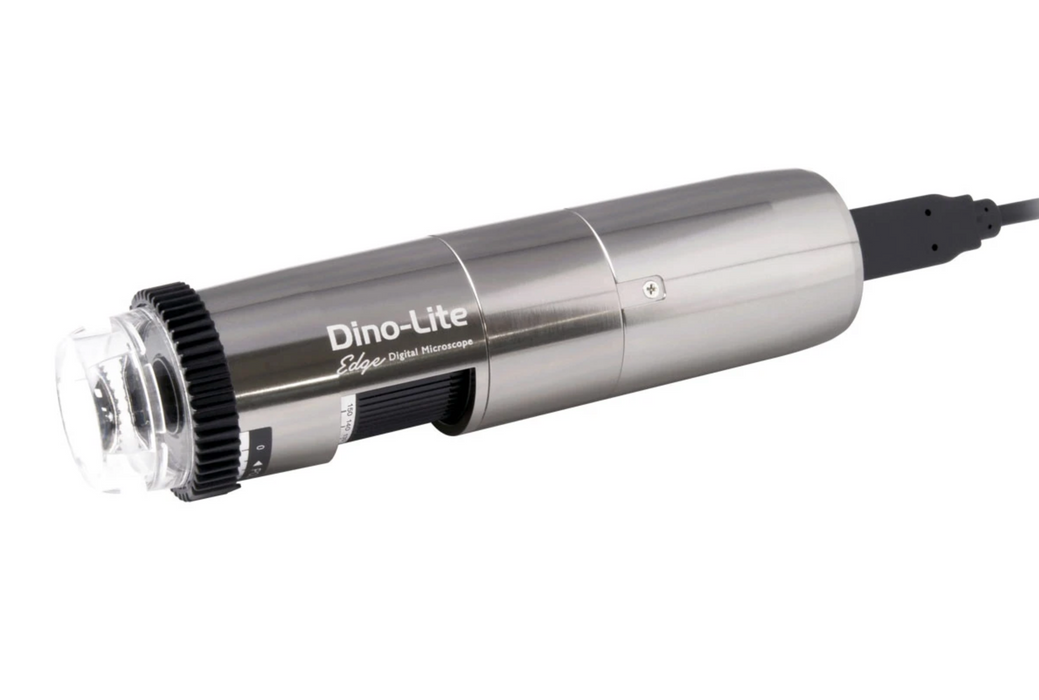

Dino-Lite AM83517MZT

Leveraging high-speed USB 3.0, the 8-megapixel AM83517MZT delivers fluid, uncompressed YUY2 high-fidelity imaging, allowing for more detailed and thorough inspections. Equipped with EDR, eFLC, an adjustable polarizer, and AMR, this model supports a wide range of professional observation and measurement tasks.

High-Speed Transmission

The USB 3.0 interface enables smooth, responsive live imaging in uncompressed YUY2 with immediate visual feedback, while preserving crisp edge definition and subtle color gradation. Frame rates reach up to 15 fps at 8 MP and 60 fps at 2 MP.

High Quality Optics

The optics adopted in the Edge series reveal the finest details, answering the needs of the most demanding microscopy applications.

8 Megapixel

This high-resolution sensor combines 8-megapixel resolution with enhanced low-light performance, natural-looking color reproduction, and well-defined image contrast, delivering detailed 3840 × 2160 imaging in a 16:9 format.

Adjustable Polarizer

The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.

Enhanced Flexible LED Control (eFLC)

Improving FLC capabilities, the eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with a 32-level light intensity adjustment.

Extended Dynamic Range (EDR)

Observing high contrast or reflective surfaces, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.

Automatic Magnification Readout (AMR)

The Automatic Magnification Readout (AMR) detects the magnification in use, eliminating manual input errors and enhancing measurement accuracy in tasks with frequent magnification adjustments.

Robust Metal Housing

The anodised aluminium alloy housing offers durability and EMI shielding, effectively guarding against impacts, abrasions, and electromagnetic noise.
