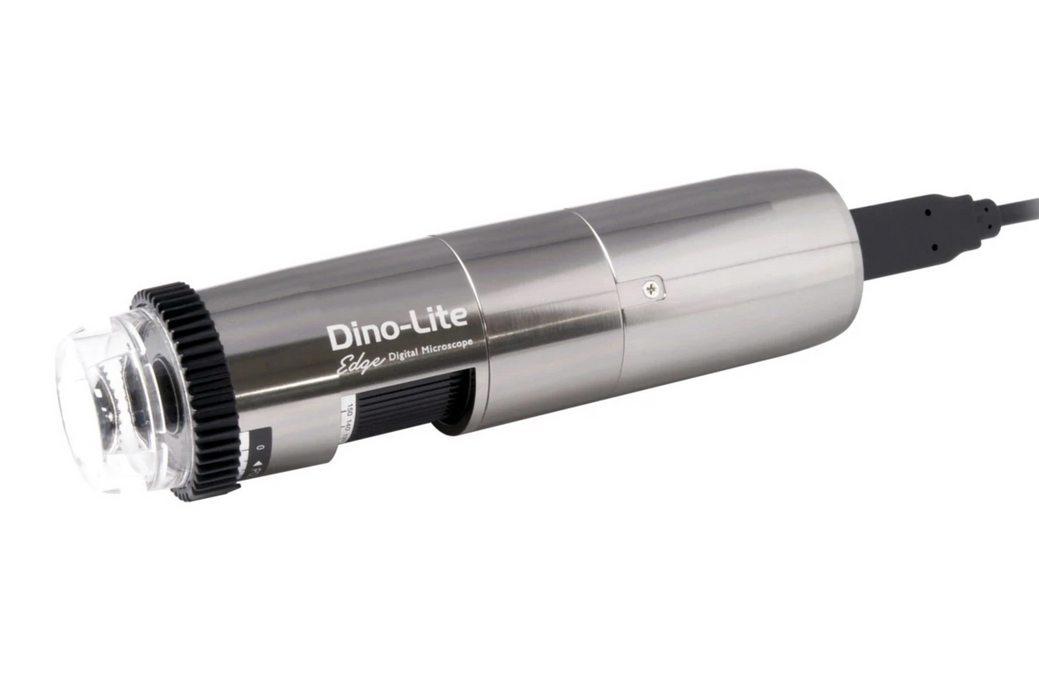

Dino-Lite AM83917MZT

Designed to support demanding observation tasks, the 8-megapixel AM83917MZT utilises high-speed USB 3.0 to deliver fluid, uncompressed, high-fidelity imaging, which enables a finer and more comprehensive view of the target. Beyond image fidelity, EDOF, DPQ, EDR, eFLC, an adjustable polariser, and AMR are seamlessly integrated into a sophisticated imaging platform for reliable inspection, analysis, and documentation.

High-Speed Transmission

The USB 3.0 interface enables smooth, responsive live imaging in uncompressed YUY2 with immediate visual feedback, while preserving crisp edge definition and subtle colour gradation. Frame rates reach up to 15 fps at 8 MP and 60 fps at 2 MP.

High Quality Optics

The optics adopted in the Edge series reveal the finest details, answering the needs of the most demanding microscopy applications.

8 Megapixel

This high-resolution sensor combines 8-megapixel resolution with enhanced low-light performance, natural-looking colour reproduction, and well-defined image contrast delivering detailed 3840 × 2160 imaging in a 16:9 format.

Adjustable Polariser

The built-in adjustable polariser removes unwanted reflection or glare from the object's surface for better contrast.

Enhanced Flexible LED Control (eFLC)

Improving FLC capabilities, the eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with a 32-level light intensity adjustment.

Depth Acquisition (DPQ)

The delicate focus control of this model allows for the acquisition of more accurate depth

Extended Depth of Field (EDOF)

Viewing rough surfaces with height ranges out of depth of focus, the EDOF can take several images at different focuses and stack them automatically within a click.

Extended Dynamic Range (EDR)

Observing high-contrast or reflective surfaces, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.

Auto and Manual Refocus

Using mouse inputs, the refocusing capability helps fine-tune the focus, either automatically by clicking at the point of interest or manually by scrolling the mouse.

Automatic Magnification Readout (AMR)

The Automatic Magnification Readout (AMR) detects the magnification in use, eliminating manual input errors and enhancing measurement accuracy in tasks with frequent magnification adjustments.

Robust Metal Housing

The anodised aluminium alloy housing offers durability and EMI shielding, effectively. guarding against impacts, abrasions, and electromagnetic noise.
