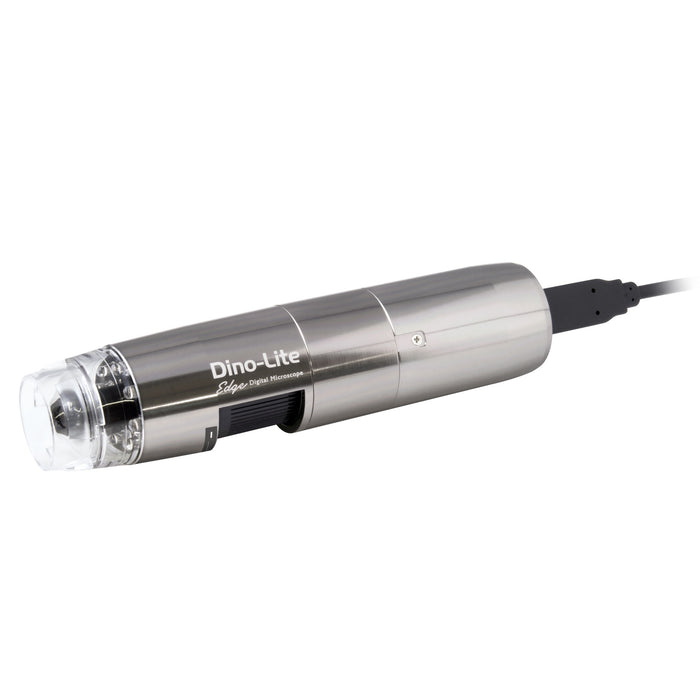

Dino-Lite AM8917MT8

Introducing EDOF on AM8917MT8 for generating images with an extended depth of field, this 8-megapixel 700x ~ 900x digital microscope provides a clear imaging experience and is equipped with a range of tools for professional use such as DPQ, refocus mode, AMR, and eFLC.

Note: EDOF, EDR, DPQ, and Auto/Manual Refocus are available on Windows PC only.

Model	AM8917MT8
Series	Dino-Lite EdgePLUS
Interface	USB 2.0
Full Resolution	8.0 Megapixel (3840 x 2160) on DinoCapture (Windows) 6.0 Megapixel (2880 x 2160) on DinoXcope (macOS)
Magnification	700x ~ 900x
Frame Rate	10 fps at 8.0 MP / 6.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG
System Requirements	CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater RAM: 4 GB or more HD: 150 MB available space or more
Operating System	Windows 10/11 macOS 10.14 or later (EDOF, EDR, DPQ and Auto/Manual Refocus are NOT supported in DinoXcope)
Saving Format	Image: DinoCapture 2.0: BMP, PNG, TIF, JPG DinoCapture 3.0: BMP, PNG, TIF, JPG DinoXcope: PNG, JPEG Video: DinoCapture 2.0: WMV, FLV, SWF DinoCapture 3.0: MP4 DinoXcope: MOV
Measurement Function	Yes
Calibration Function	Yes
Microtouch	Yes
Scroll Lock	Yes
Illumination	White Light, 8 LEDs
Included Front Caps	N3C-C (Close Cap) N3C-E (Extended Open Cap) N3C-O (Open Cap)
Cable Type	Type-C to Type-C cable (detachable, w/screw lock) Type-C to Type-A cable (detachable, w/screw lock)
Cable Length	Approx. 1.8 m
Unit Dimension	133 mm (H) x 32 mm (D)
Unit Weight	Approx. 120 g
