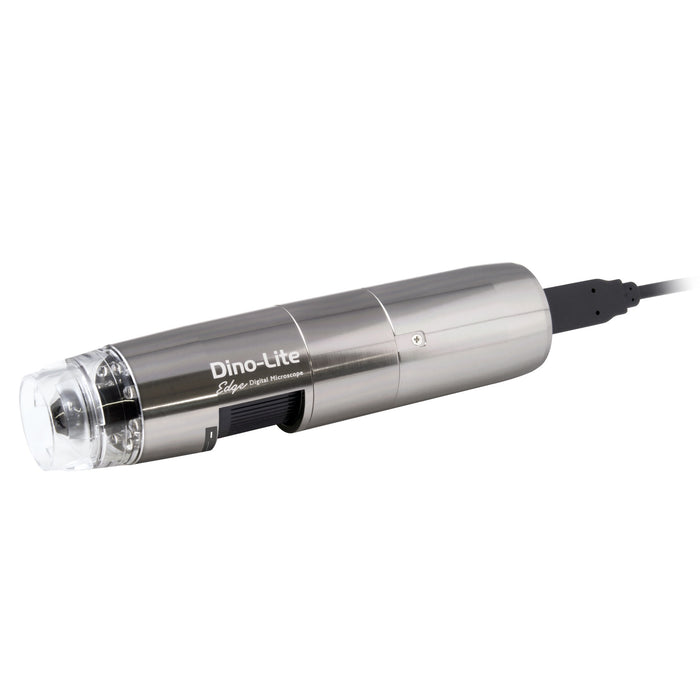

Dino-Lite AM8917MT8A

Equipped with coaxial light, EDOF, and many other sophisticated features, AM8917MT8A is an 800x microscope ideal for viewing reflective surfaces and delivering all-in-focus images. The AM8917MT8A includes DPQ, EDR, AMR, and Auto and Manual Refocus.

Note: EDOF, EDR, DPQ, and Auto/Manual Refocus are available on Windows PC only.

Model AM8917MT8A Series Dino-Lite EdgePLUS Interface USB 2.0 Full Resolution 8.0 Megapixel (3840 x 2160) on DinoCapture (Windows) 6.0 Megapixel (2880 x 2160) on DinoXcope (macOS) Magnification 700x ~ 900x Frame Rate 10 fps at 8.0 MP / 6.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG System Requirements CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater RAM: 4 GB or more HD: 150 MB available space or more Operating System Windows 10/11 macOS 10.14 or later (EDOF, EDR, DPQ and Auto/Manual Refocus are NOT supported in DinoXcope) Saving Format Image: DinoCapture 2.0: BMP, PNG, TIF, JPG DinoCapture 3.0: BMP, PNG, TIF, JPG DinoXcope: PNG, JPEG Video: DinoCapture 2.0: WMV, FLV, SWF DinoCapture 3.0: MP4 DinoXcope: MOV Measurement Function Yes Calibration Function Yes Microtouch Yes Scroll Lock Yes Illumination White Light, 8 LEDs Included Front Caps N3C-C (Close Cap) N3C-E (Extended Open Cap) N3C-O (Open Cap) Cable Type Type-C to Type-C cable (detachable, w/screw lock) Type-C to Type-A cable (detachable, w/screw lock) Cable Length Approx. 1.8 m Unit Dimension 133 mm (H) x 32 mm (D) Unit Weight Approx. 124 g
