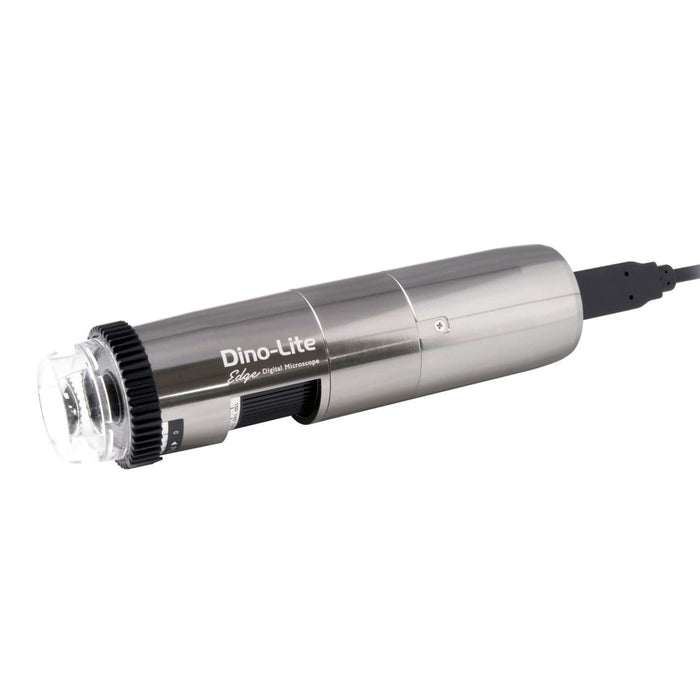

Pushing the limits of handheld digital microscopy, the 8-megapixel AM8917MZT is a high-resolution digital microscope capable of revealing the minute details of the target. The microscope also delivers outstanding color fidelity, enhancing the imaging experience with detailed and natural-looking results. Ready to perform a wide range of tasks, AM8917MZT offers a polarizer as well as DPQ, EDOF, EDR, AMR, and eFLC.
High Quality Optics
The optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
8.0 Megapixel
The 8.0-megapixel sensor captures a large field of view with a 16:9 aspect ratio and delivers natural-looking colors and enhanced image contrast at a resolution of up to 3840 x 2160.
Enhanced Flexible LED Control (eFLC)
Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-level light intensity adjustment.
Adjustable Polarizer
The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.
Depth Acquisition (DPQ)
The delicate focus control of this model allows for the acquisition of more accurate depth information.
Extended Depth of Field (EDOF)
Viewing rough surfaces with height ranges out of depth of focus, the EDOF can take several images at different focuses and stack them automatically within a click.
Extended Dynamic Range (EDR)
Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.
Auto and Manual Refocus
Using mouse inputs, the refocusing capability helps fine-tune the focus, either automatically by clicking at the point of interest or manually by scrolling the mouse.
Automatic Magnification Reading (AMR)
The AMR feature automatically detects the magnification power in real time, improving measurement efficiency, easing magnification readings, and minimizing input errors in measurement tasks.
Robust Metal Housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.
Optical Data Table
|
M
|
WD
|
FOV (x)
|
FOV (y)
|
DOF
|
|
10
|
142.6
|
60.69
|
34.14
|
26.01
|
|
20
|
60.1
|
30.35
|
17.07
|
7.01
|
|
30
|
33.6
|
20.23
|
11.38
|
3.34
|
|
40
|
21.0
|
15.17
|
8.53
|
2.01
|
|
50
|
14.0
|
12.14
|
6.83
|
1.37
|
|
60
|
9.8
|
10.11
|
5.69
|
1.01
|
|
70
|
7.3
|
8.67
|
4.88
|
0.78
|
|
80
|
5.7
|
7.59
|
4.27
|
0.63
|
|
90
|
4.8
|
6.74
|
3.79
|
0.52
|
|
100
|
4.3
|
6.07
|
3.41
|
0.44
|
|
110
|
4.2
|
5.52
|
3.10
|
0.38
|
|
120
|
4.3
|
5.06
|
2.85
|
0.34
|
|
130
|
4.7
|
4.67
|
2.63
|
0.31
|
|
140
|
5.2
|
4.34
|
2.44
|
0.28
|
|
150
|
5.8
|
4.05
|
2.28
|
0.26
|
|
160
|
6.5
|
3.79
|
2.13
|
0.24
|
|
170
|
7.3
|
3.57
|
2.01
|
0.22
|
|
180
|
8.1
|
3.37
|
1.90
|
0.20
|
|
190
|
9.1
|
3.20
|
1.80
|
0.19
|
|
200
|
10.0
|
3.03
|
1.71
|
0.18
|
|
210
|
11.0
|
2.89
|
1.63
|
0.17
|
|
220
|
12.1
|
2.76
|
1.55
|
0.16
|
|
|
M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
|
|
|
Model
|
AM8917MZT
|
|
Series
|
Dino-Lite EdgePLUS
|
|
Interface
|
USB 2.0
|
|
Full Resolution
|
8.0 Megapixel (3840 x 2160) on DinoCapture (Windows)
6.0 Megapixel (2880 x 2160) on DinoXcope (macOS)
|
|
Magnification
|
10x ~ 220x
(Edge shading occurs below 25x when previewing in 16:9 windows.)
|
|
Frame Rate
|
10 fps at 8.0 MP / 6.0 MP, MJPEG
25 fps at 2.0 MP, MJPEG
|
|
System Requirements
|
CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater
RAM: 4 GB or more
HD: 150 MB available space or more
|
|
Operating System
|
Windows 10/11
macOS 10.14 or later (EDOF, EDR, DPQ and Auto/Manual Refocus are NOT supported in DinoXcope)
|
|
Saving Format
|
Image:
DinoCapture 2.0: BMP, PNG, TIF, JPG
DinoCapture 3.0: BMP, PNG, TIF, JPG
DinoXcope: PNG, JPEG
Video:
DinoCapture 2.0: WMV, FLV, SWF
DinoCapture 3.0: MP4
DinoXcope: MOV
|
|
Measurement Function
|
Yes
|
|
Calibration Function
|
Yes
|
|
Microtouch
|
Yes
|
|
Scroll Lock
|
Yes
|
|
Illumination
|
White Light, 8 LEDs
|
|
Included Front Caps
|
N3C-C (Close Cap)
N3C-D (Diffuser Cap)
N3C-D2 (Opal Diffuser Cap)
N3C-E (Extended Open Cap)
N3C-L (Long Cap)
N3C-O (Open Cap)
N3C-S (Sidelight Cap)
|
|
Cable Type
|
Type-C to Type-C cable (detachable, w/screw lock)
Type-C to Type-A cable (detachable, w/screw lock)
|
|
Cable Length
|
Approx. 1.8 m
|
|
Unit Dimension
|
130 mm (H) x 33 mm (D)
|
|
Unit Weight
|
Approx. 120 g
|
