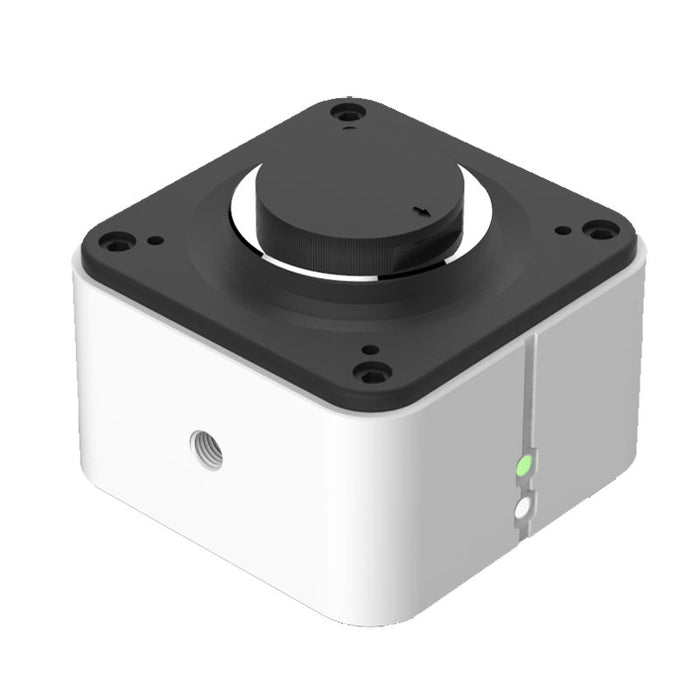

Michrome Pro 5 - Fluorescence

by Tucsen
$2,295.00

Professional Imaging Performance for Brightfield, Darkfield, Phase Contrast & Fluorescence Microscopy.

Sony professional CMOS sensor

Uses a Sony 5 megapixel CMOS 2/3” sensor-IMX264, with 3.45 x 3.45 μm pixels. The resolution of the captured image can reach 2448 x 2048. Images taken at low magnification readily resolved.

Real-time depth-of-field fusion

General microscopes focus only on shallow depth planes. To acquire large depth-of-field images, multiple static images of different focal points need to be post-processed. Reason, the operation is difficult and cumbersome. Mosaic V 2.0 revolutionises the " real-time depth of field fusion " , which produces perfect results just by turning the focus ring to switch the depth.

Real-time image stitching

Due to limited field of view, in order to obtain large-field images in the past, it was necessary to perform on multiple static images in different positions. Mosaic 2.0 core breaks out “ real-time image stitching ” , which can generate mosaic images while moving the stage. Just one click, stitching effect is immediate with a mosaic frame up to 10000x10000 resolution.

Stable high-speed transmission

USB 3.0 high-speed transmission interface, simple and convenient while ensuring a stable High transmission rate which allows fast focusing at high resolution. Imaging can be performed at a rate of 35 fps.

Excellent color reproduction

The use of Tucsen’s core ISP colour interpolation algorithm effectively corrects the colour deviation of the sensor’s spectral response,to simulate the human eye’s sensitivity to colour. The true colour in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.

Advanced Global Shutter Technology

With global shutter technology, all pixels are exposed simultaneously, which allows accurate tracking and capture of dynamic samples and provides, crisp, undistorted, clear images of fast moving specimens.

Revolutionary computational imaging software,workflow-based design, with a dramatically improved user experience!

From the user's point of view, taking into account the best operating procedures, through modular design, redefining the image acquisition - editing - measurement - report output workflow process. The inclusion of Tucsen’s latest image processing algorithm, greatly saves the operating time, effectively improving productivity.

Technical Features:

 Sensor Model

  IMX 264 LQR-C

 Sensor Type

  CMOS

 Sensor Size

  2/3"

 Color / Mono

  Color

 Pixel Size

  3.45 x 3.45 um

 Resolution

  2448(H) x 2048(V)

 Frame

  35fps @ 5MP

 Shutter Mode

  Global

 Exposure Time

  0.12ms ~ 15s

 Automatic Set

  Exposure , Color Scale, White Balance

 Manually Set

  Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction

 Color Temperature

  2000 ~ 15000K

 ADC Depth

  12Bit

 PC Software

  Mosaic V 2.0

 Picture Format

  JPG / PNG / TIFF

 Operating System

  Windows / Linux / Mac

 Multiple Cameras

  Supports 4 Cameras Simultaneously

 Data Interface

  USB 3.0

 Optical Interface

  Standard C Mount

 Camera Size

  68 x 68 x 46 mm

 Camera Weight

  330g

 Operating Temperature   0 - 60︒C
