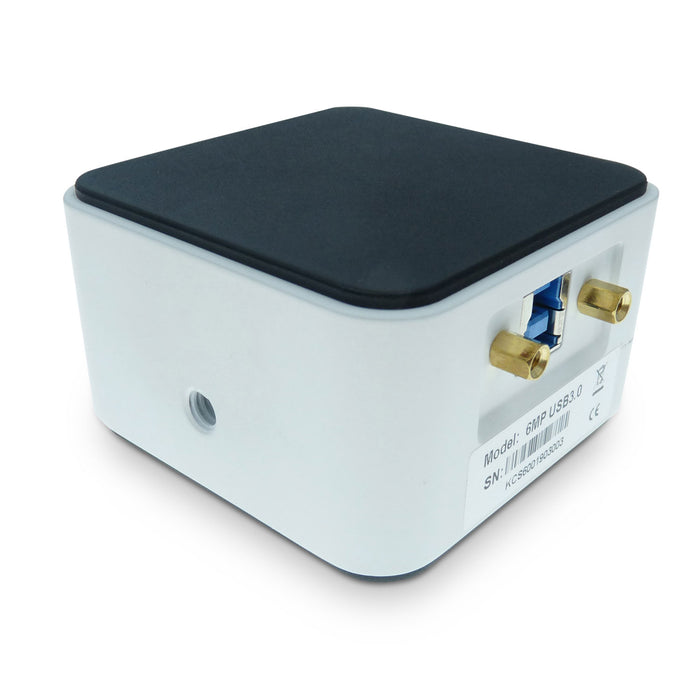

MIchrome 6 - 6 Megapixels Resolution

by Tucsen
$1,295.00

6 Megapixel (3072 x 2048 Resolution) 40fps

Sony professional CMOS sensor

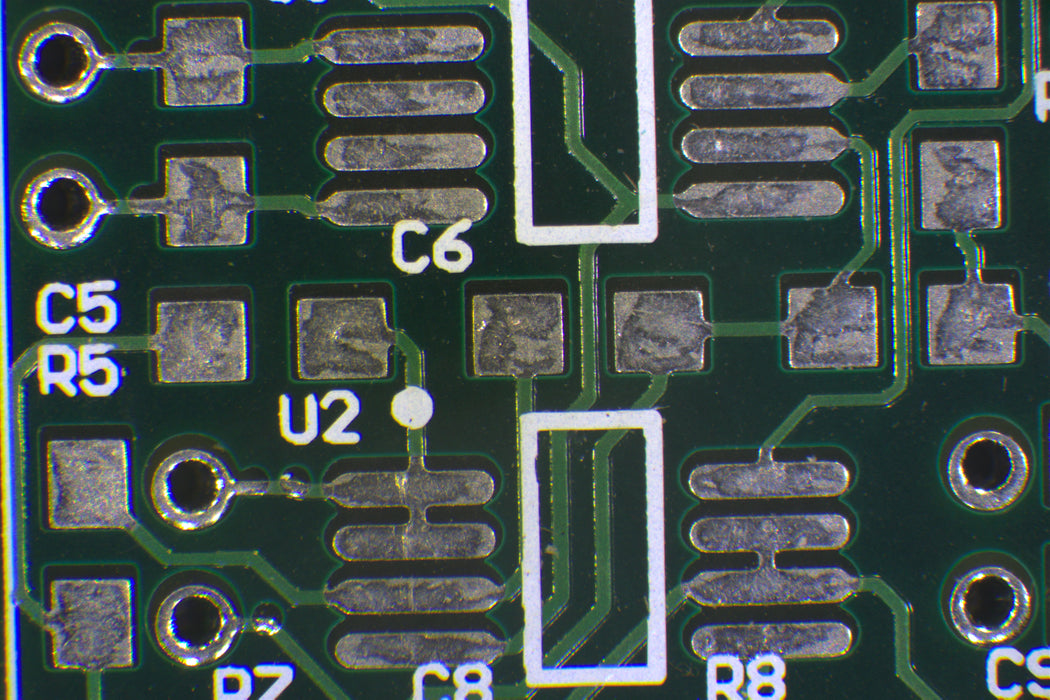

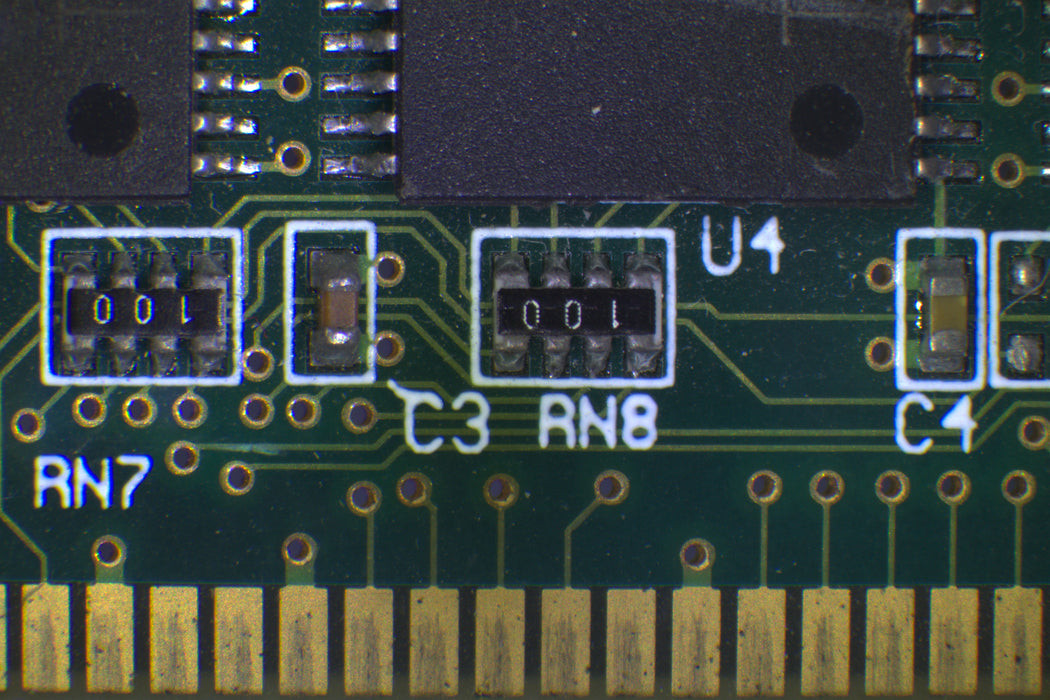

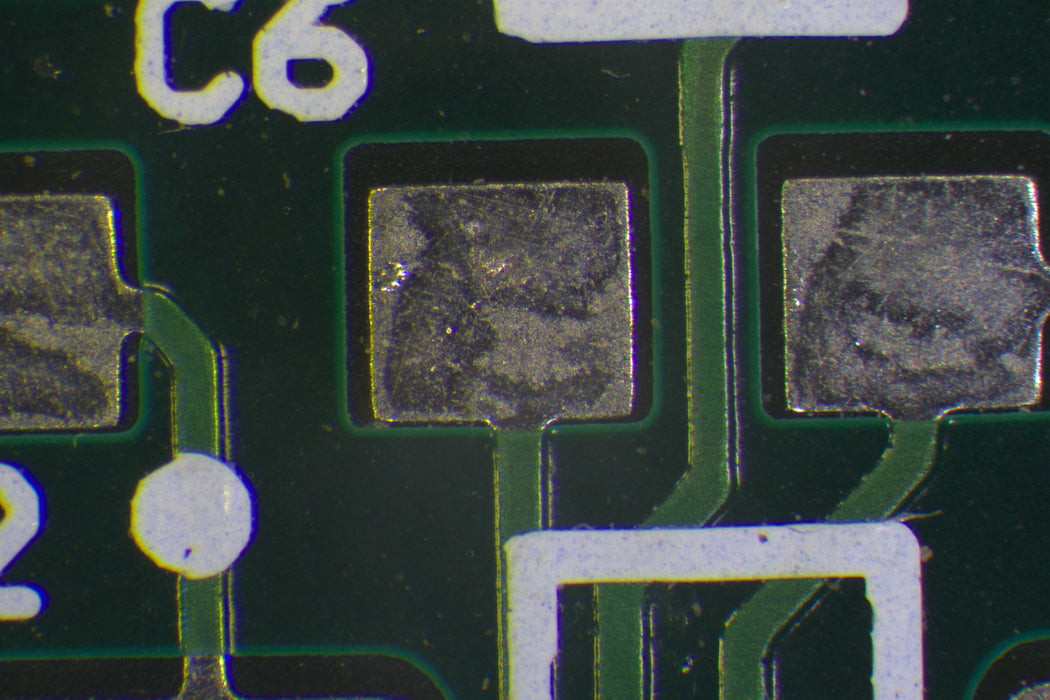

Uses a Sony 6 megapixel CMOS 1/1.8" sensor-IMX178, with 2.4 x 2.4 μm pixels. The resolution of the captured image can reach 3072 x 2048. Images taken at low magnification readily resolved.

USB 3.0 high-speed transmission interface

Simple and convenient while ensuring a stable High transmission rate which allows fast focusing at high resolution. Imaging can be performed at a rate of 40 fps.

Real-time image stitching & Measurement Software

MIchrome 6 is equipped with Tucsens new computational imaging software, Mosaic 2.0, which provides a "real-time image stitching" function. It can generate large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!
From the user's point of view, redefining the image acquisition - editing - measurement - report output workflow process, taking into account the best operating procedures, greatly saves the operating time, effectively improving productivity.

Specifications:

  • Sensor Model: IMX178LQJ-C
  • Sensor Type: CMOS
  • Sensor Size: 1/1.8"
  • Color/Mono: Color
  • Pixel Size: 2.4x2.4(μm)
  • Resolution: 3072(H) x 2048(V)
  • Frame: 41fps(3072x2048):41fps(1536x1024 2x2bin)
  • Shutter Mode: Rolling
  • Exposure Time: 0.13ms-15s
  • Automatic Set: Exposure, Color Scale, White Balance
  • Manually Set: Exposure, Gain, Noise Reduction, Gamma,Flat Field Correction
  • Color Temperature: 2000-15000K
  • PC Software: Mosaic V 2.0
  • Picture Format: JPG / PNG / TIFF
  • Operating System: Windows is supported and Linux/Mac is under development
  • PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more, OS: Windows 7/8/10 64bit
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • Data Interface: USB3.0
  • Optical Interface: Standard C Mount
  • Camera Size: 68x68x46mm
  • Camera Weight: 330g
