Optico XSZ-107T-PHA Phase Contrast Microscope (ACHROMATIC Objectives)

by Optico

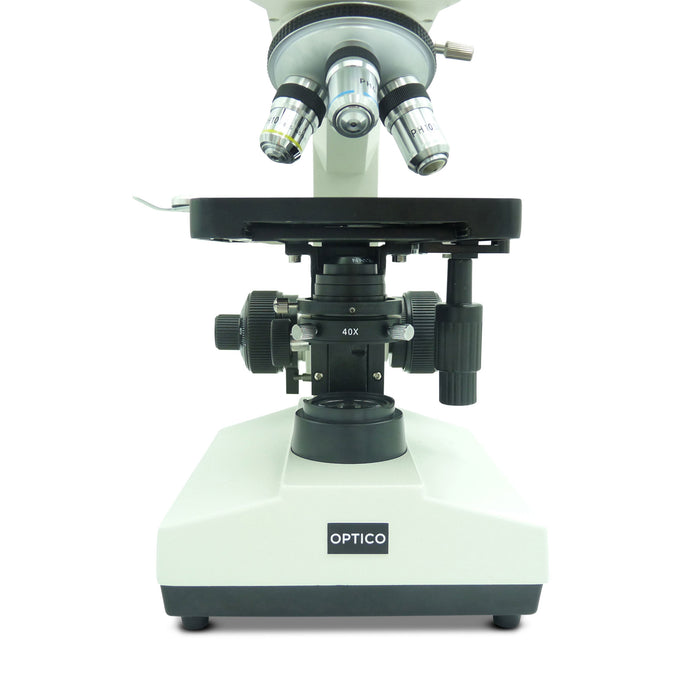

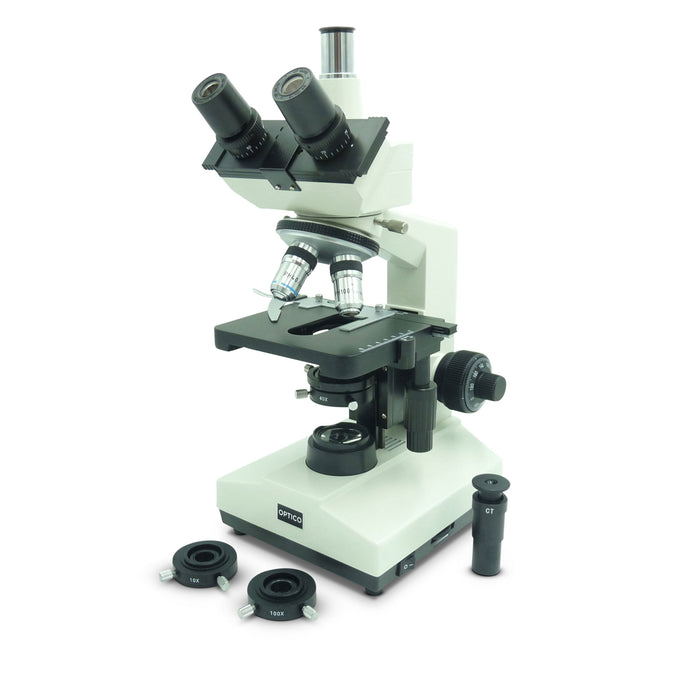

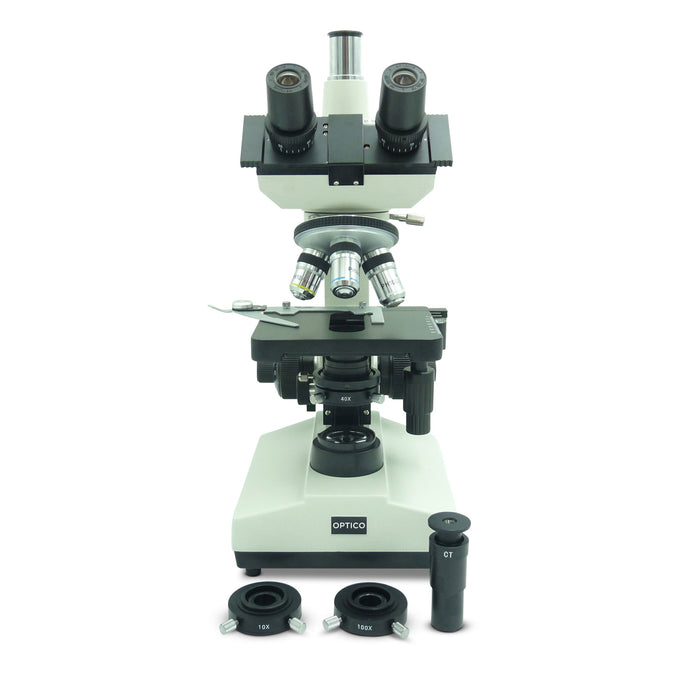

The XSZ-107T-PHA Simple Phase Contrast Microscope with Achromatic Objectives offers good performance and a rich array of the most-used features all in an economical package.

Combining our popular XSZ-107T Trinocular Biological Microscope with the Optico ACHROMATIC Phase Contrast Kit with simple Achromatic Objectives it improves the imaging of transparent and colourless specimens, which are difficult to see or invisible when using an regular bright field microscope specially for observing living cells, microorganisms, bacteria, molds and sperm. Aluminium Carrycase now available as an optional accessory


  • Viewing Head: Sliding Trinocular Head at 45°
  • Eyepieces: Wide Field Eyepiece WF10×/18
  • Nosepiece: Quadruple Nosepiece
  • Stage: Double Layers Mechanical Stage 140X140mm/ 75X50mm
  • Focusing System: Coaxial Coarse and Fine Adjustment
  • Illumination: LED, Brightness Adjustable

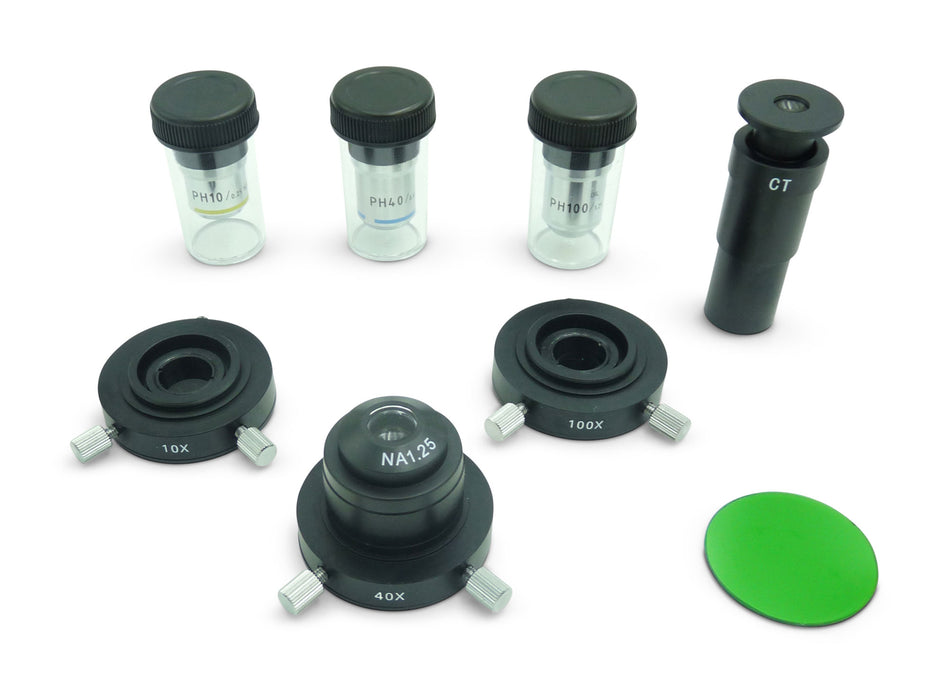

  • Phase Contrast Kit:
    • 10X phase contrast objective: Achromatic PH10/0.25, 160/0.17 (with phase plate)
    • 40X phase contrast objective: Achromatic PH40/0.65, 160/0.17 (with phase plate)
    • 100X phase contrast objective: Achromatic PH100/1.25, 160/0.17, Oil (with phase plate)
    • Condenser: NA1.25 ( 37mm mounting size)
    • 10X condenser annular plate
    • 40X condenser annular plate
    • 100X condenser annular plate
    • One green filter
    • Centering telescopic eyepiece 23mm

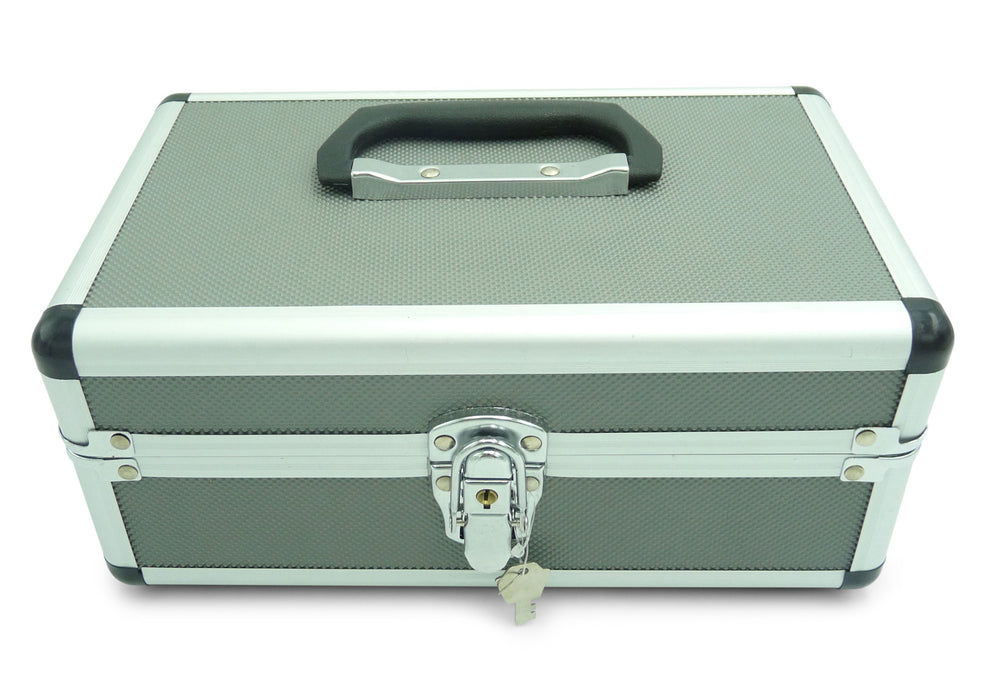

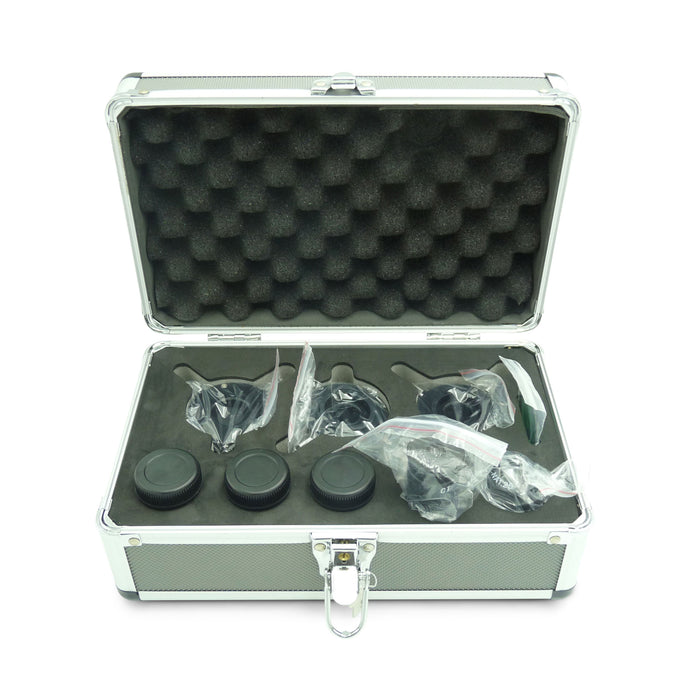

    • Aluminium storage case
