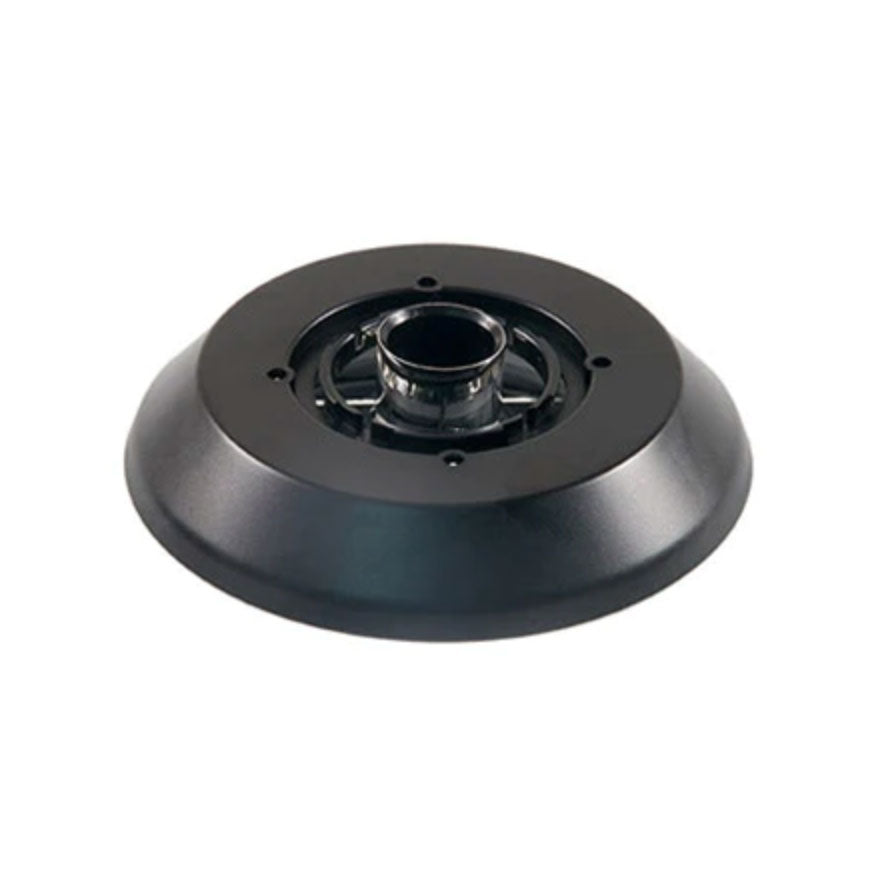

N3C-R (Ring Light Cap)

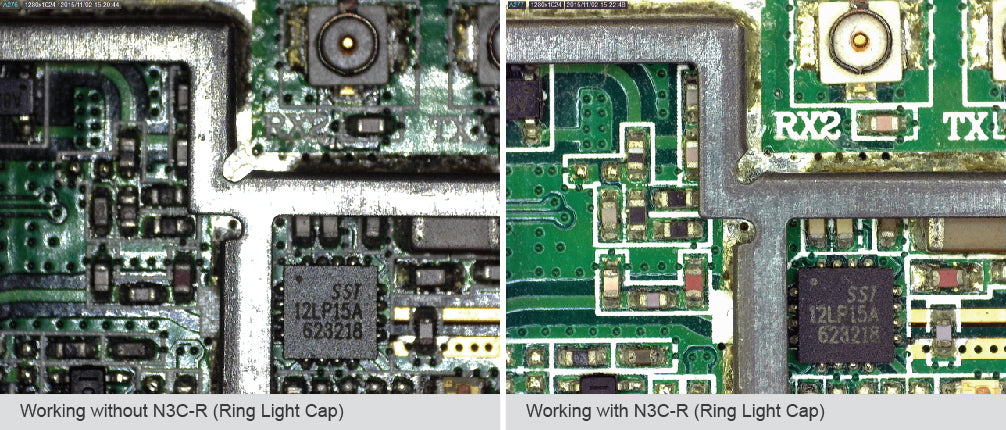

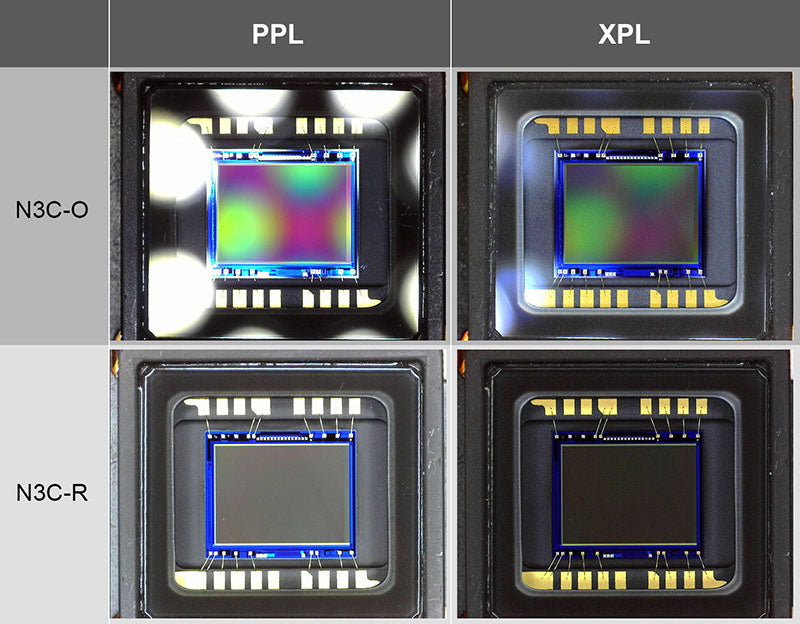

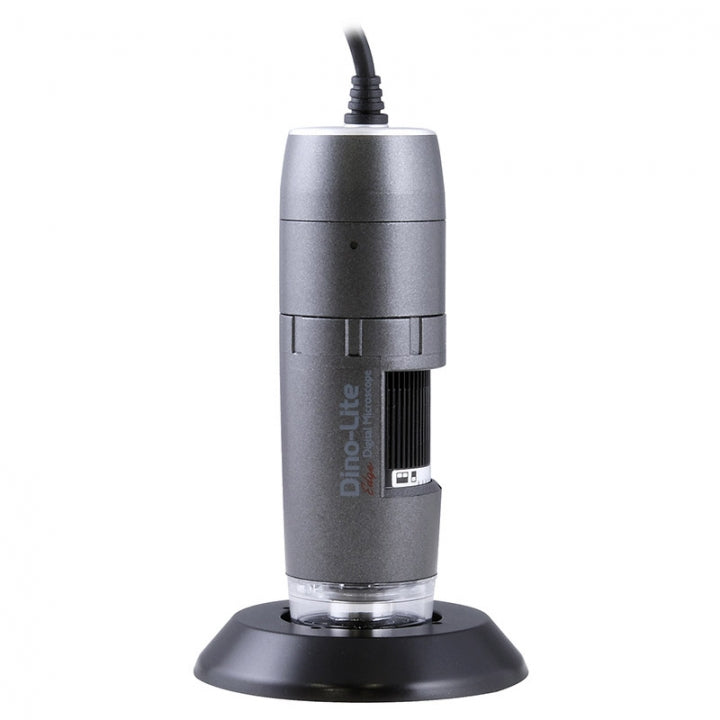

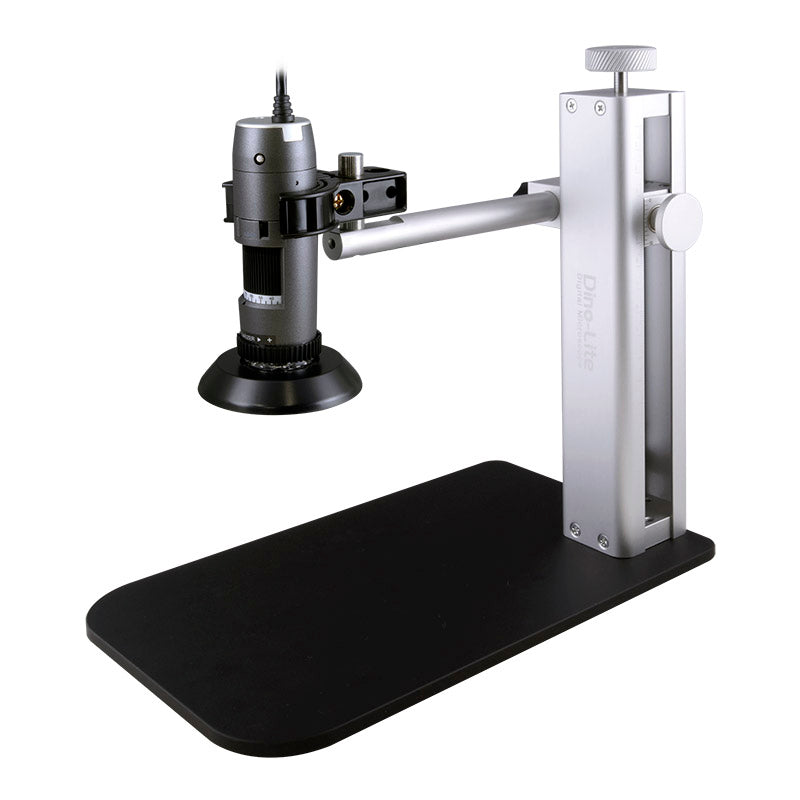

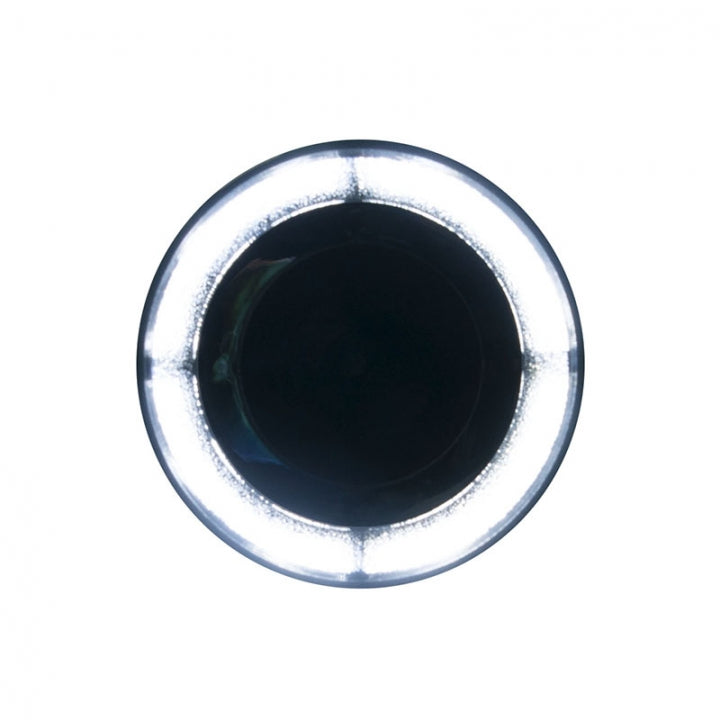

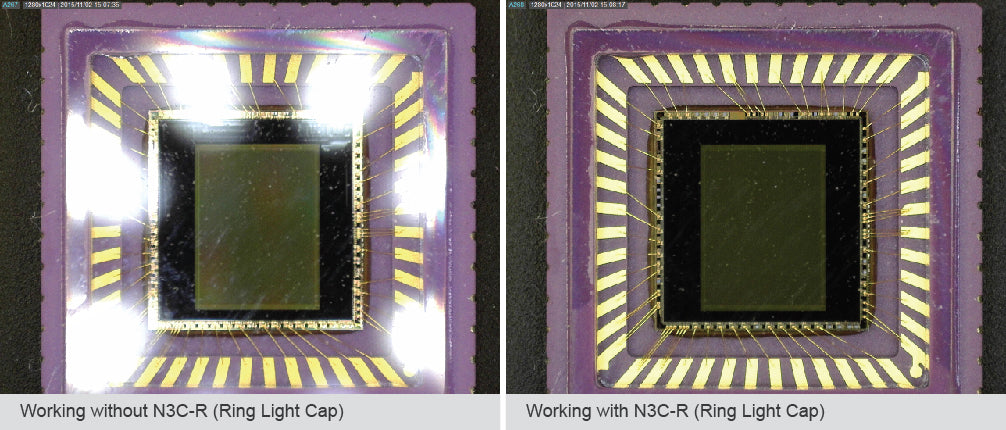

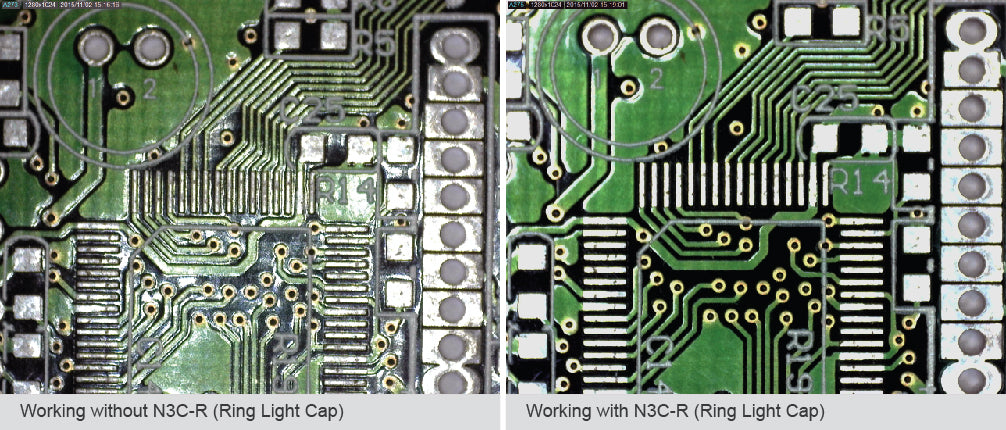

In most macro observation, a ring light may help to reveal more details by generating shadow-less illumination. Working seamlessly with the Dino-Lite Edge series, the N3C-R front cap is a unique and the simplest solution designed to provide ring illumination for a microscope. The 6.5 cm (2.5 inch) diameter N3C-R fully utilizes the Dino-Lite’s built-in LEDs by redirecting it to form a focused, diffused, and uniform ring-light. For polarizer model such as AM4115ZT, the polarizer can still be used for suppressing the unwanted glare or reflection when using with N3C-R. Without the clutter of mounting and powering an external ring light, thus no heat and noticeable weight been added, the clip-on N3C-R economically provides alternative illumination and adds more flexibility to Dino-Lite’s applications.
Note: The N3C-R has best working distance in the range of about 2 to 15 cm. It may not be suitable for short working distance operation, and is not compatible with high magnification models such as AM4515T5 or AM4515T8.
|Model||N3C-R Ring Light Cap|
|Compatible Dino-Lite Models||Dino-Lite Edge LWD models (TL, ZTL)|
|Unit Dimension||15.5 mm (H) x 65 mm (D)|
|Materials||Polycarbonate with sputtered aluminum coated|
|Unit Weight||approx. 8 g|
