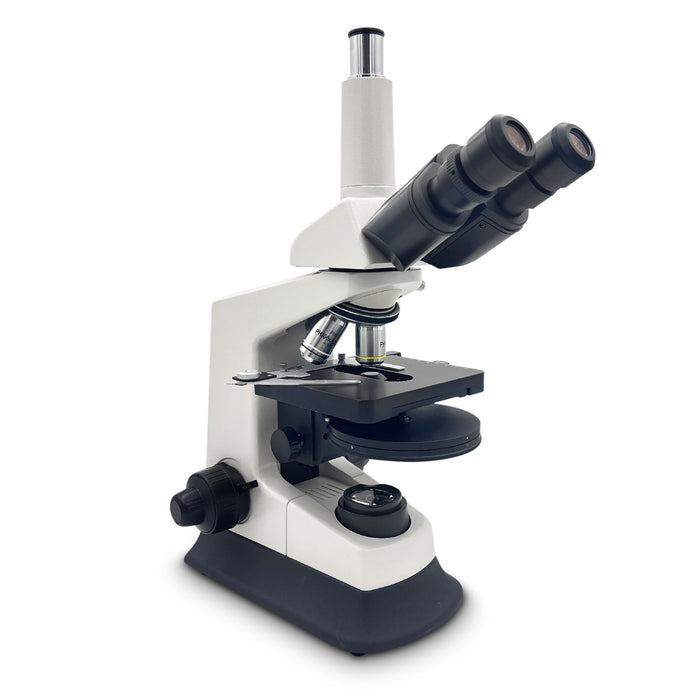

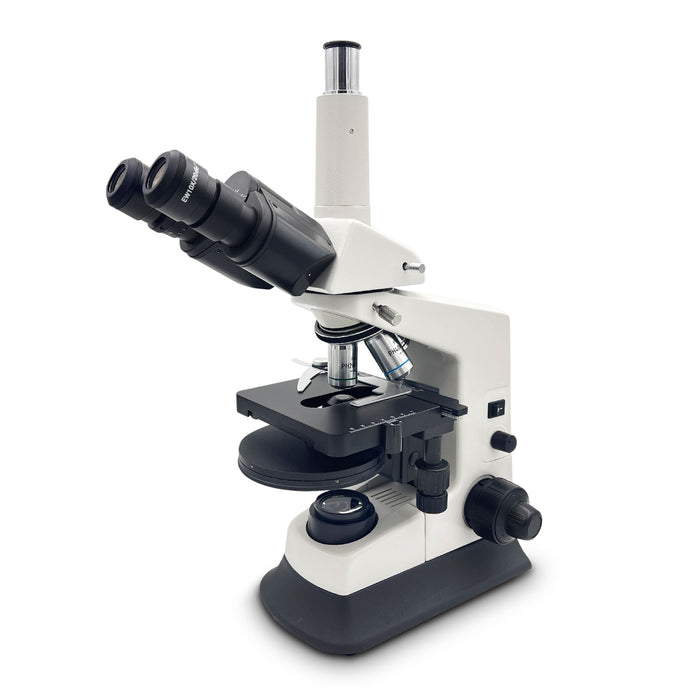

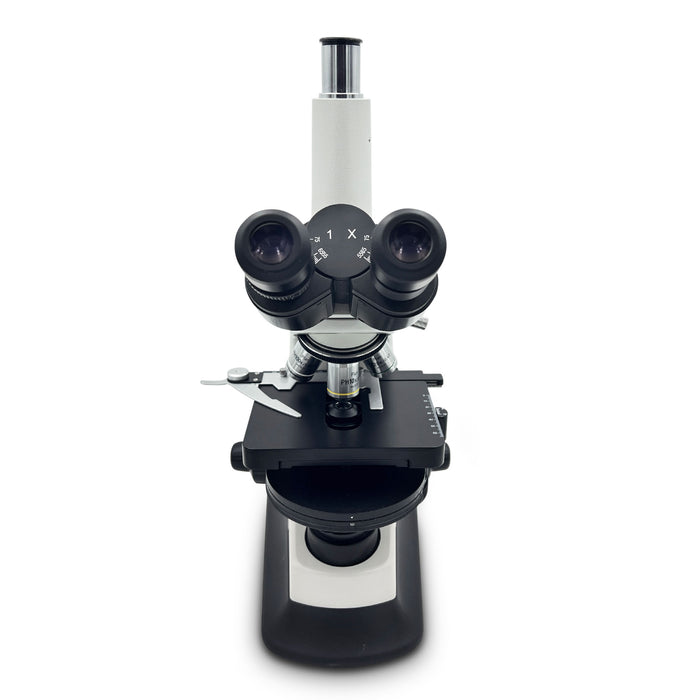

Optico N180MT-PH Phase Contrast Microscope (Infinity PLAN Objectives)

Optico N180MT-PH Trinocular Microscope Including Infinity Plan Turret Phase Contrast Kit

• Optico N180MT Microscope and turret phase contrast kit with easy-to-use phase annulus adjustment
• Recommended for wastewater treatment plant

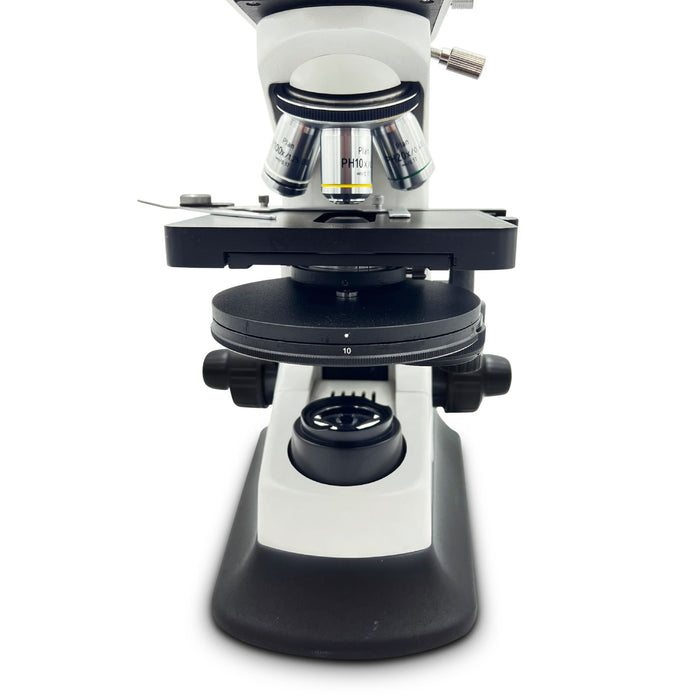

• Phase contrast turret iris diaphragm condenser
• Centering telescope lens to fit 23 mm internal diameter eyetubes
• 4-phase contrast infinity plan objectives, 10x, 20x, 40x, and 100x OIL
• Mounting size of condenser: 37 mm in diameter

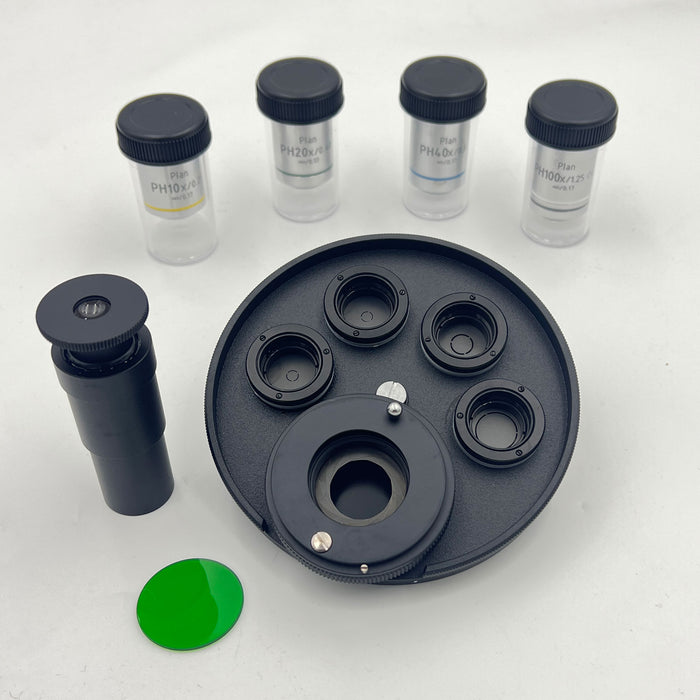

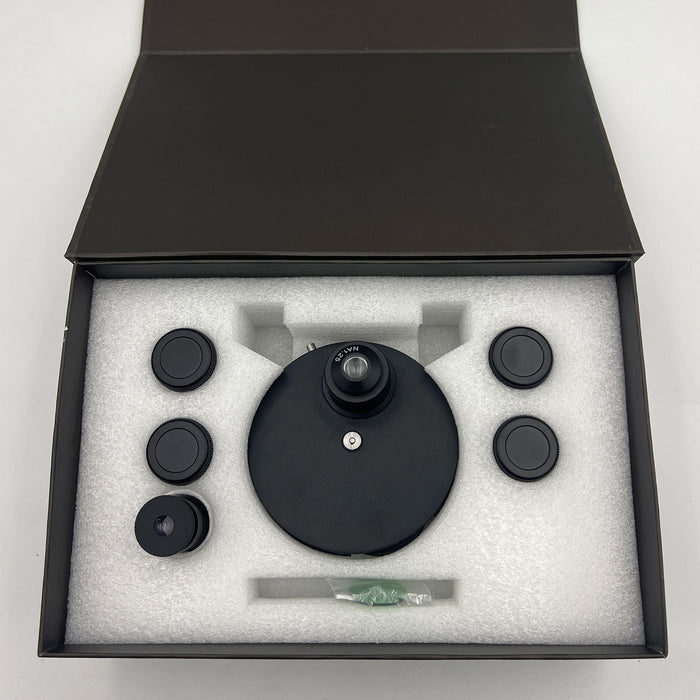

Turret Phase Contrast Kit comprising of:

• Phase Condenser with 4-position phase rings, 10X, 20X, 40X & 100X Oil Infinity Plan Achromatic Phase Objectives.
• The condenser of this kit replaces the standard condenser on your microscope, and the phase objectives should be used with the appropriate phase ring.
• Once the condenser is properly aligned using the centreing telescope (mounted as a temporary eyepiece), this kit will provide you with a phase contrast image of your specimens.

Specifications:

• Phase Contrast type: Turret.
• Infinity Objectives: PH10x/0.25, PH40x/0.6, PH100x/1.25 OIL
• Condenser: NA 1.25. Mounting Size: 37 mm (in diameter).
• Centering Telescope Lens: To fit 23 mm eyetubes.
• Viewing Head: Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75 mm
• Eyepieces: WF10×/20
• Nosepiece: Backward Quadruple Nosepiece
• Focusing: Coaxial Coarse & Fine Adjustment
• Stage: Rectangular 216×150mm
• Condenser: Abbe Condenser NA1.25 with Aperture Diaphragm
• Illumination: LED Illumination System
• Dust Cover
