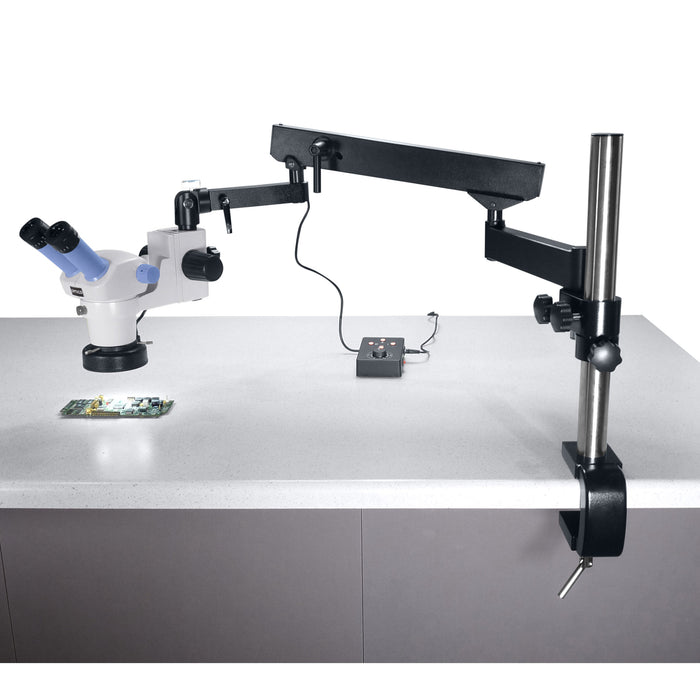

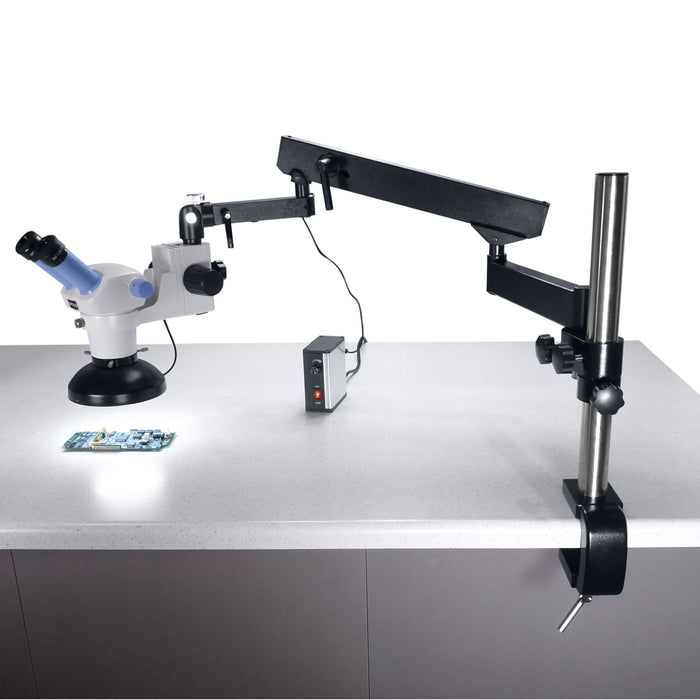

Stereo Microscope with High Articulating Arm

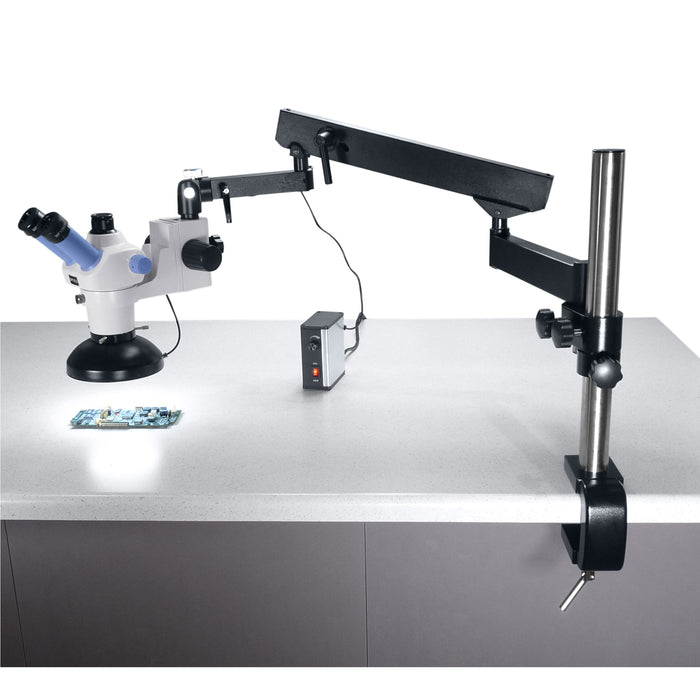

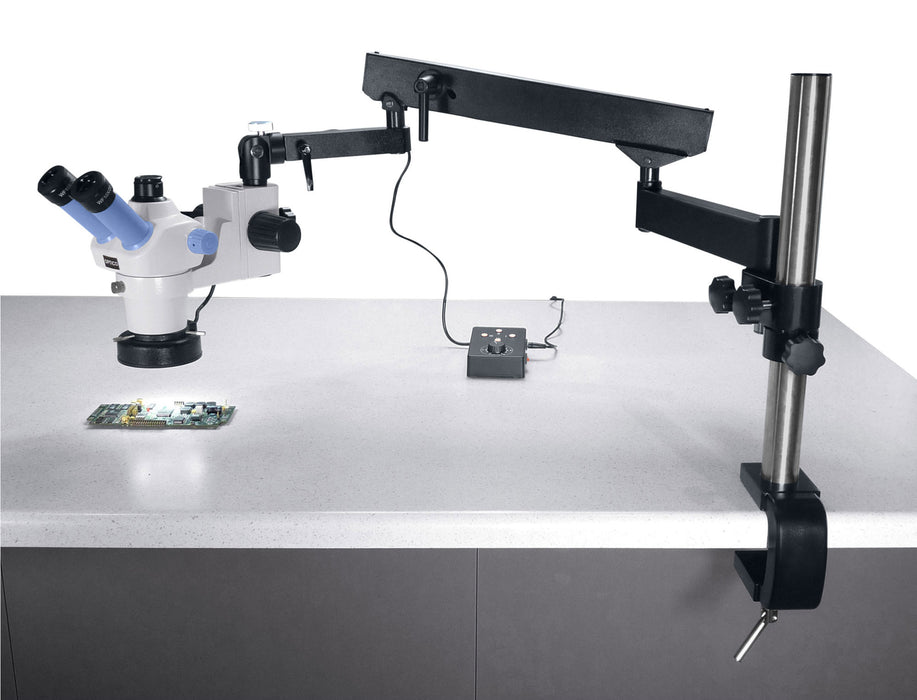

Stereo Microscope with Long & High Reach Articulated Arm Stand

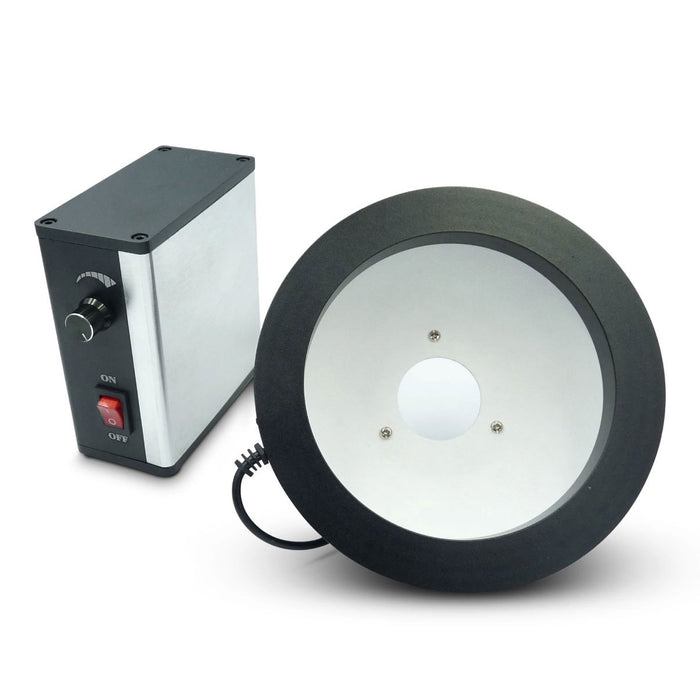

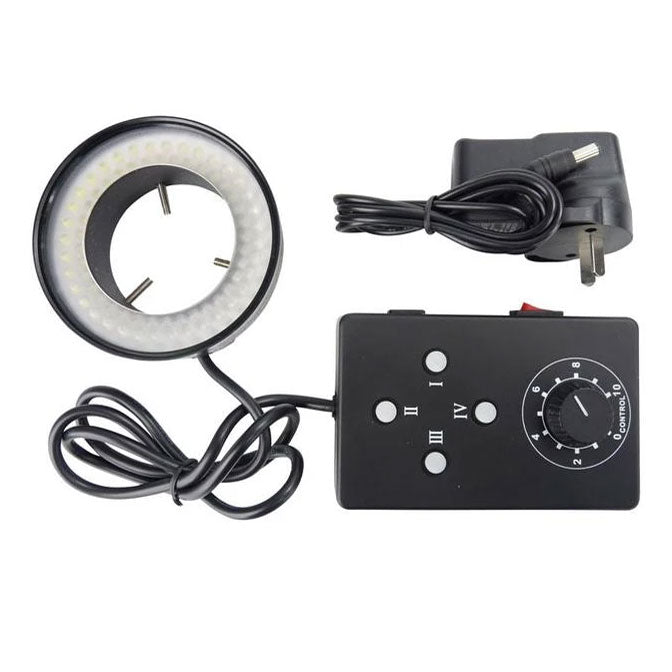

This high quality desk mountable microscope with a strong table G-Clamp mount is both lighter in weight than most other stands of its type leaving the bench area clear immediately under the stand. It is designed for looking at large specimens or specimens that need to moved significantly. Available in either a binocular head or trinocular head configuration (if using an optional digital camera) choose either of the following LED light sources:
Specifications:

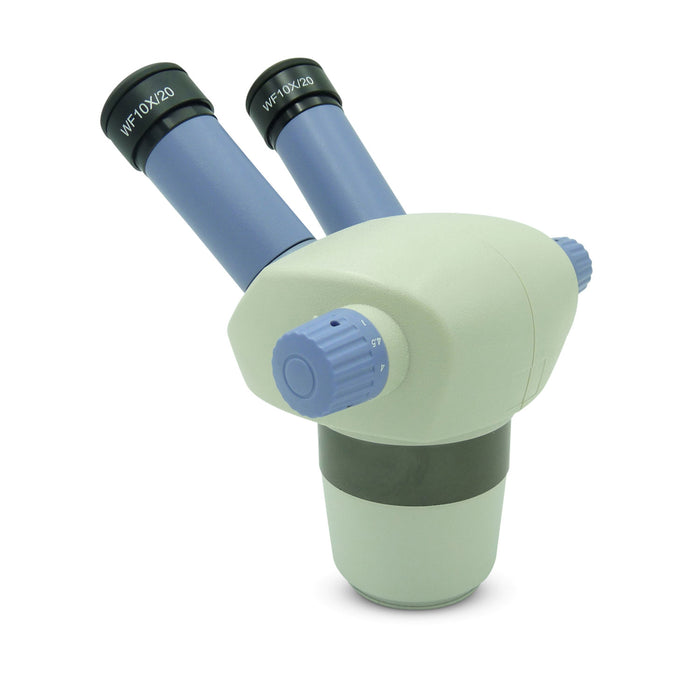

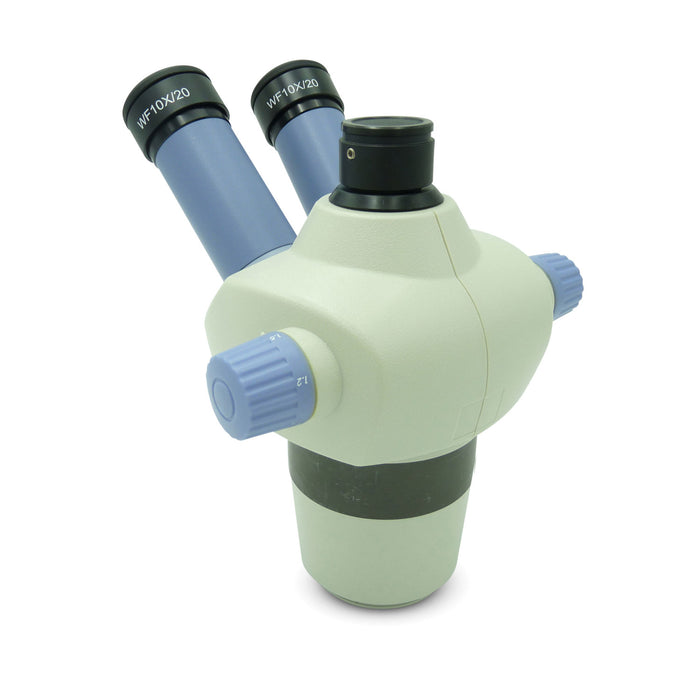

ASZ400 Stereo Zooming Optical Head
- Binocular or Trinocular head option with interpupillary adjustment
- Sealed body protects precision optics
- Anti-dust, anti-mold, anti-electrostatic construction
- Wide-field 10x eyepieces WF10X/20 with diopter adjustment
- 20mm field of view at 10x magnification
- Magnification range 10x-45x, continuous
- Focusing distance from bottom of lens to stage plate 100mm

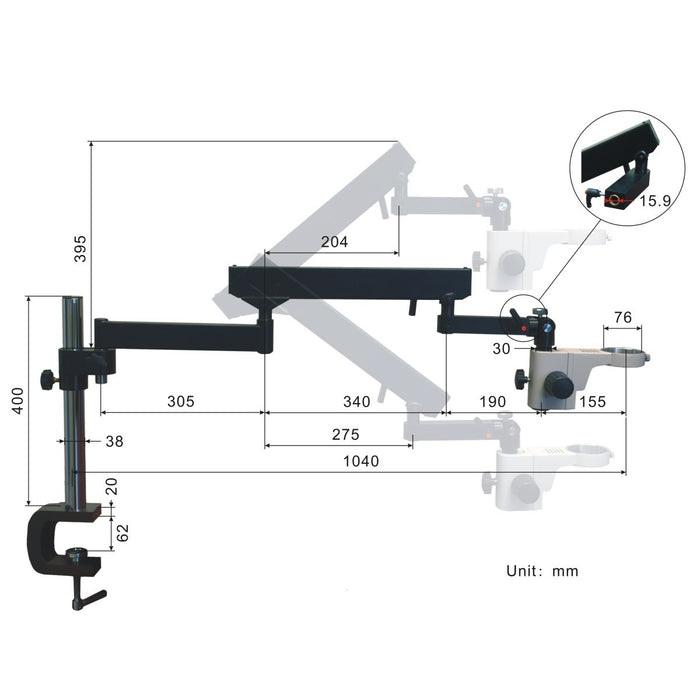

Articulating Arm Boom Stand with Vertical Post and Table Clamp

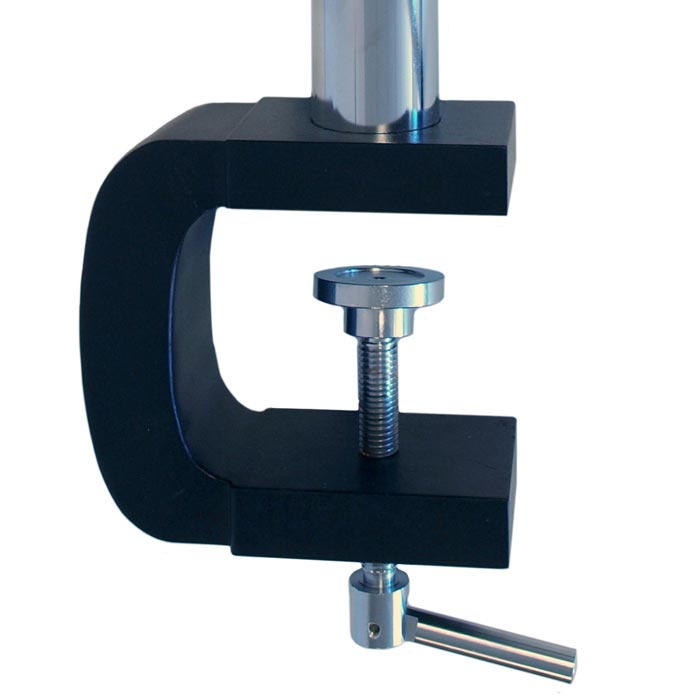

- Table clamp: maximum opening 62 mm

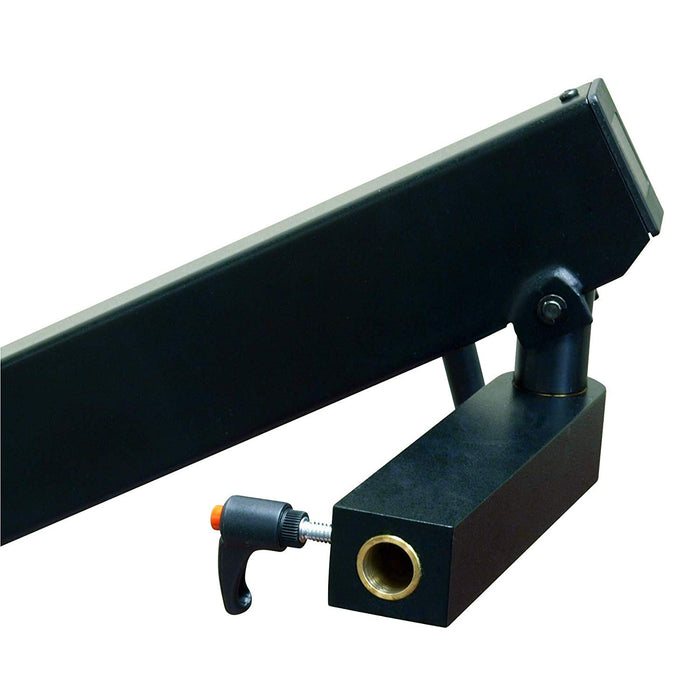

- Spring loaded articulating arm for easy raising and lowering
- 3 articulation points
- Extremely stable even at maximum extension
- 76mm microscope holder with course and fine focusing
- 360° horizontal rotation
- Radius of working area: Maximum 104 cm

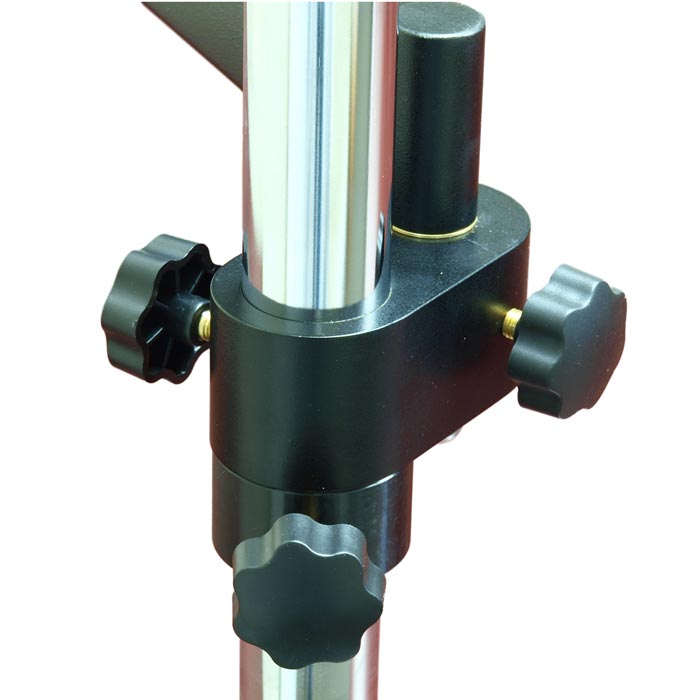

- Focus block: rack and pinion focus adjustment 55 mm
- Diameter of post for focus block 30mm
- Unobstructed bench area

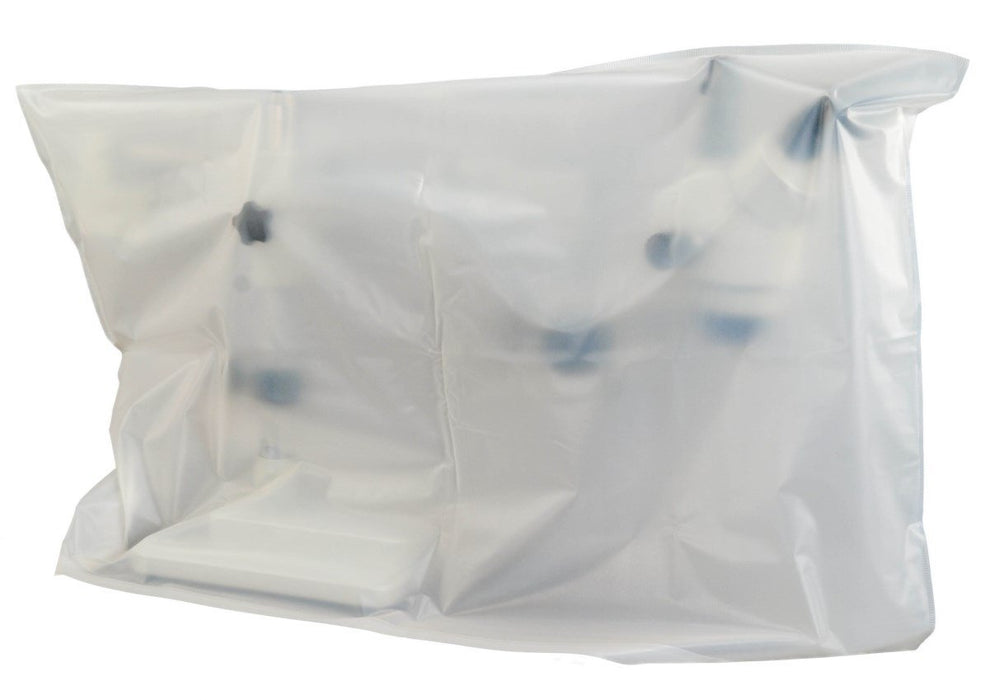

- Dust cover included
Optional Accessories:
- 2x Barlow Lens Doubles magnification to 20x-90x
- 0.5x Barlow Lens Doubles Depth of Field & Working Distance
- WF20X/12 Eyepieces (Pair) Doubles magnification to 20x-90x
