ToupTek Eyepiece Tube C-Mount Adapter
ToupTek Eyepiece Tube C-Mount Adapter with Fine Focusing Adjustment

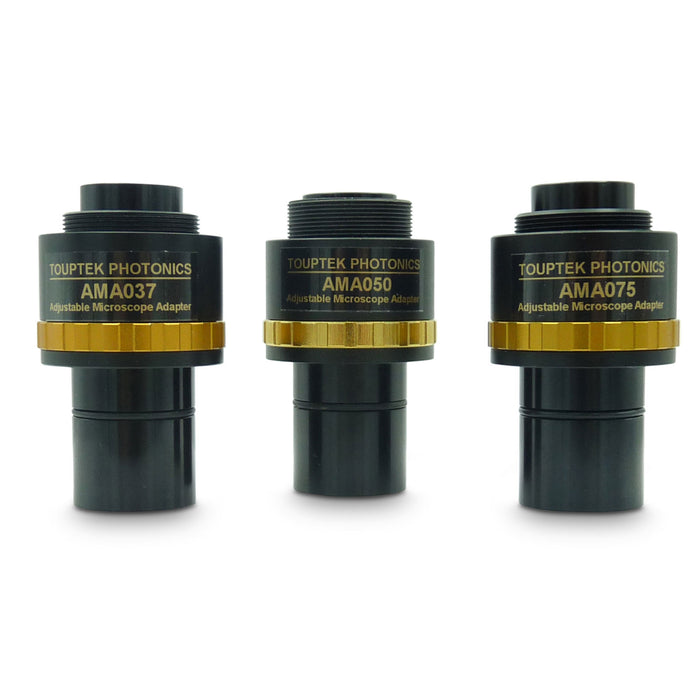

Available in 3 sizes:
- 0.37X Adjustable
- 0.5X Adjustable
- 0.75X Adjustable
Eyepiece Tube C-Mount Adapters allow you to attach any c-mount camera to most types of microscope, please contact us for assistance in choosing the correct size for your microscope and camera combination.
Rotating of the focusing ring allows the optical eyepieces on your microscope to be par-focal with your digital camera, having the benefit that the microscope eyepieces are in focus with the image projected onto your computer screen.
Fits into any c-mount camera at one end and can be inserted into any eyepiece tube or phototube on your microscope with an internal diameter of 23.2mm (this is the most common eyepiece tube diameter found on biological and Compound Microscopes and trinocular heads).

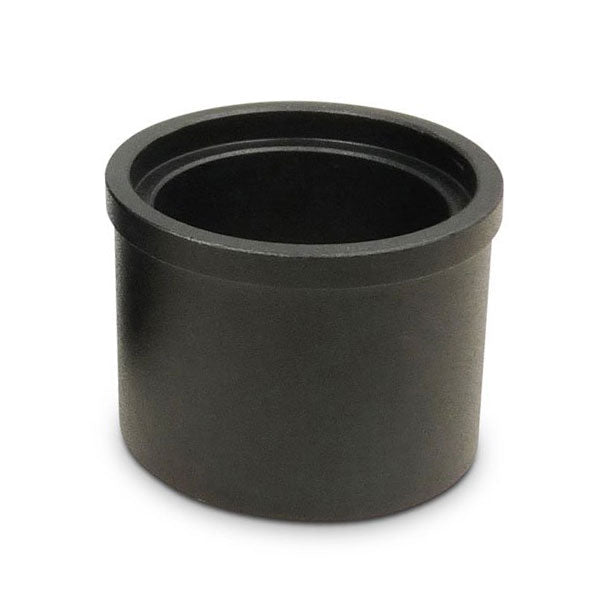

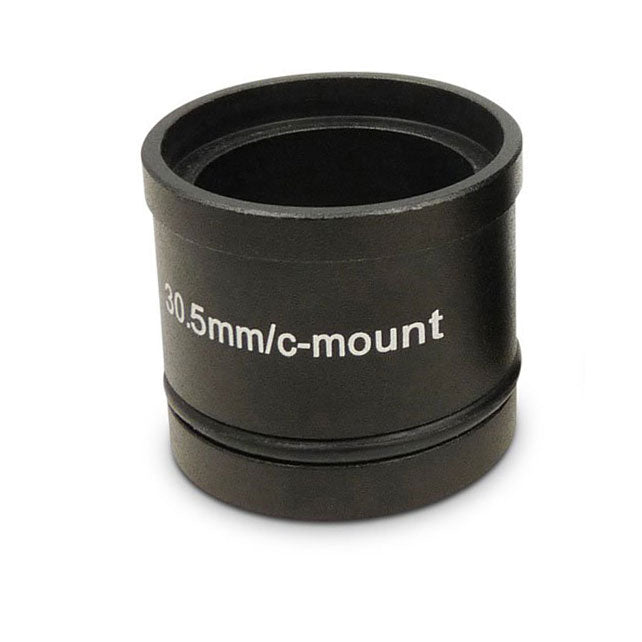

These adapters will also fit the following size tubes with the included tube adapters 30mm, 30.5mm. (If purchasing with one of our microscopes the correct adaptor will be included).

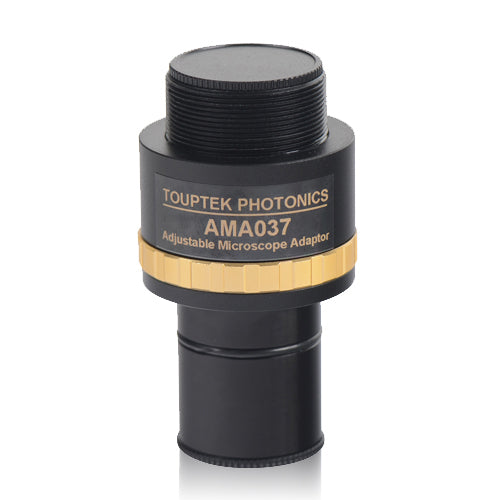

AMA037 Specifications:
- Fit to 1/4"~ 1/3" sensor
- 0.37X magnification
- Manually focusable
- Parfocal with the eyepiece
- C-mount to Dia.23.2mm eye tube

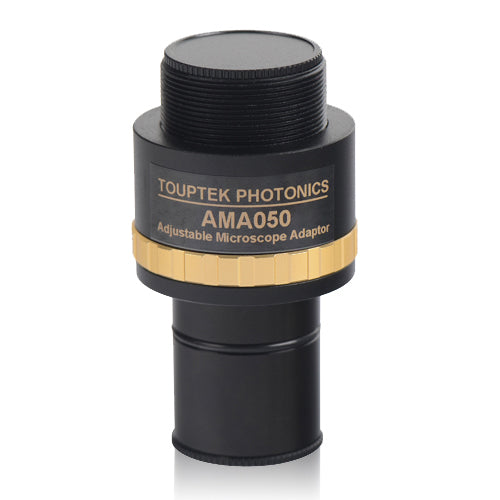

AMA050 Specifications:
- Fit to 1/2"~ 1/3" sensor
- 0.50X magnification
- Manually focusable
- Parfocal with the eyepiece
- C-mount to Dia.23.2mm eye tube

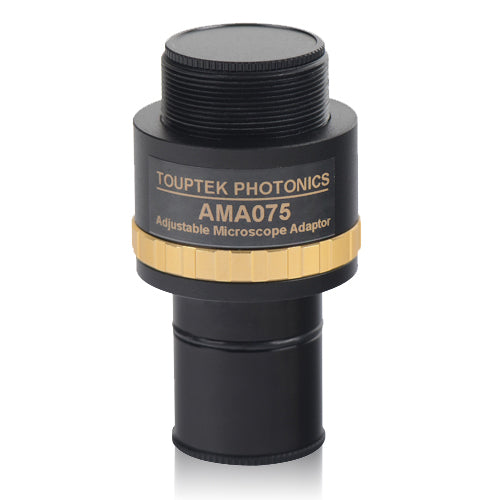

AMA075 Specifications:
- Fit to 1/1.8" ~ 1" sensor
- 0.75X magnification
- Manually focusable
- Parfocal with the eyepiece
- C-mount to Dia.23.2mm eye tube
