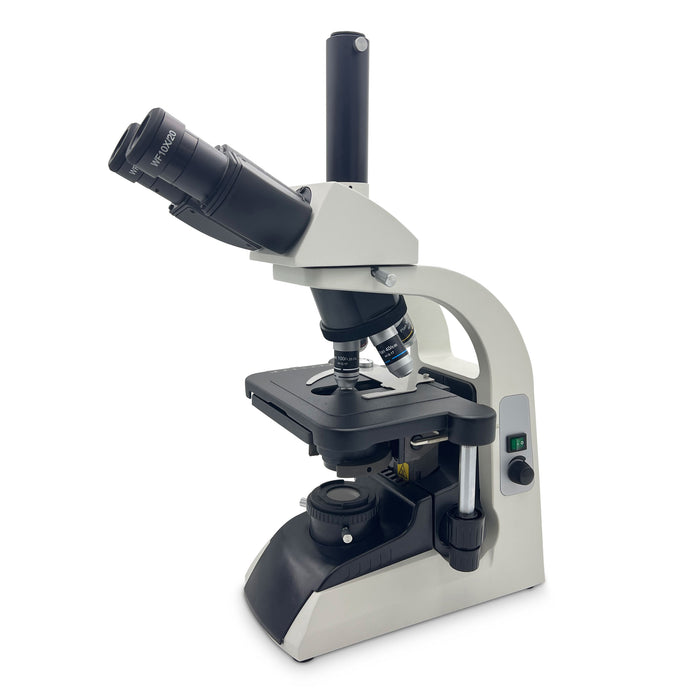

Optico BM2000 Microscope with Koehler Illumination

by Optico
$2,095.00

Optico BM2000 Microscope with with Koehler Illumination & Infinity Plan Objectives

The Optico BM2000 is our flagship microscope having been ergonomically designed specifically for extended use in the laboratory for  biological, histological, pathological, bacteriology, immunisation, and veterinary fields. The included Infinity Plan Objectives produce a flat image across the field of view and perfect clarity.

Based on our popular BM2000 Laboratory Microscope this model comes with Koehler Illumination System, read our blog for more information.

All controls are easily accessible and comfortable when used for extended periods of observation. The new 3W LED-LUX illumination system is the best solution to provide pure intense white light even using the higher magnification objectives.

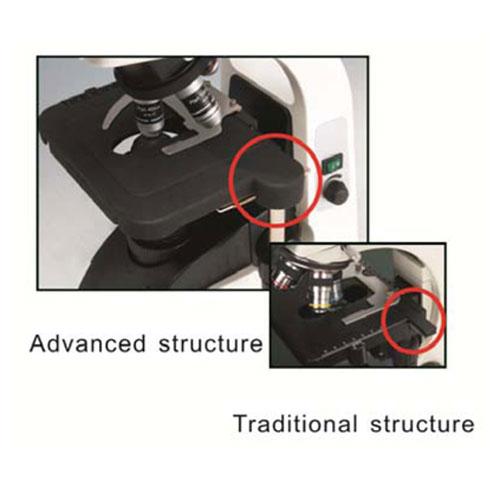

A unique feature of the BM2000 is the advanced XY stage design to ensure all the moving parts are concealed within the stage plate, as shown.

How to setup Koehler Illumination Guide

Specification:

  • Optical System: Infinity Plan Achromatic Objective 4×, 10×, 40×, 100x OIL
  • Viewing Head: Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm
  • Eyepieces: WF10×/20
  • Nosepiece: Backward Quadruple Nosepiece
  • Focusing: Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm
  • Stage: Rectangular 216×150mm, Cross Travel 78×54mm, Using Low-positioned X/Y Coaxial Control Knob.
  • Condenser: Abbe Condenser NA1.25 with Aperture Diaphragm
  • Illumination: 3W LED Koehler Illumination System
